OUTSIDE CORNER - BY 5324 Silver Aluminum Channel + Milky Diffuser - 94"

SKU: BY-5324-AL-8-M-S

$61.86

Product Details

The BY 5324 channel is to be recessed along the outside corner of two walls and designed to create an illuminated straight outside corner using an LED strip light. Each piece is 94” long and has a silver color finish.

Want to try our product sample >>Click here!

Note: LED strip light not included. The LED channels are designed for indoor use. If used outdoors, they are not waterproof. Make sure the LED strip you choose is rated for outdoor use.

Specifications

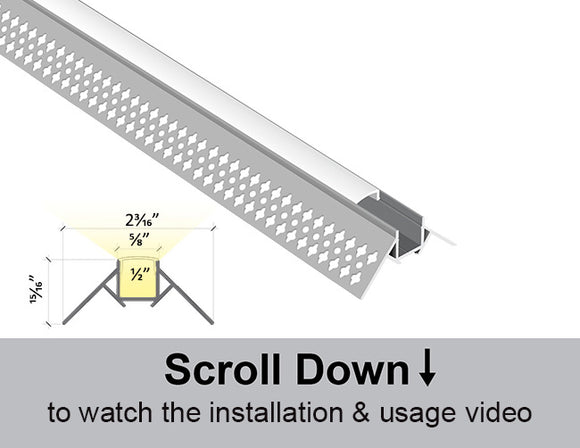

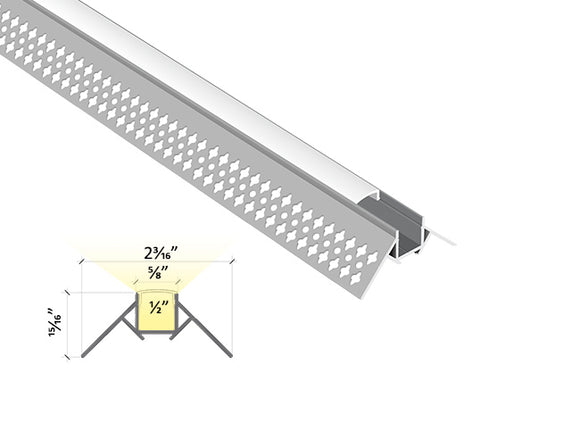

Dimension

L L 94", W 2 3/16", H 15/16"

Internal width

1/2"

Material

Anodized Aluminum

Finish

Silver aluminum and milky diffuser

Diffuser

Milky

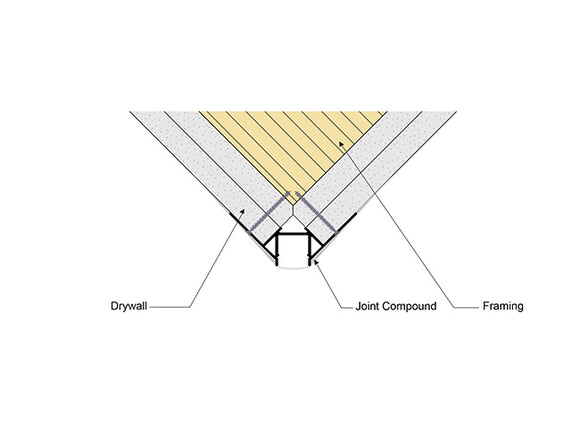

Installation

Recessed Mount

Application

Indoor

Length

94 in



Documents

Aluminum Channel Specification - OUTSIDE CORNER BY 5324

View Accessories

Why You Should Use Aluminum LED Strip Channels

Whether enhancing residential lighting or planning a commercial installation, aluminum LED profiles offer a practical solution. Here’s how they can add value to your project:

·Aesthetics
They transform exposed LED strips into sleek, integrated design elements that elevate the overall look of any space.

·Soft and Balanced Lighting
With diffuser covers, these channels help distribute light more evenly and eliminate unpleasant brightness or shadowing.

·Heat Reduction
Aluminum’s heat-conductive properties reduce the risk of LED overheating, promoting stability in output.

·Environmental Resistance
Ideal for damp or dusty environments, these channels offer a protective layer that keeps your LEDs secure and functional.

·Adaptability
Cut-to-fit capabilities and multiple mounting options make these channels suitable for cabinetry, signage, architectural accents, and more.

·Long-Term Efficiency
Proper housing for your LED strips means fewer repairs, less downtime, and greater energy efficiency over the life of the system.

·Architectural Mud-In Compatibility
Designed for mud-in applications, these recessed channels disappear into drywall, achieving a high-end, built-in lighting look.

Frequently bought together

LED Strip Light
LED Controller
LED Power Supply
LED Aluminum Channel
All LED Strip Light All LED Controller All LED Transformer All Aluminum Channel

Instruction Video

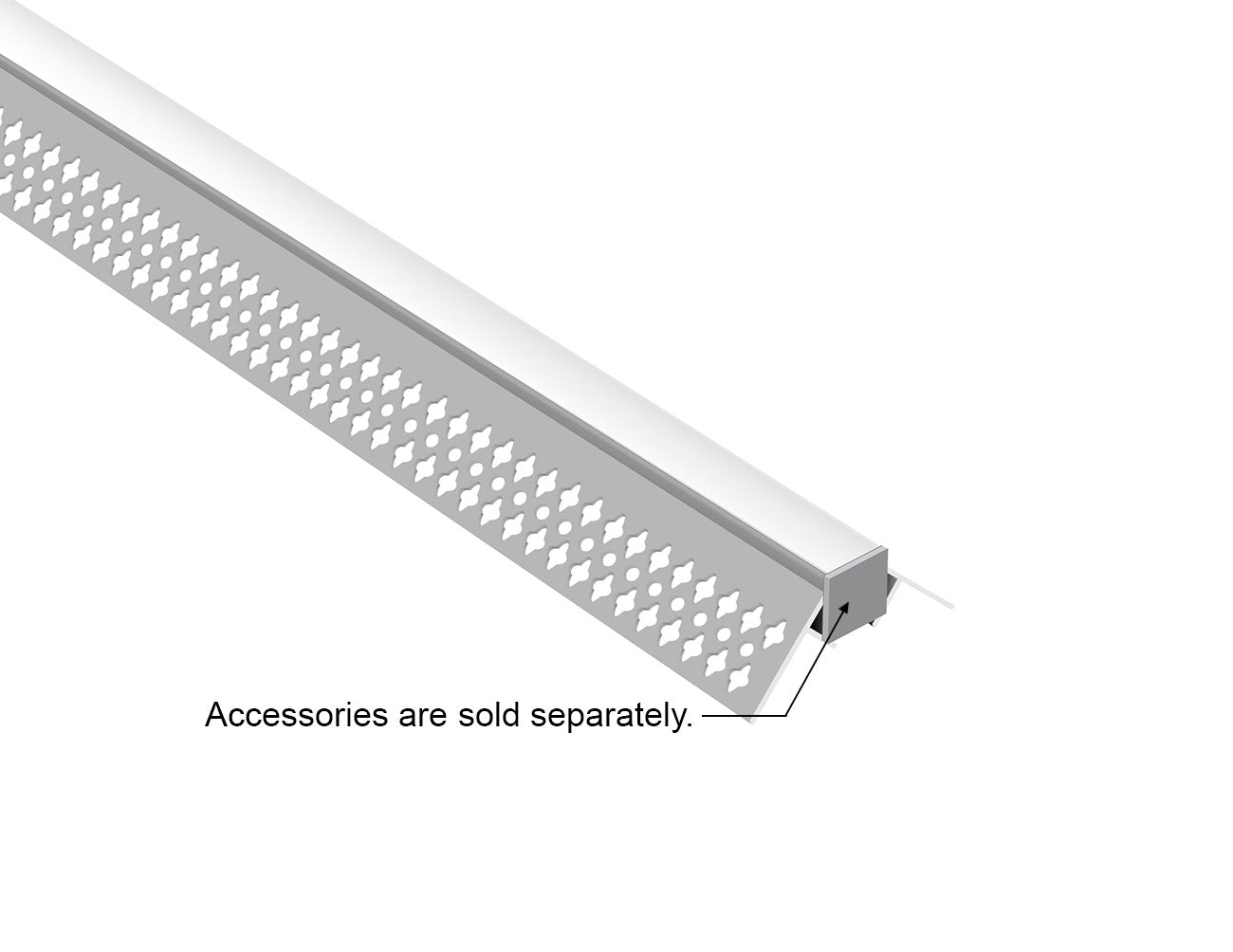

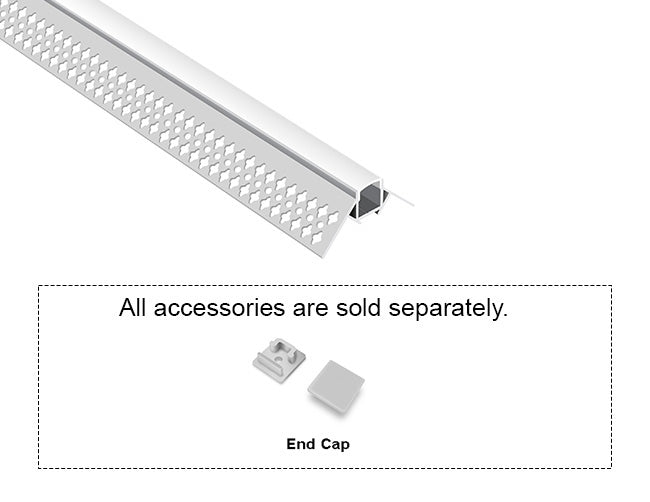

Accessories are available and sold separately

End Caps

Aluminum Channel BY5324 End Cap
