Product Details

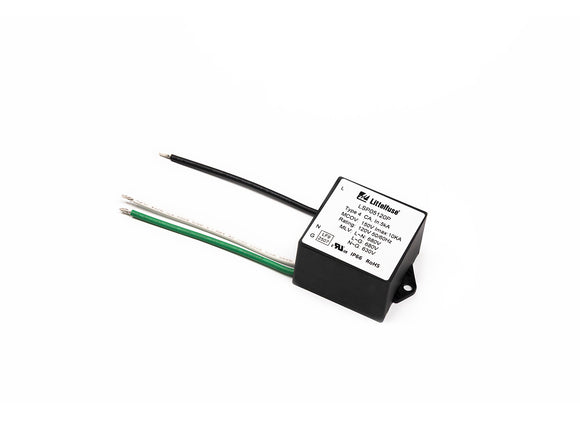

The Littelfuse LSP05 thermally protected Surge Protective Device is a self-protected device which is specially designed to be used in outdoor and commercial LED lighting fixtures for transient overvoltage protection. It is constructed with Littelfuse thermally protected varistor technology. Its built-in thermal disconnect function provides additional protection to prevent catastrophic failure and fire hazard even under the extreme circumstances of varistor end-of-life or sustaining over voltage conditions.
Features
- Maximum Lightning Surge Current: 10,000A.
- Thermally protected varistor technology.
- IP66 water-proof and dust-proof.
- Indication wire options.
- Certified to meet UL1449 Type 4 and compliant with IEC 61643-11 Class II and EN 61643-11 Type 2.
Applications
- Outdoor and commercial LED lighting.
- Roadway lighting.
- Traffic lighting.
- Digital signage.
- Service entrance lighting.
- Parking garage / lot lighting.
- Flood lighting.
- Tunnel lighting.
- Street lighting.
Specifications
| VMAX AC (V) |
120 VAC |
ITM 1xAmps (A) |
10000 |
| Polarity |
Bi-directional |
Lead Form |
Cable Wire |
| Operating Ambient Temperature |
49°F~185°F |
Storage Temperature Range |
-49°F~257°F |
| Insulation Resistance |
>1000 |

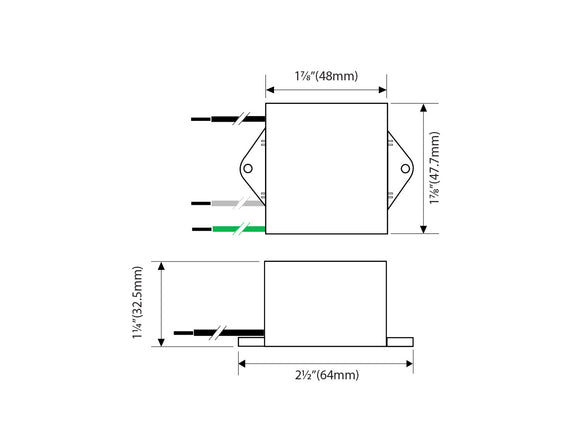

Diameter |
20 |
Documents
Littelfuse LED Protection Devices 120V 5kA
