LiteRex - Integrated Constant Voltage Driver Built-in Dimmer 24V 160W

SKU: GLS-24160-DIM

$307.80

Description

Product Details

The LiteRex Integrated Constant Voltage Driver with Dimming combines a high-quality LED power supply and precision dimming control into one compact unit. Designed for easy installation inside a standard junction box, this innovative driver eliminates the need for separate dimmers or bulky control gear. Delivering smooth, flicker-free 0–100% dimming with high-frequency PWM technology, the LiteRex ensures consistent light output and optimal visual comfort—perfect for both residential and commercial LED lighting projects.

Key Features

  • All-in-One Design – Integrated constant voltage driver and dimmer in one space-saving unit.
  • Flicker-Free Dimming – 16 kHz PWM output for smooth, camera-friendly dimming.
  • Human-Eye Optimized – Gamma 2.2 dimming curve for natural light transitions.

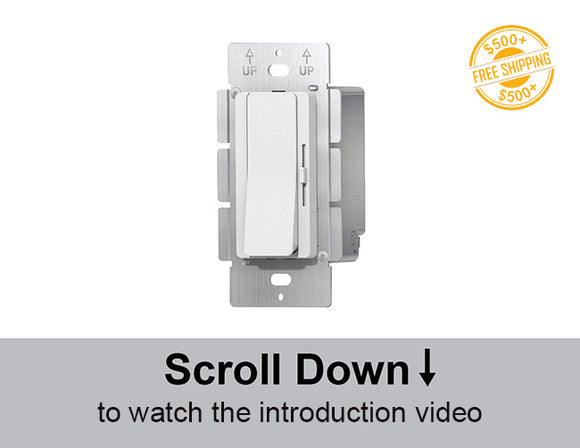

  • Junction Box Compatible – Fits directly into standard electrical boxes for a clean, professional install.
  • 3-Way Switch Support – Works seamlessly with common wiring setups.
  • Built-In Safety – Over-temperature protection and UL certification for reliability and compliance.
  • Maintenance-Free – Long lifespan and robust electronics for dependable performance.

Recommended Applications

  • Under-Cabinet Lighting – Smooth dimming for kitchens, work areas, and displays.
  • Architectural LED Strips – Perfect for coves, recesses, and accent lighting.
  • Retail & Display Lighting – Consistent, flicker-free output for merchandise illumination.
  • Hospitality Spaces – Create ambient or task lighting in hotels, restaurants, and lounges.
  • Residential Remodels – Upgrade existing installations without extra dimmer modules.
  • Studio & Photography Lighting – Camera-safe dimming without visible flicker.

Specifications

Type GLS-12060-DIM GLS-12120-DIM GLS-24096-DIM GLS-24160-DIM
Input VOLTAGE 120VAC 120VAC 120VAC 120VAC
INPUT AC Current (Max.) 0.6A 1.1A 0.9A 1.5A
Output VOLTAGE 12VDC 12VDC 24VDC 24VDC
Output POWER 60W 120W 96W 160W
OUTPUT Current 5A 10A 4A 6.67A
Certificate UL / Class P / SELV / RoHS / Reach
Safety Standards UL8750 CAN
Warranty 5 years warranty
Dimming range 0.3%~100%
Protections Short circuit / Over load / Over temperature
Waterproof performance For dry and damp locations (US)

Documents

LiteRex_-_Integrated_Constant_Voltage_Driver_Built-in_Dimmer_Specification
