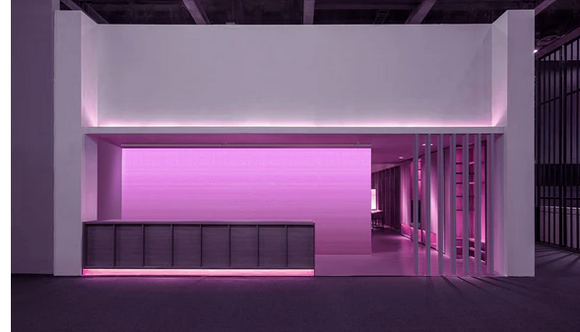

This 24VDC low-voltage LED wall washer is designed for architectural façade, landscape, and accent lighting applications. Constructed with a durable black aluminum housing with an oxidized and spray-painted finish, it provides reliable performance for indoor and outdoor environments. Multiple fixture lengths, beam angles, and light configurations are available to meet different project requirements. RGBW models support DMX512 control for dynamic color and dimming applications. Optional anti-glare grilles, extended mounting brackets, and compatible accessories provide additional flexibility for professional lighting installations.
Note:
All IP66-rated products for wet locations only, cannot be used in water or in places where water might accumulate.
 |
 |
Specification
- Constant power
- Control: DMX512 protocol with 4-channel RGBW control (R, G, B, and W)
- Addressing: Supports synchronized or individual fixture control through programmable DMX starting addresses
- LED Type: SMD 3535 RGBW
- Maximum DMX Signal Run: The total DMX signal cable length from the controller to the last fixture must not exceed 60 m (approx. 197 ft)
- DMX Connection: 5-pin M16 connector with 5-conductor 18 AWG cable
- DMX Termination: M16 terminator with an integrated 120Ω resistor
- Operating / Storage Temperature: -20°C to 60°C (-4°F to 140°F)
- Housing Finish: Black aluminum housing with a durable protective finish

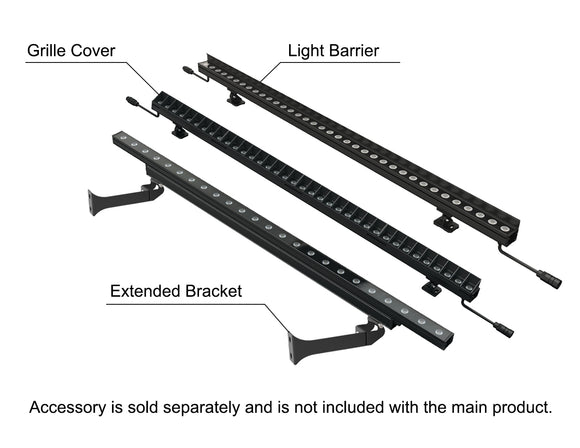

- Optional Accessories: Anti-glare grille, extended mounting bracket set, and compatible connection accessories
- Warranty: Limited 3-year warranty
LED Wall Washer Light W38A Series - RGBW - 24VDC Specification
