Product Details

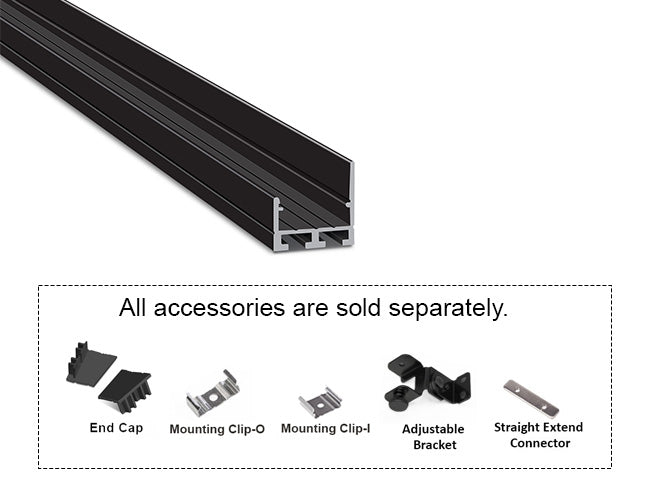

LED Wall Washer Strip Light Accessories -Black Aluminum Channel ES 2321
The ES-2321 Black aluminum channel is a premium-grade extruded anodized aluminum profile designed for LED strip light installations. With an unsymmetrical design—19/32” high on one side and 29/32” on the other—this channel offers versatile mounting options and optimal light direction control.
Key Features: High-Quality Aluminum: Built with durable anodized extruded aluminum, ensuring corrosion resistance and a sleek, modern appearance.
Surface Mount Compatibility: Can be surface mounted directly or using adjustable brackets (sold separately), allowing you to customize the angle of your LED lighting.
Easy Installation: Includes dual grooves on the bottom for seamless channel connections using straight extended connectors (sold separately).
Accessory Support: Compatible with a wide range of accessories including metal clips, mounting clips, and adjustable brackets to streamline installation.
No Diffuser Included: This model is sold without a diffuser
Outdoor Ready with IP65 LED Strip Lights Although the ES-2321 channel is not waterproof (IP20), it is designed to house waterproof LED wall washer lights (IP65), making it suitable for outdoor lighting applications when used with compatible LEDs.
Want to try our product sample >>Click here!
Note: LED strip light not included. The LED channels are designed for indoor use. If used outdoors, they are not waterproof. Make sure the LED strip you choose is rated for outdoor use.
Specifications
Dimension |
L 96", W 15/16", H 29/32" |
Internal width |
13/16" |
Material |
Anodized Aluminum |
Finish |
Black aluminum |
Diffuser |
N/A |
Installation |
Surface Mount |
Application |
Indoor |
Length |
96 in |
Documents
Aluminum Channel Specification - ES 2321
View AccessoriesWhy Use Aluminum LED Channels?
Incorporating aluminum LED profiles into your lighting design delivers a range of performance, aesthetic, and cost-saving benefits. Here's how:
·Architectural Elegance
Sleek aluminum casings offer a clean, finished look by hiding LED tape and messy wiring, seamlessly integrating into modern interior and exterior designs.
·Enhanced Light Diffusion
When paired with opal or frosted diffusers, these channels help create soft, glare-free lighting, improving visual comfort in residential and commercial environments.
·Superior Heat Management
Aluminum naturally acts as a thermal conductor, drawing heat away from LED strips. This helps prevent overheating and extends the LED lifespan, maintaining brightness over time.
·Reliable Protection>
Built to withstand dust, impacts, and light moisture, aluminum channels offer long-term durability, especially when installed in high-traffic or semi-exposed areas.
·Design Flexibility
Available in various shapes and sizes, these profiles can be cut and customized to fit under cabinets, inside coves, along staircases, or on facades.
·Long-Term Savings
By improving heat dissipation and physical protection, LED aluminum channels minimize failures and reduce maintenance, translating to lower operational costs over time.
