3021 LINEAR - ES 3021 Black Aluminum Channel + Clear Diffuser - 94"

SKU: ES-3021-AL-8-C-B

$87.01

Product Details

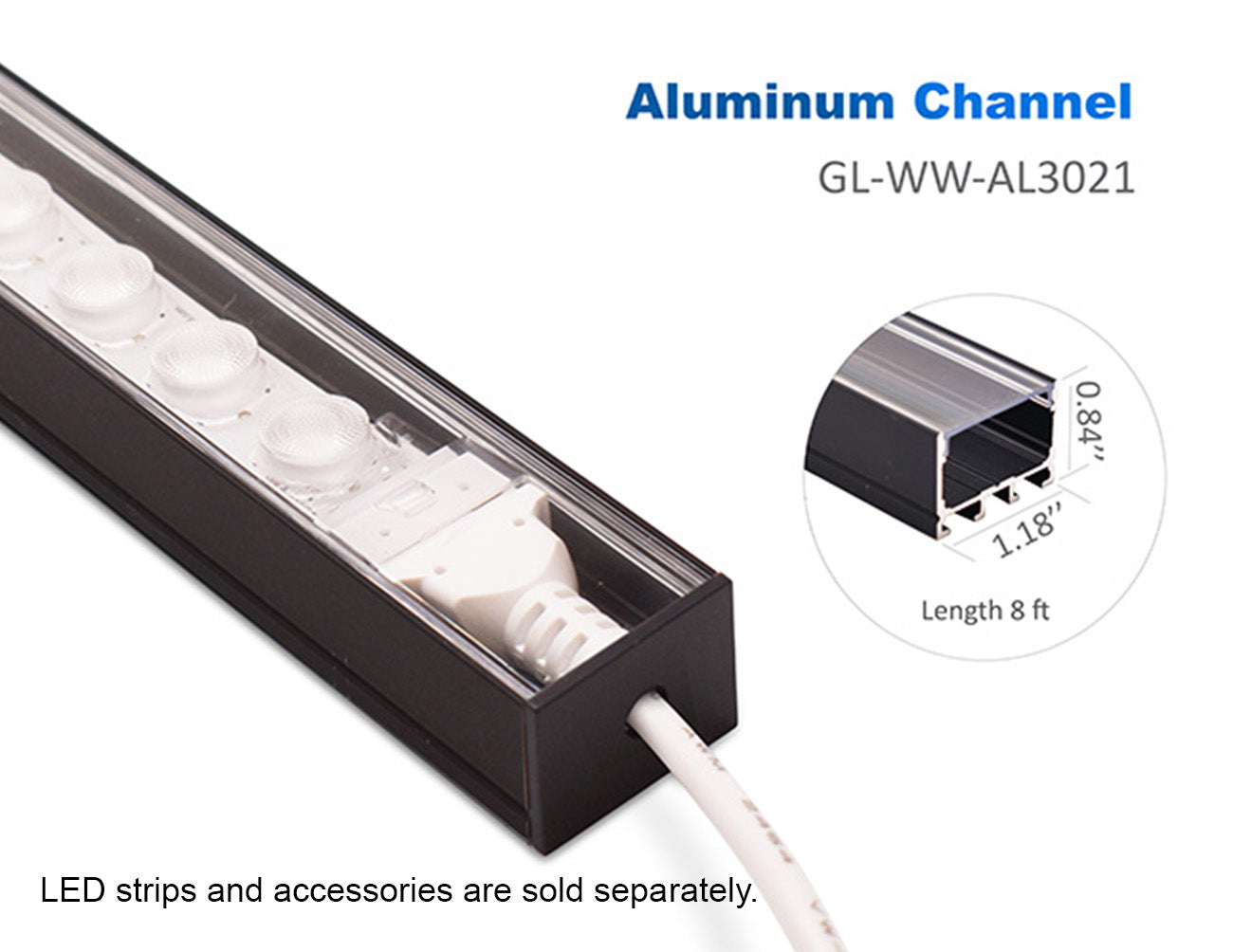

ES 3021 Black Aluminum Channel + Clear Diffuser-LED Wall Washer Strip Light - Aluminum Channel ES 3021 with Inner Clip

ES-3021 is a rectangular shaped channel made of anodized extruded aluminum with a clear diffuser and has a dimension of 1-6/32” in width and 27/32” in height. Each piece is 94” long and has a black color finish, and comes with inner clips to a stabilize compatible wall washer strip light. Three grooves at bottom of each channel help seamless connections of the channels using straight extended connectors (sold separately).

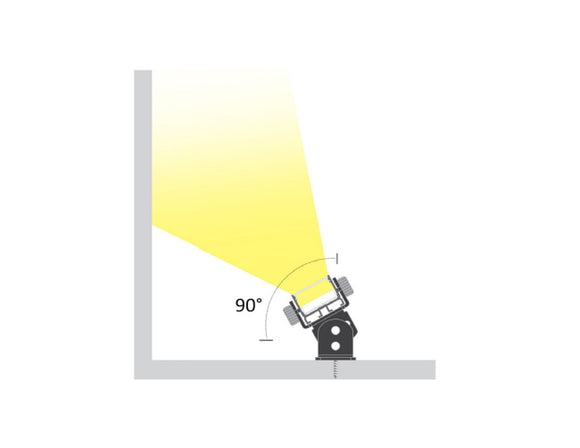

The aluminum channel can be surface mounted directly, or surface mounted using adjustable brackets (sold separately) so that lighting angles can be easily adjusted. Other compatible accessories (end caps, metal clips, and mounting clips) are also available to help a smooth installation. Although the channel itself is not waterproofed (IP20), GL LED wall washer light that is waterproofed (IP65) can be placed inside of the channel for an outdoor application.

Note: LED strip light not included. The LED channels are designed for indoor use. If used outdoors, they are not waterproof. Make sure the LED strip you choose is rated for outdoor use.



Specifications

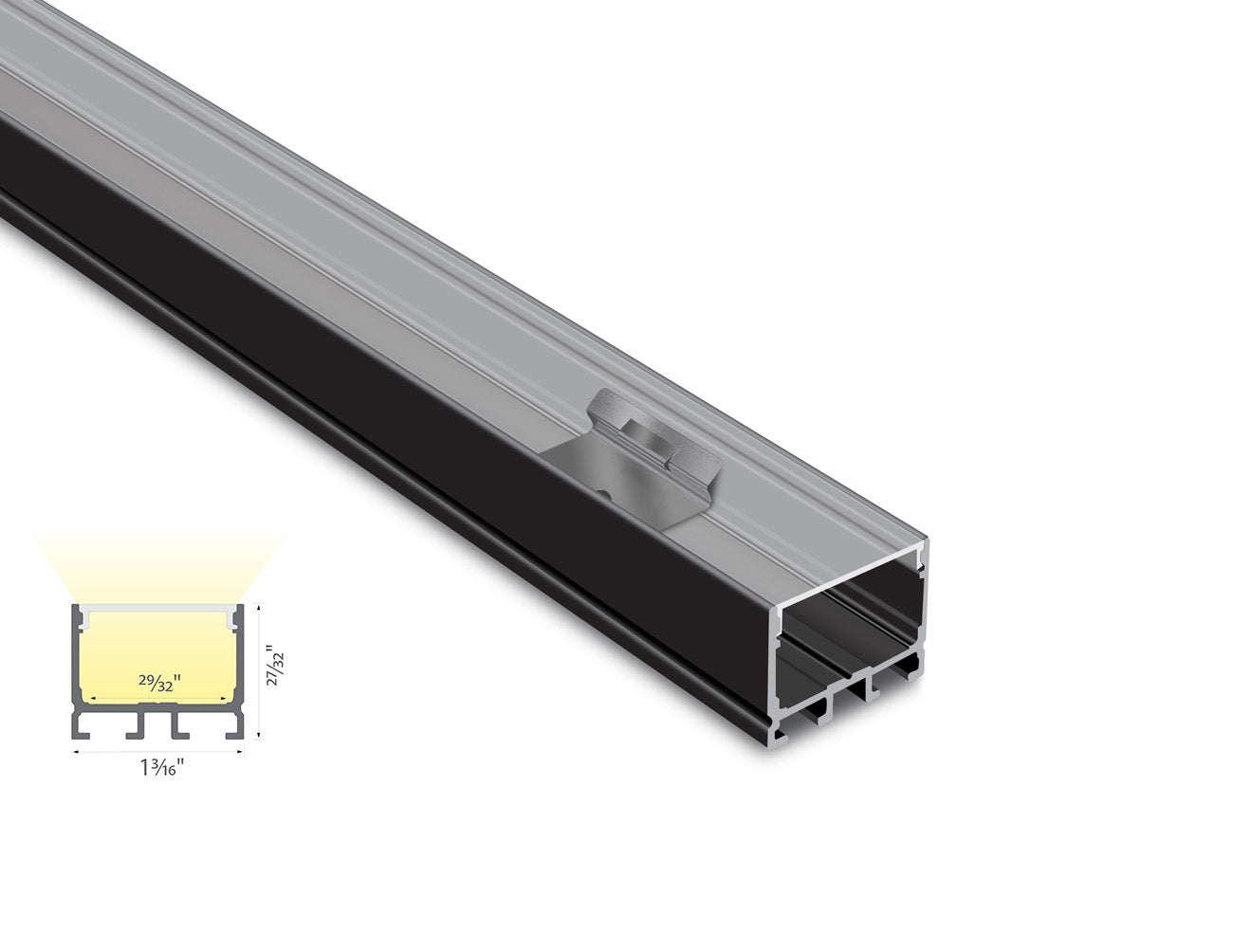

Dimension

L 94", W 1 3/16", H 27/32"

Internal width

29/32"

Material

Anodized Aluminum

Finish

Black aluminum and clear diffuser

Diffuser

Clear

Installation

Surface Mount

Application

Indoor

Length

94 in



Documents

Aluminum Channel Specification - ES 3021

View Accessories

Why Use Aluminum LED Channels?

Searching for the best way to install LED strip lights? Aluminum LED channels are the go-to solution for DIYers and professionals:

·Premium Look
Get a clean, flush finish in residential or commercial spaces

·Anti-Glare Diffusion
Use frosted covers for smooth light output

·Better Heat Sink
Prevents LEDs from overheating

·Protective Housing
Keeps LEDs safe from dust, liquids, and damage

·Custom Fit
Easy to cut, drill, and mount on any surface

·Saves Money
Fewer LED replacements = lower long-term costs

Compatible Products

LED Wall Washer Strip Light - Single Color

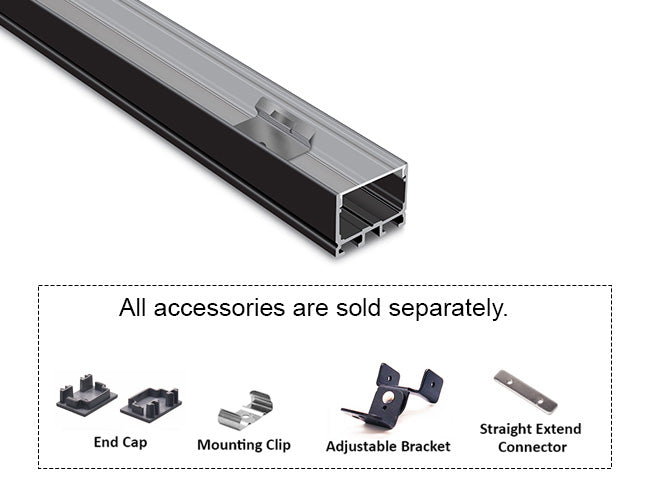

Accessories are available and sold separately

End Caps

Mounting Clips

Adjustable Brackets

Straight Extend Connector-Type B
