XLG-100-24-A Mean Well 100W Constant Voltage Mode LED Driver

SKU: XLG-100W-24V

$61.40

The Mean Well XLG-100-24 is a high-performance, UL Recognized power supply offering 24V output with 100W capacity. Designed with short circuit, overload, and overvoltage protections, it ensures reliable and safe operation. Its IP67-rated enclosure makes it ideal for outdoor and industrial applications, such as LED street lighting, signage, and other harsh environment needs. The XLG-100-24 is energy-efficient, durable, and provides a cost-effective solution for a wide range of projects requiring stable power in challenging conditions.

Note:
All IP67-rated products for wet locations only, cannot be used in water or in places where water might accumulate.

Step-by-Step: How to Choose the Right Power Supply for Your LED Setup

Start with your control method — then choose the matching power supply.

  1. Decide Your Control Type First
  2. Pick the control or dimming method that fits your lighting application:
    • Triac Dimmer – Standard wall switch dimmer (common in homes)
    • 0-10V Dimmer – Commercial dimming systems
    • ELV Dimmer – Reverse phase dimming (quiet, smoother dimming)
    • RGB/RGBW Controller – For color-changing LED strips
    • No Dimming – Basic on/off control
  3. Choose the Right Power Supply to Match
  4. Select a power supply compatible with your control type:
    • Triac Dimmer → Triac Dimmable Power Supply
    • 0-10V Dimmer → 0-10V Dimmable Power Supply
    • ELV Dimmer → ELV Dimmable Power Supply
    • RGB/RGBW Controller → Standard Non-Dimmable Power Supply
    • No Dimming → Standard Non-Dimmable Power Supply
  5. Match the Output Voltage
  6. Make sure your power supply output matches your LED strip voltage:
    • 12V LED strips → Use a 12V power supply
    • 24V LED strips → Use a 24V power supply
  7. Size the Wattage Properly
  8. Choose a power supply rated for more wattage than your LEDs consume:
    • Indoor Installations → Total LED wattage × 1.25 (125%)
    • Outdoor Installations → Total LED wattage × 1.5–2.0 (150–200%)
    This provides:
    • Overload protection
    • Cooler operation
    • Longer lifespan

Dimming, Non-Dimming & RGB — the right configuration matters.
Discover how to pick LED strips, power supplies, and dimmers the right way.
READ MORE >>>

Frequently bought together:

LED Strip Light
LED Controller
LED Power Supply
LED Aluminum Channel
All LED Strip Light All LED Controller All LED Transformer All Aluminum Channel

Instruction Video:

  • Model No: XLG-100W-24V
  • Input Voltage: 100-305VAC
  • Output Voltage: 24VDC, Constant Voltage
  • Wattage: 100W
  • Rated Current: 4A

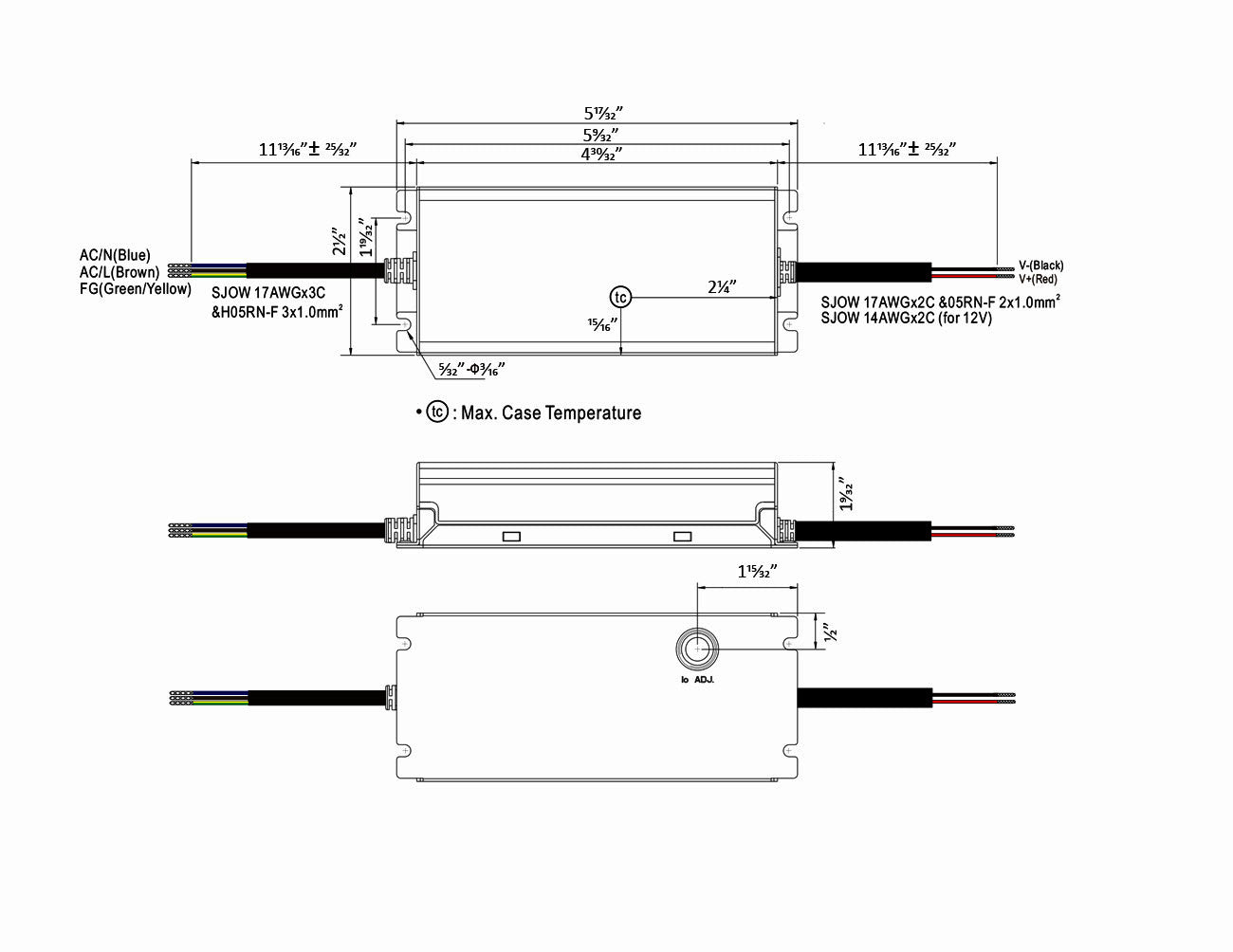

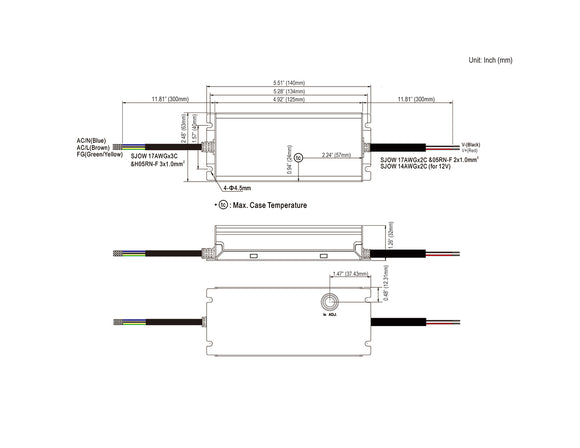

  • Dimension: L5 1/2", W 2 1/2", H 1 1/4"
  • Work Environment / IP Rating : IP67
  • Installation Options: Surface Mounted
  • Certification: RU
  • Warranty: 5 Years
  • Protection Method: Short circuit/OCP/OVP/OTP

Mean Well 100W Constant Power Mode LED Driver Specification

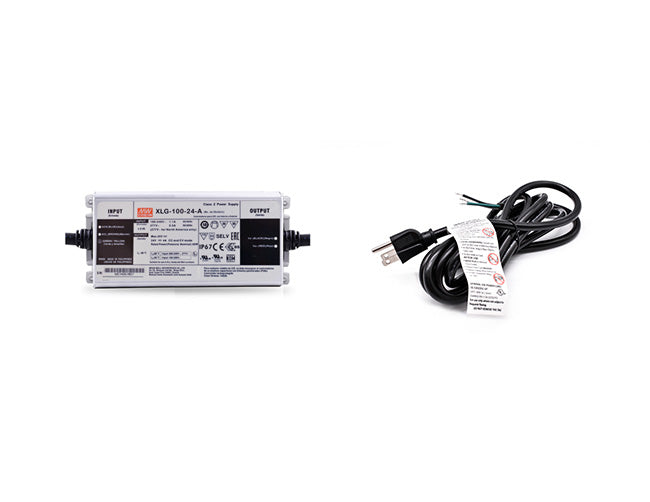

Separate accessories are available

Power Cable

Junction Box
