LED Driver LPV-60W-24V

SKU: LPV-60W-24V

Login to view price

The AC/DC LED transformer LPV-60W-12V can tolerate a full range of AC input while outputting a constant voltage. The LED driver can withstand 300VAC surge input for 5 seconds, and it includes built-in protection against short circuit, overload, and over voltage. The LED driver is fully insulated with an IP67 plastic case for outdoor applications, and is cooled down via air convection. The L series is a low-cost solution with great quality and reliability for small LED projects.

Note:
All IP67-rated products for wet locations only, cannot be used in water or in places where water might accumulate.

LED Low Voltage Light System

Frequently bought together:

LED Strip Light
LED Controller
LED Power Supply
LED Aluminum Channel
All LED Strip Light All LED Controller All LED Transformer All Aluminum Channel

Instruction Video:

  • Model No: LPV-60W-24V
  • Input Voltage: 90-264VAC
  • Output Voltage: 24VDC, Constant Voltage
  • Wattage: 60W
  • Rated Current: 2.5A
  • Class: Class 2

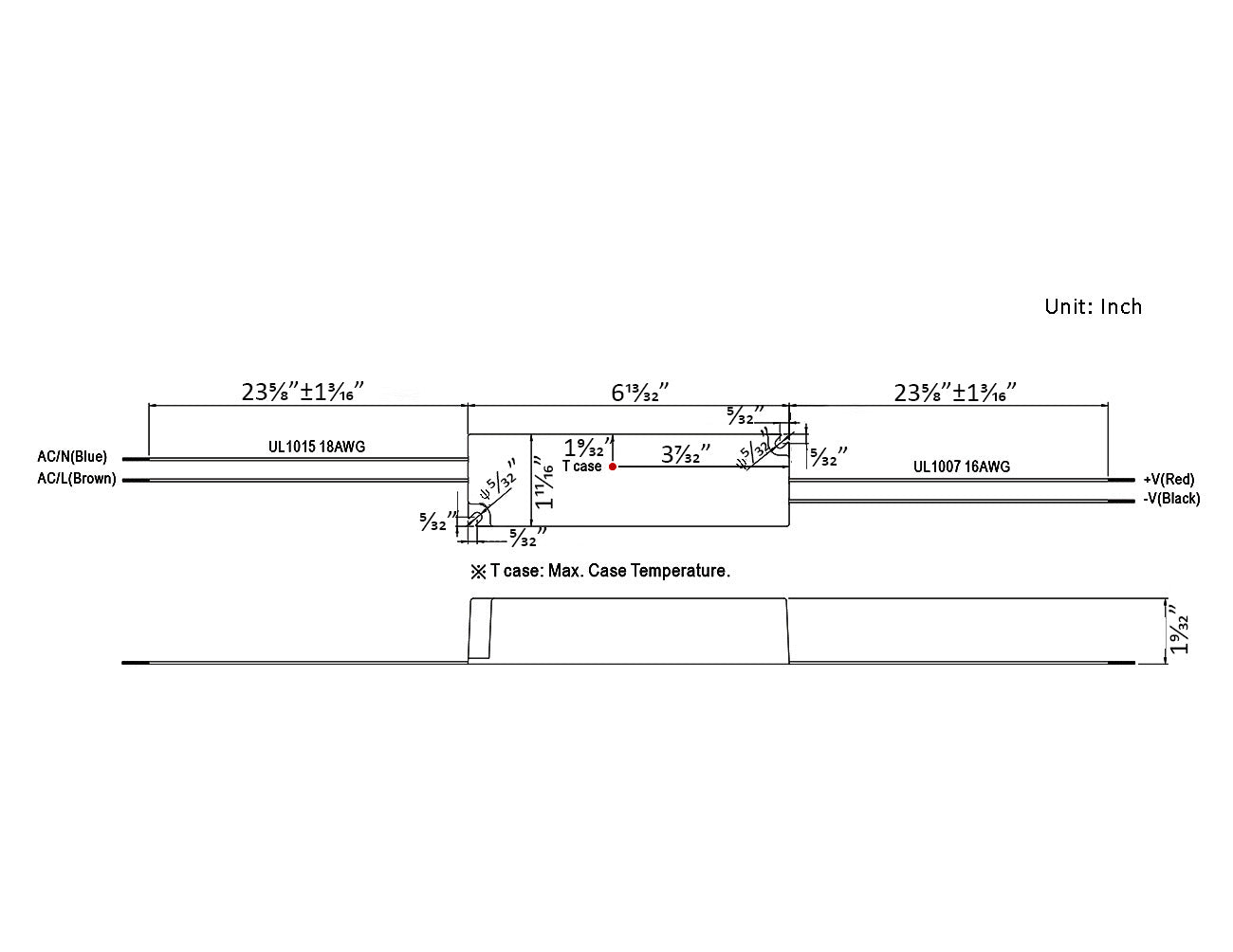

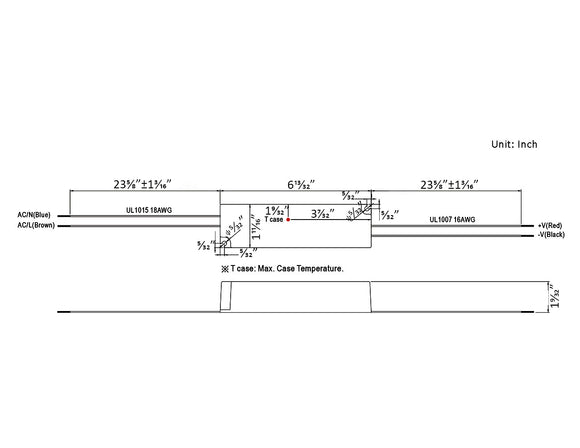

  • Dimension: L 6.4", W 1.7", H 1.3"
  • Work Environment / IP Rating : IP67
  • Installation Options: Surface Mounted
  • Working Temperature: -22 ~ +158℉
  • Certification: RU
  • Warranty: 2 Years
  • Protection Method: Short circuit/Over load/Over voltage

LED Transformer LPV-60W-24V Specification

Separate accessories are available

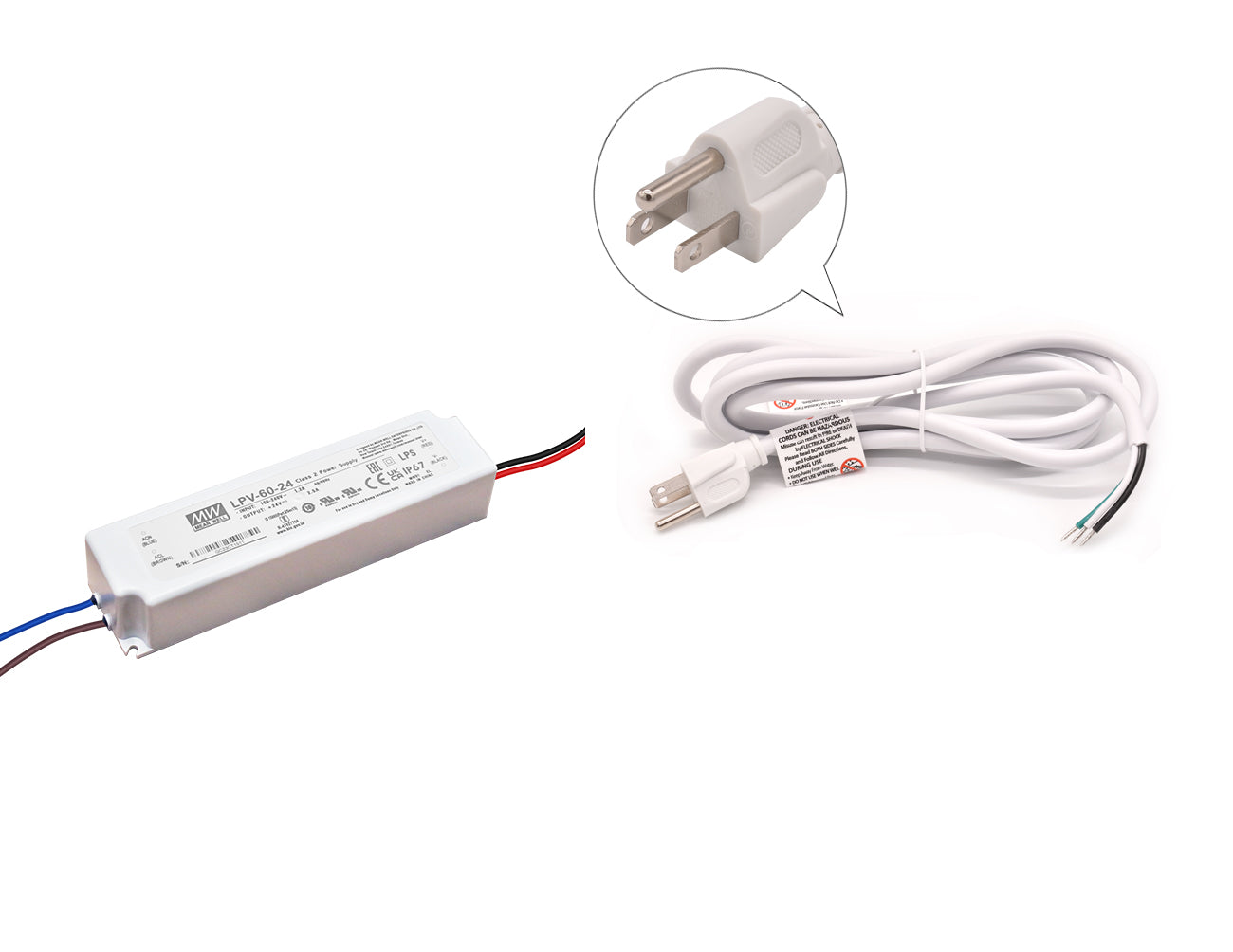

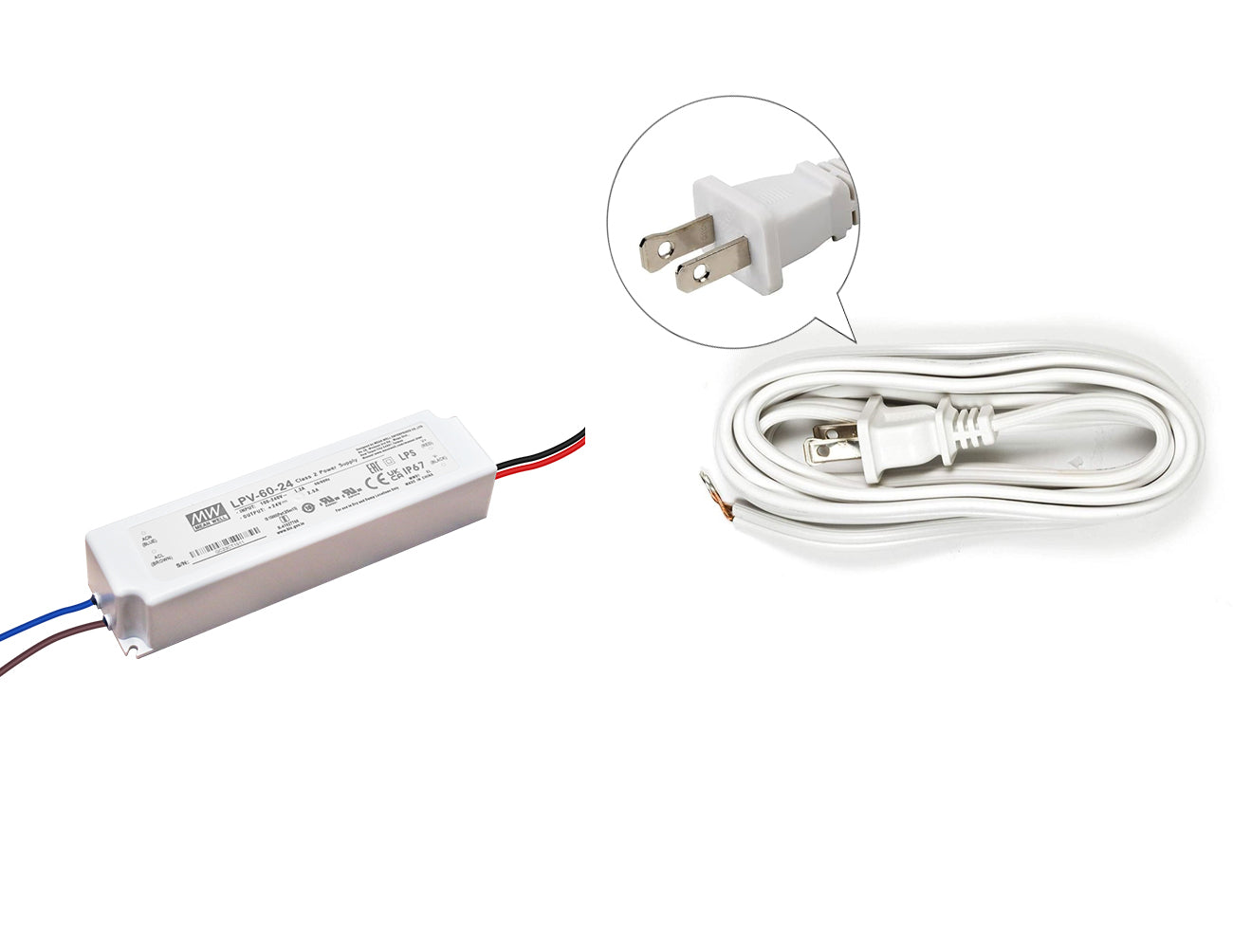

Power Cable

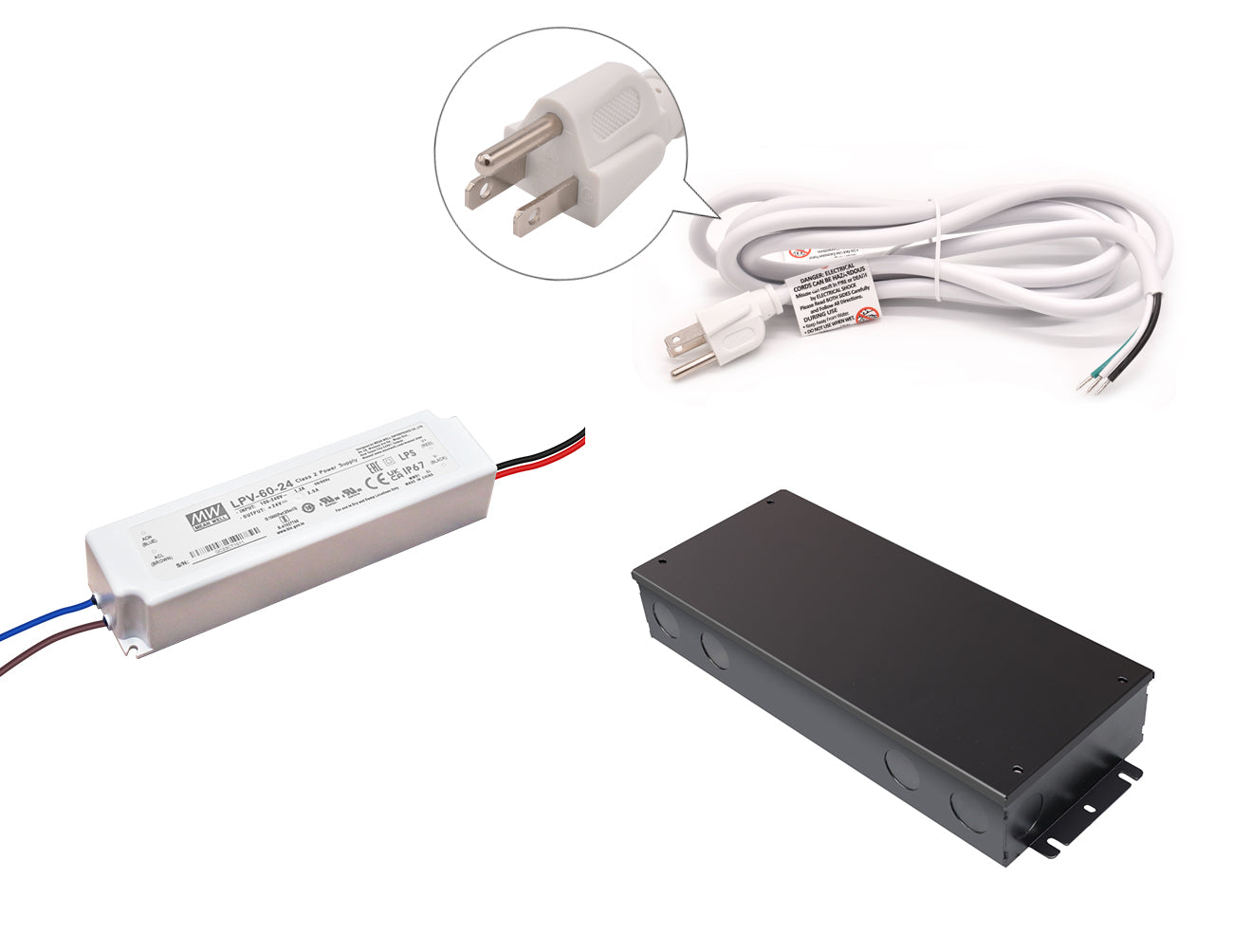

Junction Box

T Grid Mount Bracket
