LPV-60-12 12VDC-60W Constant Voltage Single Output Switching Power Supply

SKU: LPV-60W-12V

$23.14

The Mean Well LPV-60-12 is a 60W Class 2 power supply with a 12V DC output, designed for LED lighting and industrial applications. Its IP67 waterproof casing makes it ideal for outdoor use, including LED strips, signage, and architectural lighting. This reliable power supply features a wide AC input range (90-264VAC), high efficiency, and built-in protections for overload, short circuit, and overvoltage. With international safety certifications and robust durability, the LPV-60-12 ensures stable performance in harsh environments, making it a top choice for energy-efficient lighting solutions.

LED Low Voltage Light System

Frequently bought together:

LED Strip Light
LED Controller
LED Power Supply
LED Aluminum Channel
All LED Strip Light All LED Controller All LED Transformer All Aluminum Channel

Instruction Video:

  • Model No: LPV-60W-12V
  • Input Voltage: 90-277VAC
  • Output Voltage: 12VDC, Constant Voltage
  • Wattage: 60W
  • Rated Current: 5A
  • Class: Class II

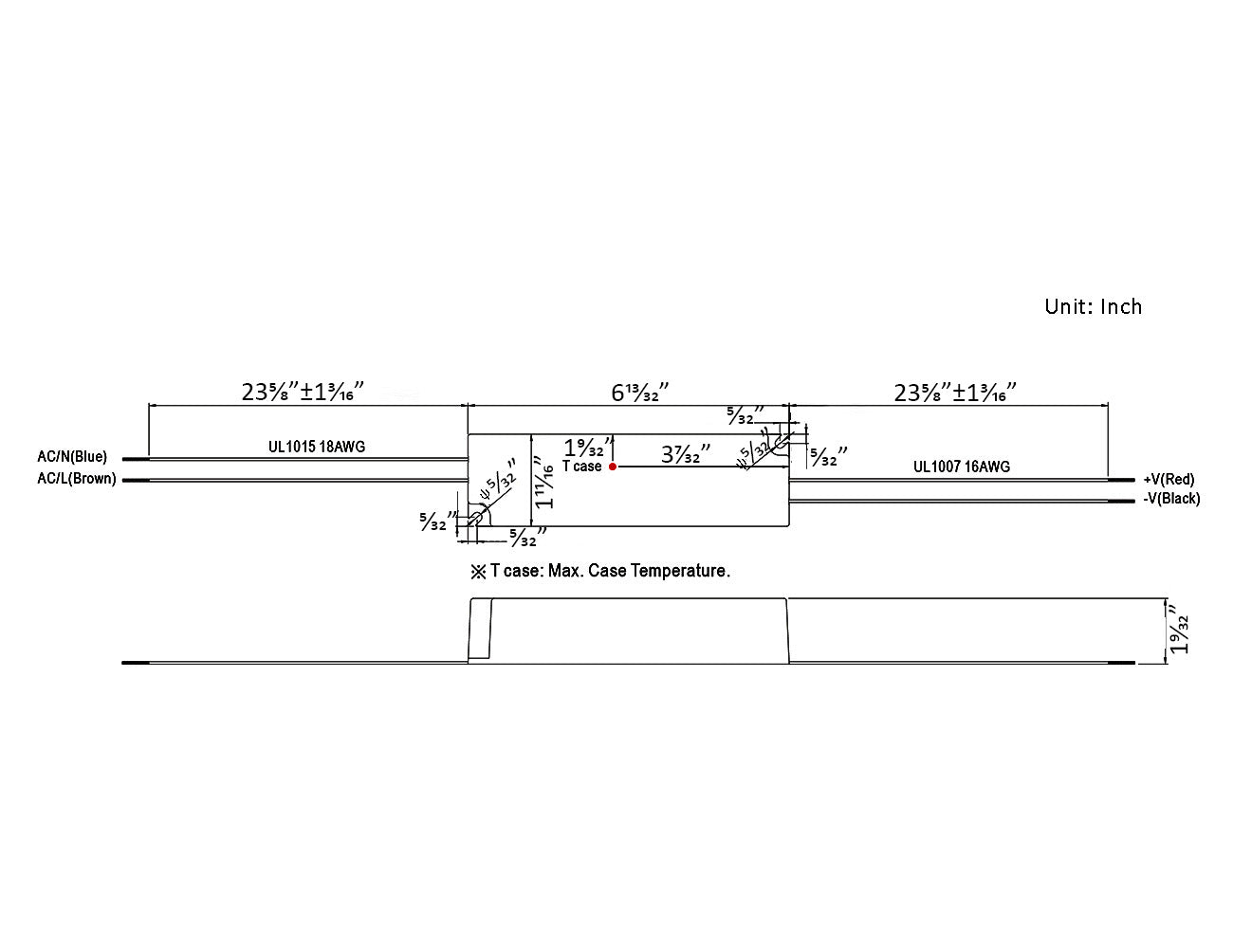

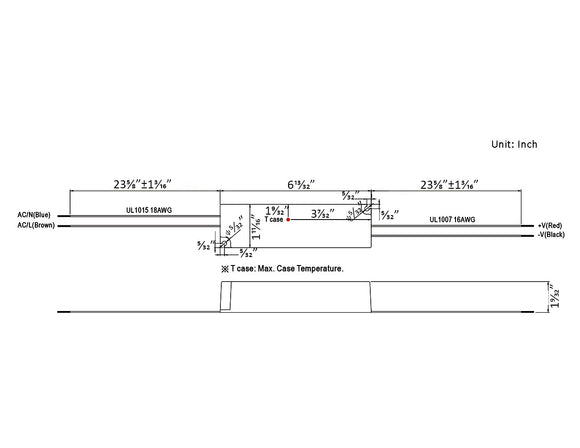

  • Dimension: L 6.6", W 1.8", H 1.3"
  • Work Environment / IP Rating : IP62
  • Working Temperature: -40 ~ +122℉ (Refer to "Derating Curve")
  • Certification: RU
  • Warranty: 2 Years
  • Protection Method: Short circuit/Over load/Over voltage/Over temperature

Mean Well 60W Single Output Switching Power Supply Specification

Separate accessories are available

Power Cable

Junction Box

T Grid Mount Bracket
