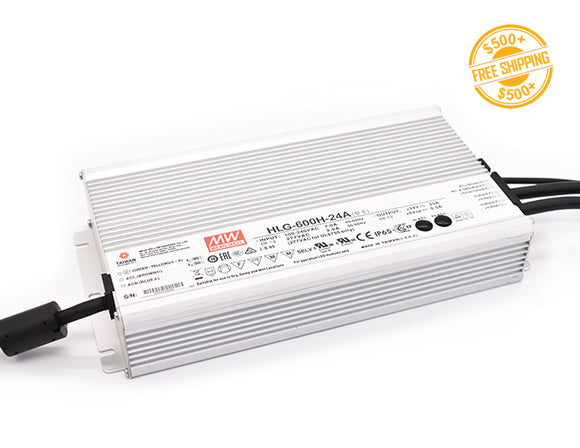

HLG-600H-24A Mean Well 600W Constant Voltage LED Driver

SKU: HLG-600W-24V

$408.04

The Mean Well XHLG-600H-24A is a high-performance, UL Recognized constant voltage power supply, offering a 24V output and 600W capacity. Designed for demanding outdoor and industrial applications, it features short circuit, overload, and overvoltage protections for reliable, long-term performance. With a 7-year warranty, it ensures high-quality and durability. The IP67-rated enclosure protects against harsh environments, making it ideal for LED street lighting, high-power floodlights, and other challenging applications. This energy-efficient power supply offers a cost-effective and dependable solution for powering LED systems.

Note:
All IP65-rated products for wet locations only, cannot be used in water or in places where water might accumulate.

Step-by-Step: How to Choose the Right Power Supply for Your LED Setup

Start with your control method — then choose the matching power supply.

  1. Decide Your Control Type First
  2. Pick the control or dimming method that fits your lighting application:
    • Triac Dimmer – Standard wall switch dimmer (common in homes)
    • 0-10V Dimmer – Commercial dimming systems
    • ELV Dimmer – Reverse phase dimming (quiet, smoother dimming)
    • RGB/RGBW Controller – For color-changing LED strips
    • No Dimming – Basic on/off control
  3. Choose the Right Power Supply to Match
  4. Select a power supply compatible with your control type:
    • Triac Dimmer → Triac Dimmable Power Supply
    • 0-10V Dimmer → 0-10V Dimmable Power Supply
    • ELV Dimmer → ELV Dimmable Power Supply
    • RGB/RGBW Controller → Standard Non-Dimmable Power Supply
    • No Dimming → Standard Non-Dimmable Power Supply
  5. Match the Output Voltage
  6. Make sure your power supply output matches your LED strip voltage:
    • 12V LED strips → Use a 12V power supply
    • 24V LED strips → Use a 24V power supply
  7. Size the Wattage Properly
  8. Choose a power supply rated for more wattage than your LEDs consume:
    • Indoor Installations → Total LED wattage × 1.25 (125%)
    • Outdoor Installations → Total LED wattage × 1.5–2.0 (150–200%)
    This provides:
    • Overload protection
    • Cooler operation
    • Longer lifespan

Dimming, Non-Dimming & RGB — the right configuration matters.
Discover how to pick LED strips, power supplies, and dimmers the right way.
READ MORE >>>

Frequently bought together:

LED Strip Light
LED Controller
LED Power Supply
LED Aluminum Channel
All LED Strip Light All LED Controller All LED Transformer All Aluminum Channel

Instruction Video:

  • Model No: HLG-600W-24V
  • Input Voltage: 90-305VAC
  • Output Voltage: 24VDC, Constant Voltage
  • Wattage: 600W
  • Rated Current: 25A
  • Class: Class I

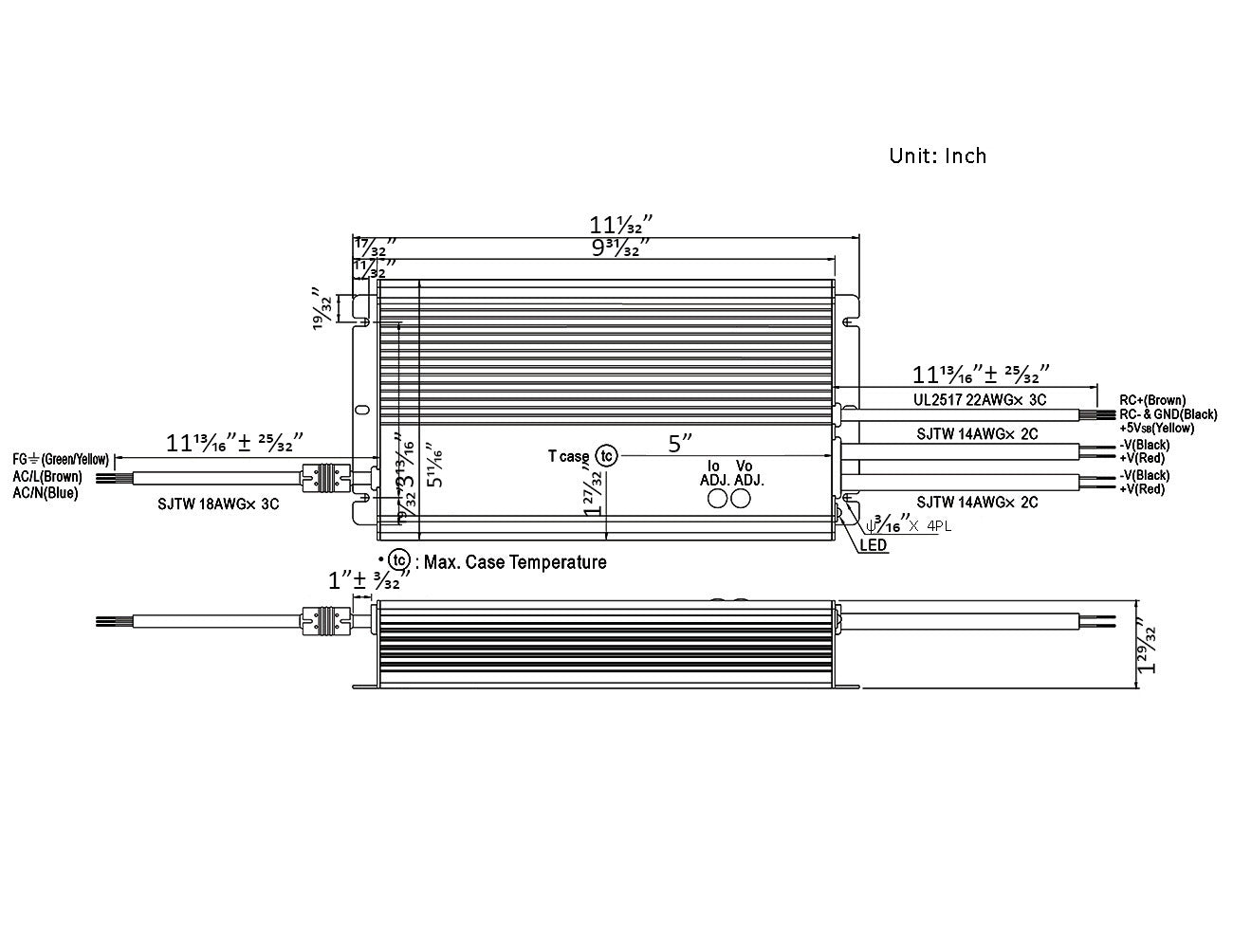

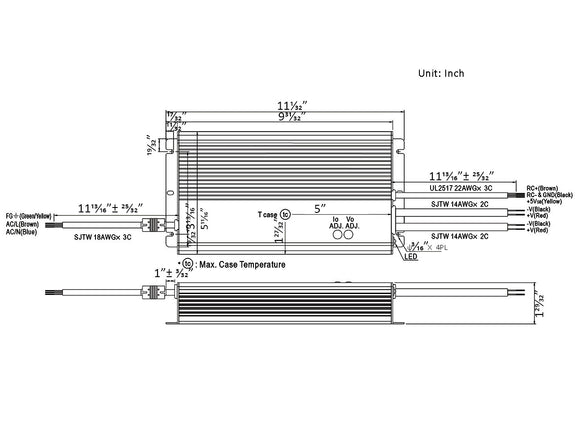

  • Dimension: L 11", W 5.7", H 1.9"
  • Work Environment / IP Rating : IP65
  • Installation Options: Surface Mounted
  • Operating Ambient Temperature: Tcase= -40 ~ +194℉
  • Certification: RU
  • Warranty: 7 Years
  • Protection Method: Short circuit/Over voltage/Over current/ Over temperature

Mean Well 600W Constant Voltage + Constant Current LED Driver Specification

Separate accessories are available

Power Cable
