APV-8W-24V

APV-8 series is one 8W AC/DC constant voltage mode single output LED power supply. Exploiting Class II design (without FG pin) and adopting the 94V-0 flame retardant plastic enclosure, APV-8 ideally fits the entry-level LED applications.

• Output: Constant voltage 12VDC
• Wattage: 8W
• Universal AC input: 90-264VAC
• Full isolated plastic case
• IP Rate: IP30 (Non-Waterproof)
• Class II power unit, no FG
• Small and compact size
• Cooling by free air convection
• Protection: short circuit/overload

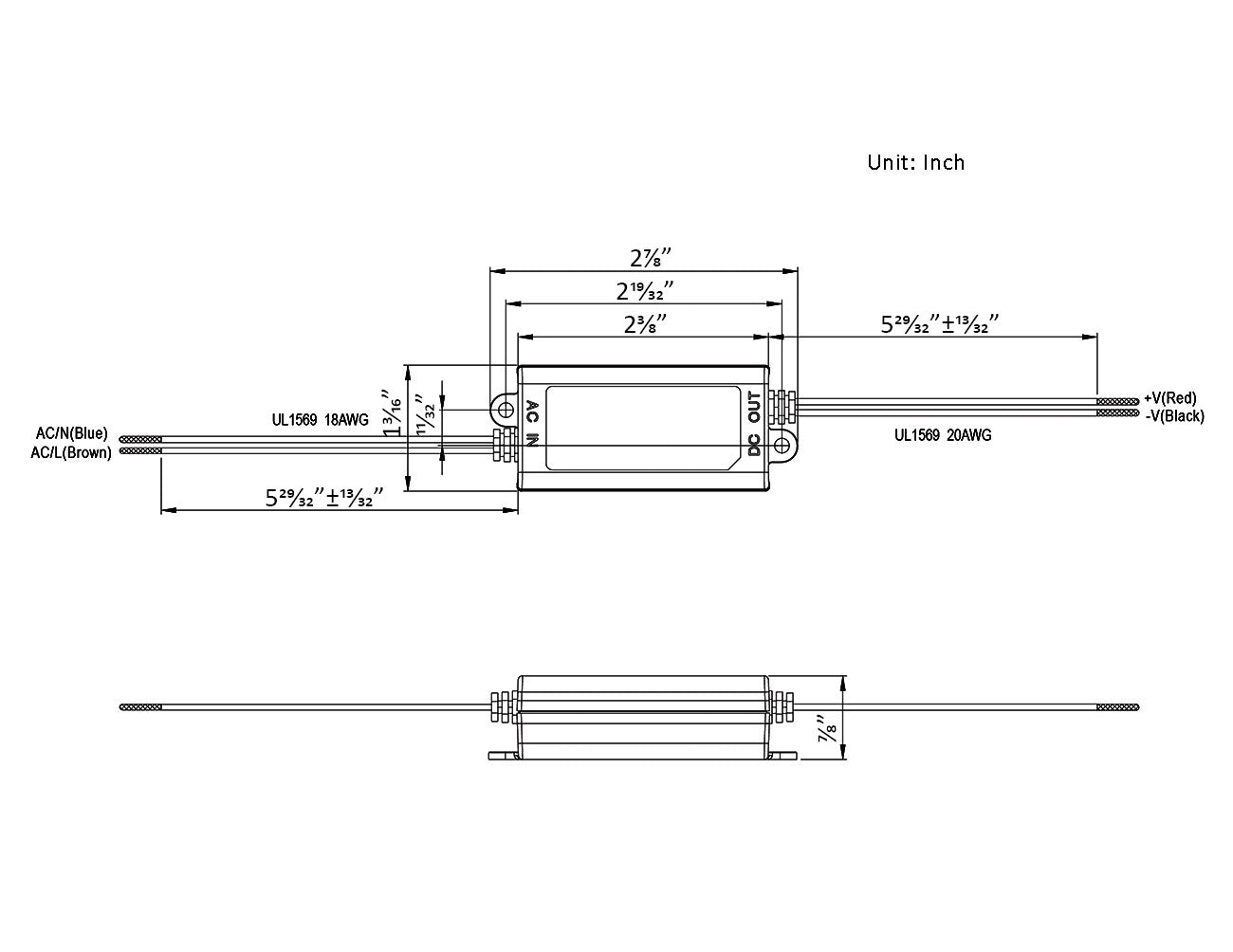

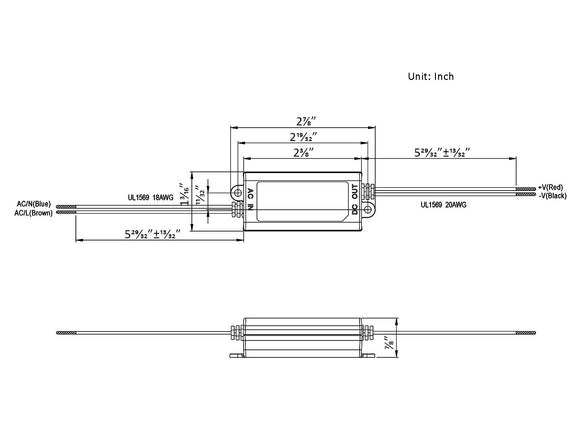

• Dimension(L*W*H): 60*30*22mm
• No load power consumption < 0.5W
• 100% full load burn-in test
• Low cost, high reliability
• Limited 2 years warranty
