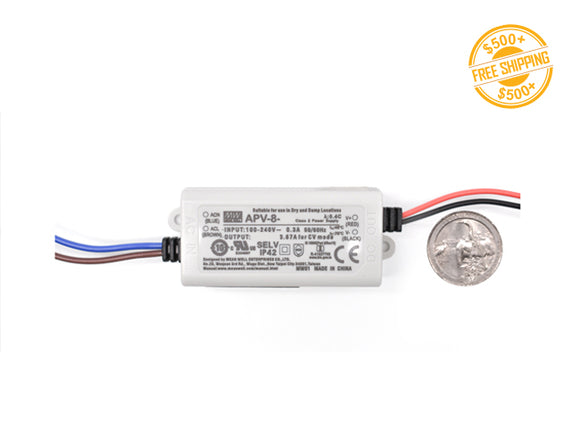

The Mean Well APV-8-12 is a compact 8W LED driver, perfect for indoor applications like signage, decorative lighting, and cabinet lighting. Its small size allows it to fit easily into a standard 4-inch junction box, making it ideal for space-constrained installations. Featuring a 12V DC output, universal AC input (90-264VAC), high efficiency, and IP42 protection, it ensures reliable and safe operation. With Class II insulation and international safety certifications, this driver is a top choice for professionals seeking energy-efficient, durable lighting solutions.
8W 12V Power Supply Specification
 |
 |
| Parameter | Value |
|---|---|
| Model | APV-8-12 |
| DC Voltage | 12V |
| Rated Current | 0.67A |
| Current Range | 0 ~ 0.67A |
| Rated Power | 8W |
| Ripple & Noise (max.) | 250mVp-p |
| Efficiency (Typ.) | 80% |
| Voltage Range | 90 ~ 264VAC |
| Frequency Range | 47 ~ 63Hz |
| Over Voltage Protection | 13.8 ~ 16V |
| Over Load Protection | Above 105% rated output power, hiccup mode, recovers automatically |
| Working Temperature | -30 ~ +70°C |
| Storage Temperature | -40 ~ +80°C, 10 ~ 95% RH |
| Withstand Voltage | I/P-O/P: 3.75KVAC |
| Isolation Resistance | I/P-O/P: >100M Ohms / 500VDC / 25°C / 70% RH |
| MTBF | 1631.5K hrs min. MIL-HDBK-217F (25°C) |

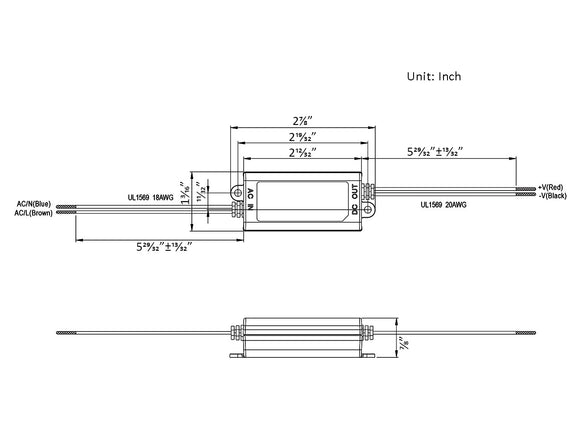

| Dimension | 60 x 30 x 22 mm |
| Packing | 0.09Kg; 144pcs/14Kg/0.71CUFT |
