LED Driver APV-35W-24V

SKU: APV-35W-24V

Login to view price

The AC/DC LED transformer series can tolerate a full range of AC input while outputting a constant voltage. The LED driver can withstand 300VAC surge input for 5 seconds, and it includes built-in protection against short circuit, overload, and over voltage. This LED driver is a low-cost solution with great quality and reliability for small LED lighting projects.

LED Low Voltage Light System

Frequently bought together:

LED Strip Light
LED Controller
LED Power Supply
LED Aluminum Channel
All LED Strip Light All LED Controller All LED Transformer All Aluminum Channel

Instruction Video:

  • Model No: APV-35W-24V
  • Input Voltage: 90-132VAC
  • Output Voltage: 24VDC, Constant Voltage
  • Wattage: 35W
  • Rated Current: 1.5A
  • Class: Class 2
  • Dimension: L 3.3", W 2.2", H 1.2"
  • Work Environment / IP Rating : IP42
  • Installation Options: Surface Mounted
  • Working Temperature: -22 ~ +158℉
  • Certification: RU
  • Warranty: 2 Years
  • Protection Method: Short circuit/Over load/Over voltage

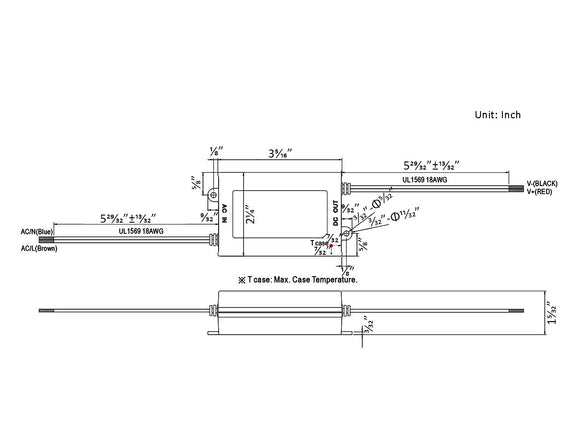

LED Transformer APV-35W-24V Specification

Separate accessories are available

Power Cable

Junction Box

T Grid Mount Bracket
