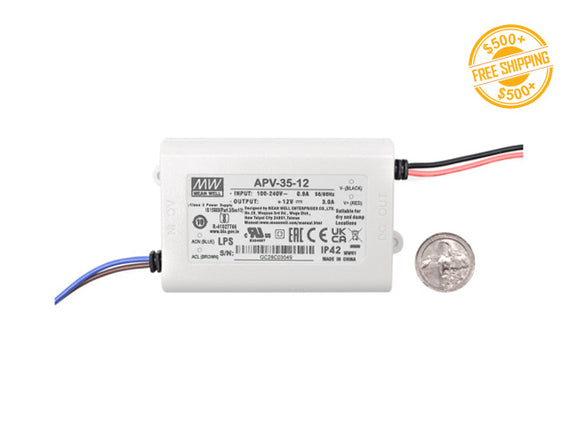

Mean Well APV-35-12V 35W Single Output Switching Power Supply

SKU: APV-35W-12V

$18.43

The Mean Well APV-35-12 is a 35W LED driver with a 12V DC output, ideal for indoor and outdoor applications like LED strips, signage, and decorative lighting. It features a compact design, universal AC input (90-264VAC), high efficiency, and Class II insulation. With IP42 protection and built-in short-circuit and overload safeguards, it ensures reliable and safe operation. This driver meets international safety standards, making it a durable and energy-efficient choice for professional and DIY lighting projects. Perfect for consistent performance in diverse environments.

LED Low Voltage Light System

Frequently bought together:

LED Strip Light
LED Controller
LED Power Supply
LED Aluminum Channel
All LED Strip Light All LED Controller All LED Transformer All Aluminum Channel

Instruction Video:

  • Model No: APV-35W-12V
  • Input Voltage: 90-132VAC
  • Output Voltage: 12VDC, Constant Voltage
  • Wattage: 35W
  • Rated Current: 3A
  • Class: Class 2

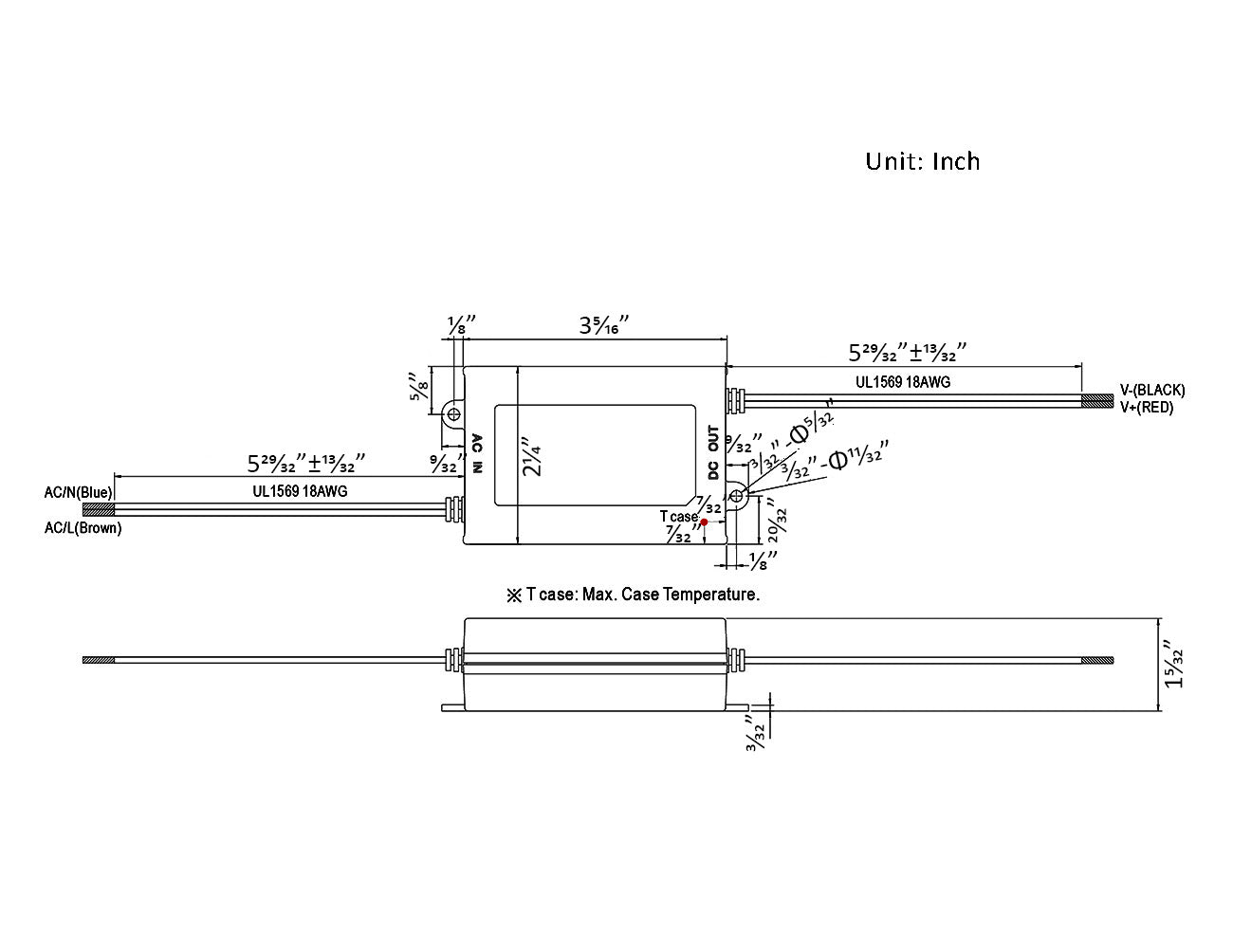

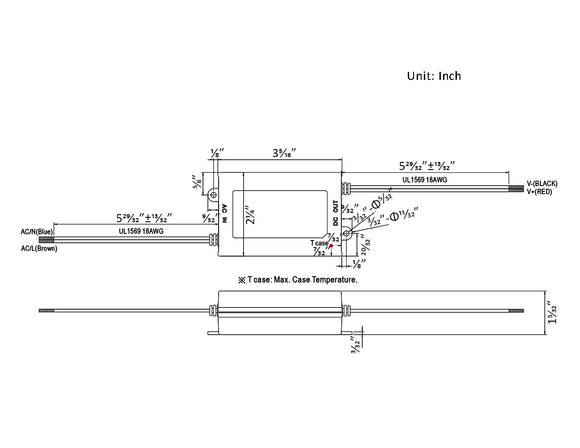

  • Dimension: L 3.3", W 2.2", H 1.2"
  • Work Environment / IP Rating : IP42
  • Installation Options: Surface Mounted
  • Working Temperature: -22 ~ 158℉
  • Certification: RU
  • Warranty: 2 Years
  • Protection Method: Short circuit/Over load/Over voltage

Mean well 35W Single Output Switching Power Supply Specification

Separate accessories are available

Power Cable

Junction Box

T Grid Mount Bracket
