LED Track Light - Standard 10W - 3000K

SKU: GL-TR-STD-10-H-B-3000K-40

Login to view price

The standard LED track lighting head 3000K has a modern and sleek design to work for task or accent lighting, with an H-type adapter to fit into a H-type single circuit track.

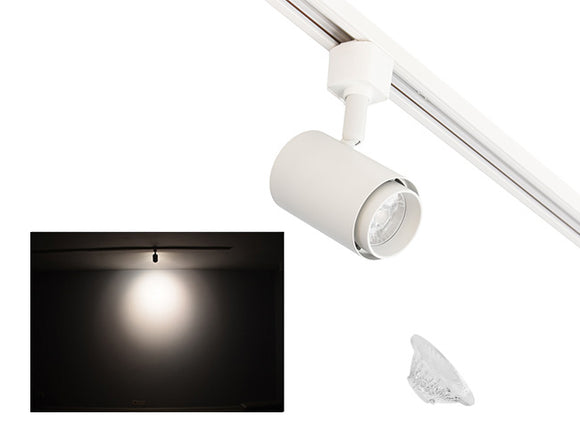

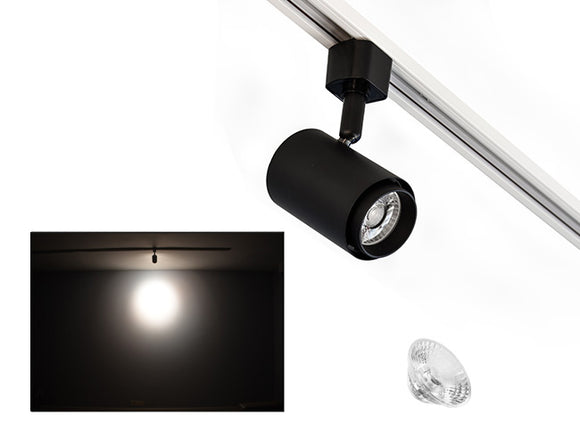

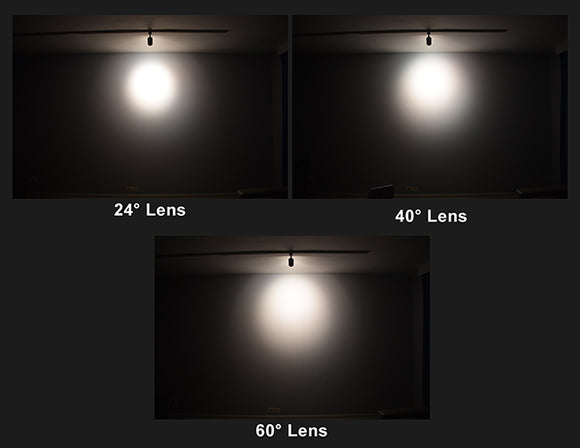

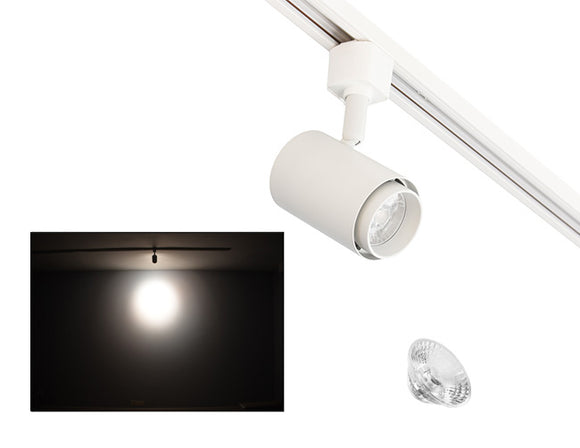

This track light head is made of die-cast aluminum with a removable front cap for lenses or accessories. Both powder-coated white and black color finishes are available to present a neat and stylish appearance. Interchangeable lenses of 24˚ and 60˚ can be installed on the track light head to produce corresponding beam angles. The LED track light head is also pivotable, providing flexibility so it can be pointed in any direction.  Passive cooling of the fixture is easily achieved by an innovative thermal design.

The standard LED track light head inputs a color temperature of 3000K (soft white). It has a power consumption of 10W and produces a brightness of up to 648Lm. It also exhibits a high CRI (>=95) to render the colors of surrounding objects more accurately.

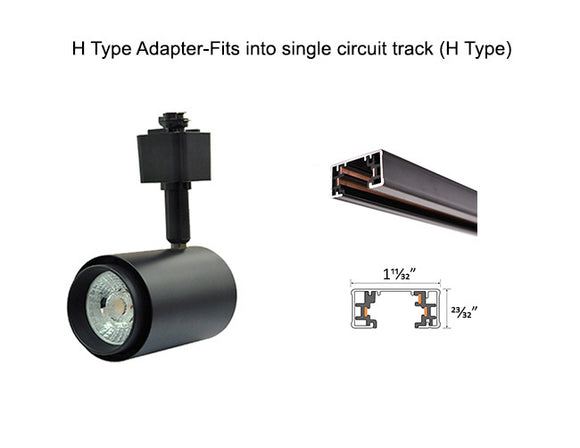

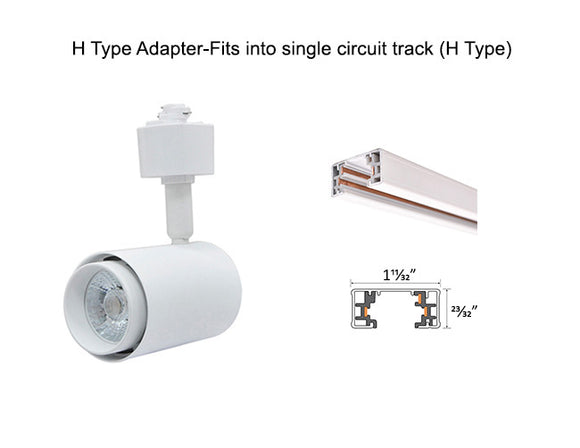

The LED track lighting head is operated at 120VAC, and can be easily mounted to H-type tracks using the adapter and H-type track components. Please refer to the track system page for more information.

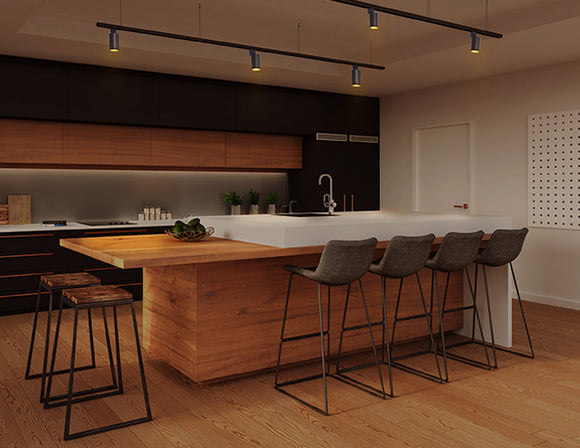

With its modern design and features, the LED track lighting head is capable or both warm intimate lighting and cooler daytime lighting, and is a perfect option for both commercial and residential applications.

LED Track Light - Standard:

Model
Standard 10W

Input
120VAC
120VAC
120VAC
120VAC
Color Rendering
CRI>=90
CRI>=90
CRI>=90
CRI>=90
Dimmable
Triac Dimming
Triac Dimming
Triac Dimming
Triac Dimming
Adapter
H-Type(HALO),
3 wire,
1 circuit
H-Type(HALO),
3 wire,
1 circuit
H-Type(HALO),
3 wire,
1 circuit
H-Type(HALO),
3 wire,
1 circuit
CCT & Lumen
2700K/629LM
3000K/648LM
3500K/648LM
4000K/665LM
5000K/675LM
2700K/1014LM
3000K/1045LM
3500K/1069LM
4000K/1069LM
5000K/1115LM
2700K/1560LM
3000K/1583LM
3500K/1638LM
4000K/1638LM
5000K/1700LM
2700K/2925LM
3000K/3000LM
3500K/3000LM
4000K/3083LM
5000K/3180LM
Interchangeable Lens
24°/40°/60°
15°/24°/40°/60°
15°/24°/40°/60°
24°/40°/60°
Accessories
None
Barn Door 1
Oval Snoot 1
Honeycomb 1
Snoot 1
Barn Door 1
Oval Snoot 1
Honeycomb 1
Snoot 1
Barn Door 2
Oval Snoot 2
Honeycomb 2
Snoot 2

Frequently bought together:

LED Track Light LED Track System LED Track Light Accessories
  • Model No: Standard 10W - 3000K, SKU: GL-TR-STD-10-H-X-3000K-40-XX
  • Operation Voltage: 120VAC
  • Wattage: 10W
  • Brightness/Lumens: 648lm

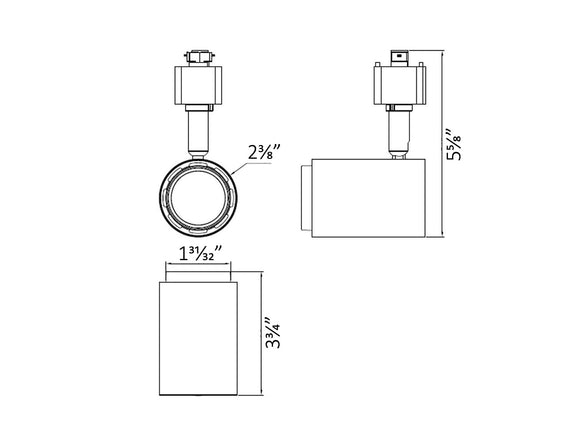

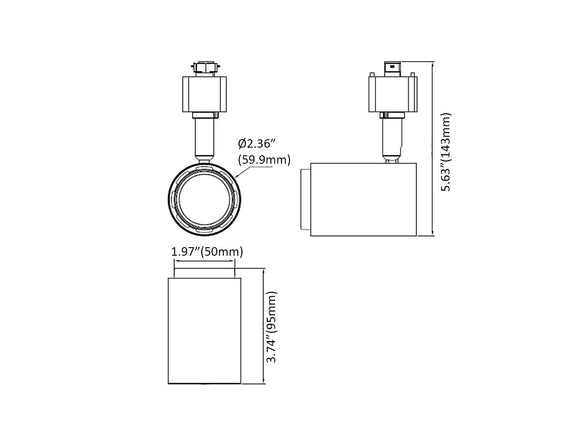

  • Dimension: L 5.63", W 3.74", H 2.36"
  • Unit Box: L 6.9", W 4.5", H 3.3"
  • Dimming Method: Triac Dimming
  • Adapter: H-Type(HALO), 3 Wire, 1 Circuit
  • Color Rendering Index (CRI): Ra>=95
  • Color Temperature Options (CCT): 3000K
  • Beam Angle: 24°, 40°, 60°
  • Finish Options: Black/White
  • Installation Options: Surface Mounted
  • Net Weight: 0.75lbs
  • Certification: ETL
  • Warranty: 5 Years

LED Track Light - Standard 10W 3000K Specification
