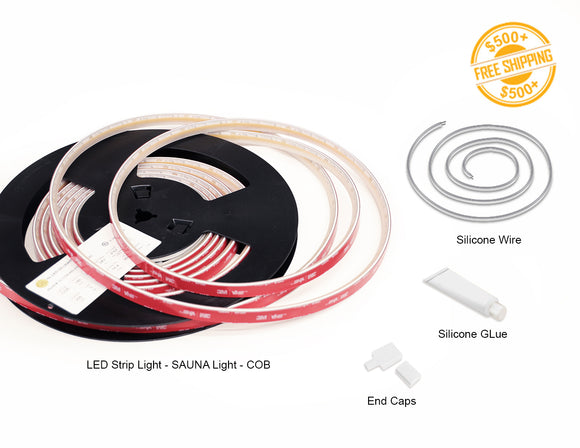

LED Strip Light - Single Color - White - SAUNA Light - COB - Wet Location IP67 - 24V

SKU: GL-COB-480-2700K-24V-IP67

Login to view price

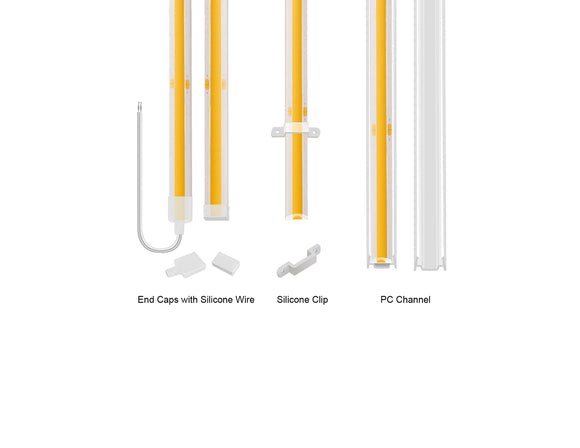

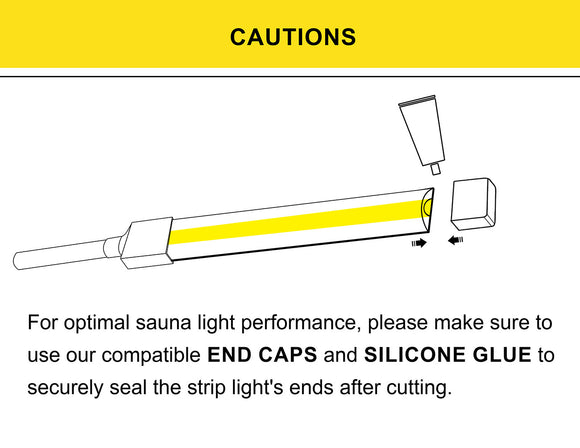

Can be used at high temperatures above -80°C and below 105°C (such as saunas). There is a steel plate reinforcement design on the back, which is resistant to bending. The product has high stability and is not easy to perish. Gold pads for stronger soldering and prevent color temperature drift. Using high-temperature glue 3M VHB GPH-060GF, the long-term temperature resistance is 150°C. Use high temperature resistant silicone wire, Special DIY silica gel, connectors, and end caps are optional, and the correct use can reach IP67 waterproof

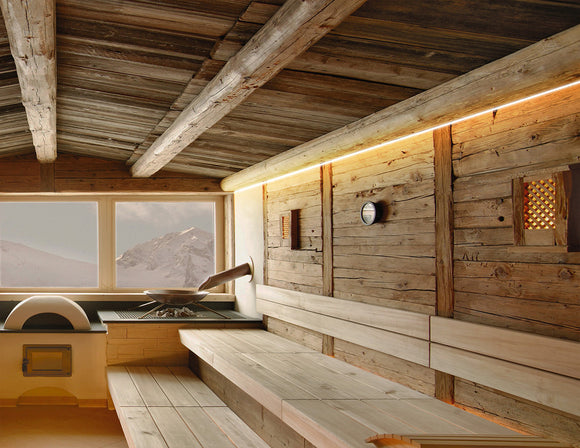

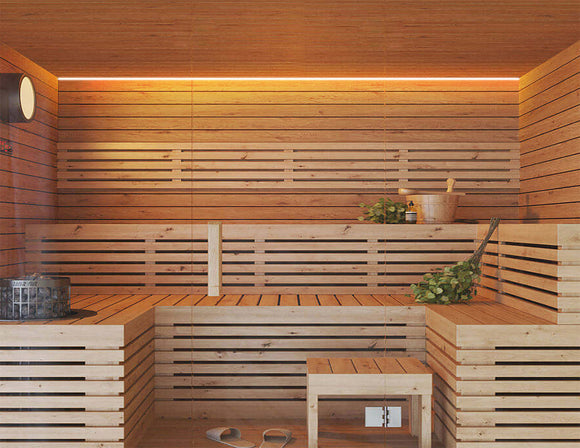

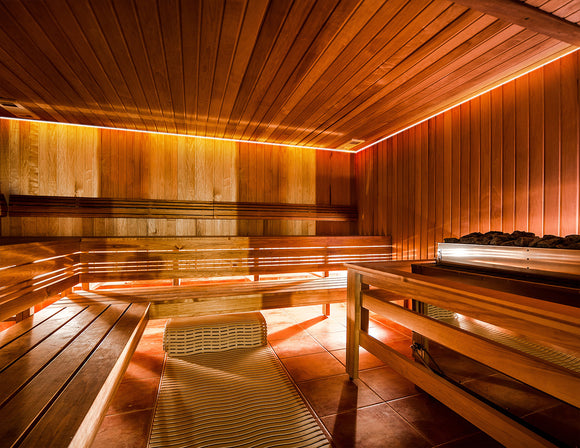

The SAUNA LED strip light features a slim and cuttable design that brings lighting aesthetics and allows for an easy installation. Different color temperatures are available, including 2700K, 3000K, 4000K, and 6000K. The seamless LED tape light can be easily cut into 1 31/32 inches segments and installed with its convenient peel-and-stick 3M VHB adhesive backing (Click to see How to apply 3M double-sided tape properly). Run the strip back to power every 16.4ft to avoid excessive voltage drop. A totally smooth and seamless line of light will not show visible dots or hot spots. It’s great for reflective surfaces such as granite countertops and tile floors, and perfect for sauna or other high temperature and high humidity applications.

Features:
· Designed to be used in wet and hot environments (such as shower, steam, and sauna rooms)
· High density of LEDs: 145 LEDs/ft (480 LEDs/m)
· Gold solder pads for improved color temperature stability and oxidation protection
· Utilizing a large LED chip size (10mil x 20mil) and 99.99% gold wires for the LED chip-to-pin connections significantly improves the quality of the light

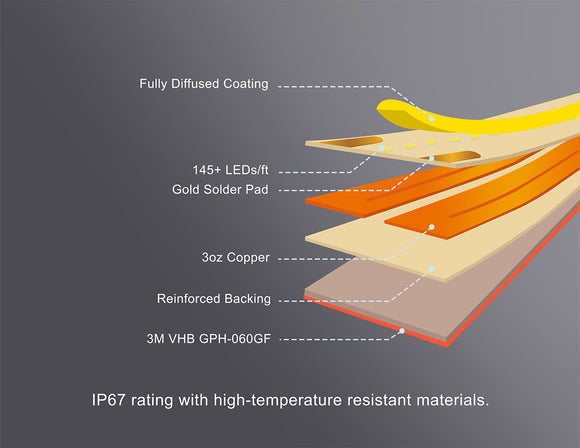

· Steel plate reinforcement structure for enhanced durability
· IP67 rating with high-temperature resistant materials (2ft silicone wires on both sides; 3M VHB GPH-060GF backing)
· Advanced 5m reel-to-reel PCB design for more uniform lighting distribution and enhanced durability
· Each reel is 16.4ft (5m) long and 0.47 in. (12mm) wide

Customized Service is available, click here to get more information.

Want to try our product sample >>Click here!

LED Low Voltage Light System


Transformer Recommendation for LED Strip Light - Single Color - SAUNA Light (3W/ft)

For Indoor Use: (use 80% capacity)
Length of Strip Light(ft) 0-2 0-9 0-9 0-16 0-16 0-25
Transformer APV-8W-24V APV-35W-24V YHY-36W-24V YHY-60W-24V LPV-60W-24V TPZ-96W-24V
Length of Strip Light(ft) 0-26 0-40 0-53 0-85 0-160 **
Transformer XLG-100W-24V XLG-150W-24V XLG-200W-24V HLG-320W-24V HLG-600W-24V **

Length of Strip Light(ft) 0-6 0-40 0-53 ** ** **
Dimmable Transformer P-25W-24V P-150W-24V P-200W-24V ** ** **
Length of Strip Light(ft) 0-8 0-16 0-25 0-40 0-53 0-80
Dimmable Transformer F-30W-24V G-60W-24V G-96W-24V F-150W-24V F-200W-24V G-300W-24V
For Outdoor Use:(use 50% capacity)
Length of Strip Light(ft) 0-10 0-16 0-25 0-33 0-53 0-100
Transformer LPV-60W-24V XLG-100W-24V XLG-150W-24V XLG-200W-24V HLG-320W-24V HLG-600W-24V

Length of Strip Light(ft) 0-25 0-33 ** ** ** **
Dimmable Transformer P-150W-24V P-200W-24V ** ** ** **
Length of Strip Light(ft) 0-5 0-10 0-16 0-25 0-33 0-50
Dimmable Transformer F-30W-24V G-60W-24V G-96W-24V F-150W-24V F-200W-24V G-300W-24V

More LED Strip Lights:
Model

Price
$
$$
$$$
$$
LED Color
2700K
3000K
4000K
2700K
3000K
4000K
1800K
2700K
3000K
4000K
6500K
2700K
3000K
3500K
4000K
Brightness
up to 348 lm/ft
up to 575 lm/ft
up to 848 lm/ft
up to 234 lm/ft
LED Density
36 LEDs/ft
73 LEDs/ft
73 LEDs/ft
36 LEDs/ft
Power Consumption
3 W/ft
4.4 W/ft
7 W/ft
3 W/ft
Efficacy
up to 116 lm/W
up to 130 lm/W
up to 121 lm/W
up to 78 lm/W
CRI
90+
90+
94+
90+
IP Rating
Dry Location
Dry Location
Dry Location
Dry Location
Length
16.4ft
16.4ft
16.4ft
32.8ft
Input
12V/24V DC
24V DC
24V DC
24V DC
No Voltage Drop
16.4ft
16.4ft
16.4ft
65.6ft

Frequently bought together:

LED Strip Light
LED Controller
LED Power Supply
LED Aluminum Channel
All LED Strip Light All LED Controller All LED Transformer All Aluminum Channel



Q&A:

What is the difference between COB and SMD LED lights?

COB (Chip-on-Board) and SMD (Surface Mount Device) are two different types of LED lights that differ in how the LED chips are packaged and mounted.

COB LEDs, as mentioned earlier, have multiple LED chips mounted directly onto a circuit board, resulting in a high level of brightness and a wide beam angle. Because the LEDs are packed so tightly, COB LEDs can produce a lot of light in a small space, making them ideal for applications that require high levels of brightness, such as floodlights and spotlights.

SMD LEDs, on the other hand, have individual LED chips mounted on a surface, typically a printed circuit board. They are generally smaller than COB LEDs and are widely used in small, compact devices like smartphones and televisions. SMD LEDs are also more energy-efficient than COB LEDs, allowing them to produce more light per watt of energy consumed.

The main difference between COB and SMD LED lights lies in their packaging and mounting methods, resulting in differences in brightness, beam angle, and energy efficiency. Both types of LED lights have their unique advantages and disadvantages, and the choice of which one to use will depend on the specific application requirements.



Instruction Video: How to Prevent Voltage Drop

Instruction Video: How to Cut & Solder Your Low Voltage LED Strip Light

  • Model No: GL-COB-480-xxxxK-24V-IP67
  • Operation Voltage: 24VDC
  • Wattage per ft: 3W/ft
  • LED per ft: 145 LEDs/ft
  • Brightness/Lumen per ft: GL-COB-480-2700K-24V-IP67, 2700K, 256 LM/ft,
                                            GL-COB-480-3000K-24V-IP67, 3000K, 271 LM/ft,
                                            GL-COB-480-4000K-24V-IP67, 4000K, 299 LM/ft,
                                            GL-COB-480-6000K-24V-IP67, 6000K, 296 LM/ft.

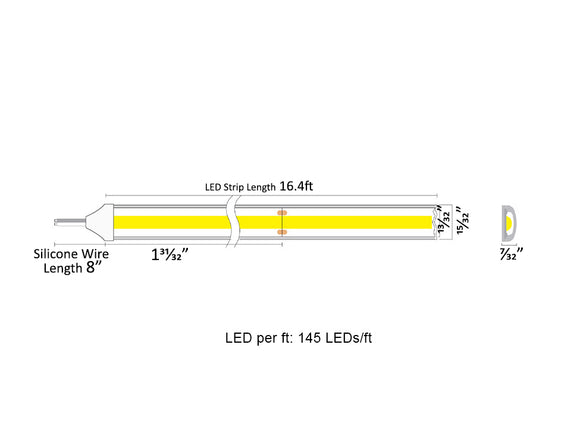

  • Dimension: L 16.4', W 0.39", D 0.07"
  • Dimming Method: PWM, Forward phase, Triac, 0-10V, MLV, ELV
  • Work Environment/IP Rating: IP67 (Wet Location)
  • Long Lifetime: 50,000hrs
  • Color Rendering Index (CRI): >90
  • Color Temperature options (CCT): 2700K, 3000K, 4000K, 6000K
  • Beam Angle: 120°
  • Cuttable Increments: 1.97"
  • One Run Max (No Voltage Drop): 16.4'
  • Certification: UL
  • Warranty: Indoor 5yrs, Outdoor 3yrs
  • 3M tape on the back

LED Strip Light Specification - SAUNA Light
Low Voltage LED Strip Light Installation Manual
