A COB LED (Chip-on-Board Light Emitting Diode) light is a type of LED that is made by mounting multiple LED chips directly onto a circuit board. Instead of having individual LEDs spaced apart on a circuit board, a COB LED packs numerous LED chips together in a tight array, resulting in a more even and spotless lighting effect.

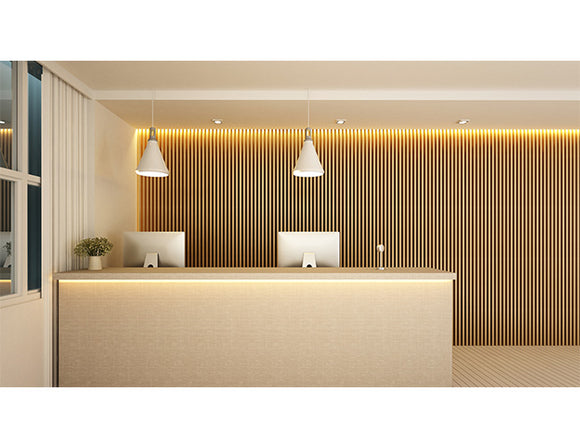

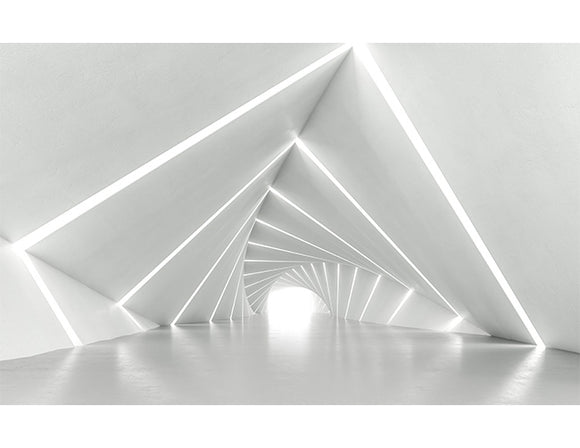

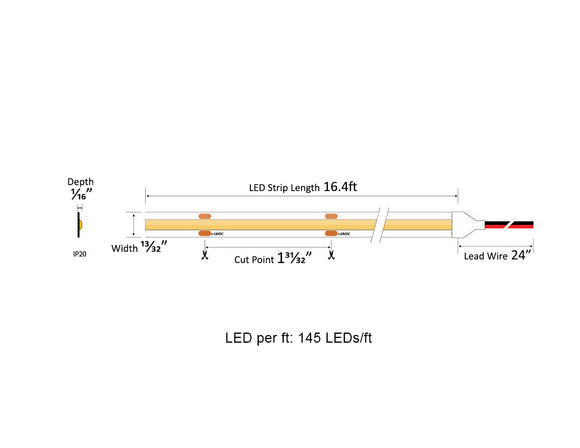

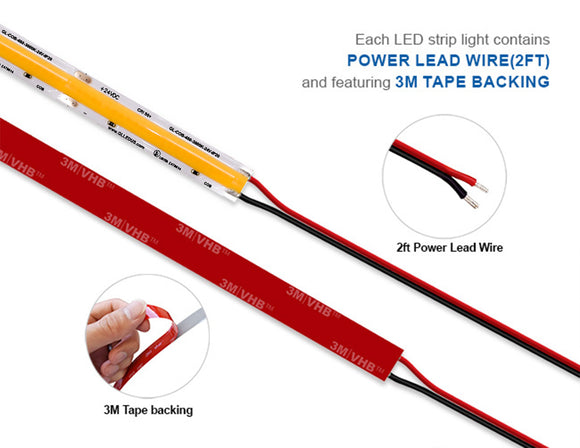

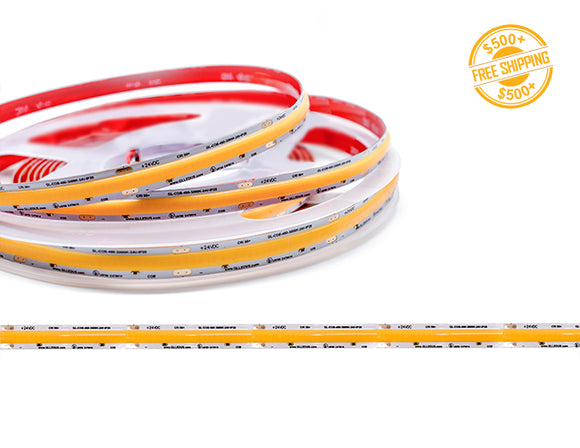

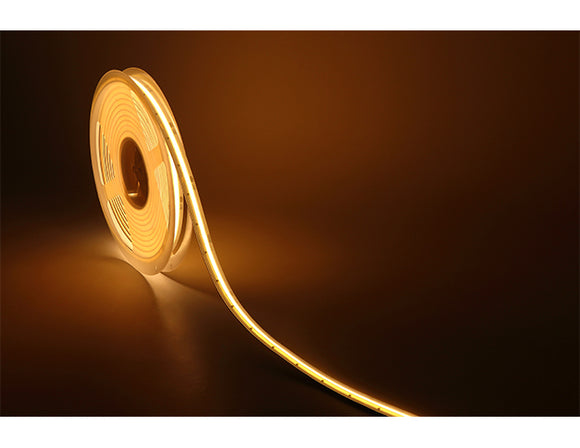

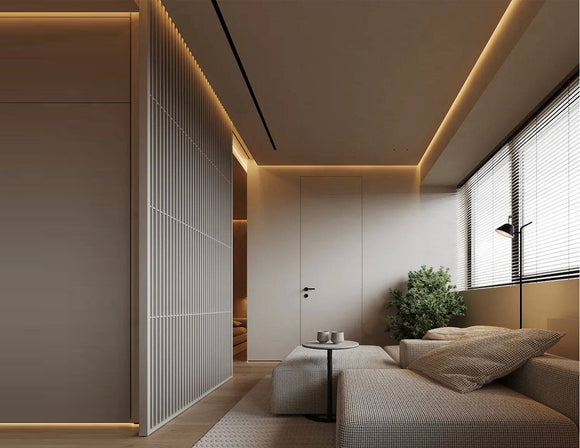

The COB LED strip light features a slim and cuttable design that brings lighting aesthetics and allows for an easy installation. Different color temperatures are available, including 2700K, 3000K, 4000K, and 6000K. The seamless LED tape light can be easily cut into 1 31/32 inches segments and installed with its convenient peel-and-stick 3M VHB adhesive backing (Click to see How to apply 3M double-sided tape properly). Run the strip back to power every 16.4ft to avoid excessive voltage drop. A totally smooth and seamless line of light will not show visible dots or hot spots. It’s great for reflective surfaces such as granite countertops and tile floors, and perfect for back lighting, ambient lighting, accent décor, cabinets, under-cabinet lighting, cove lighting, showcase lighting, or other indoor applications.
Features:
· New tech LED strip light
· Seamless LED provides even light output without any hotspots

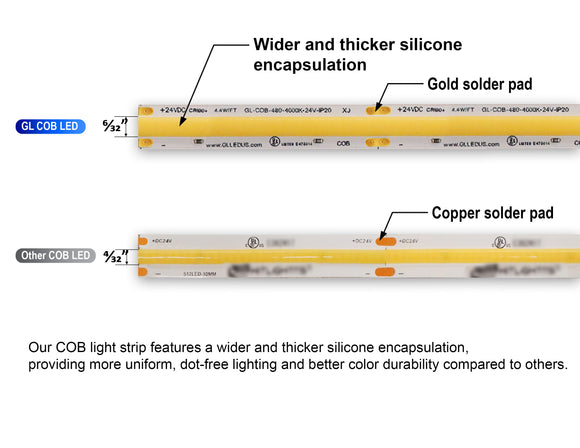

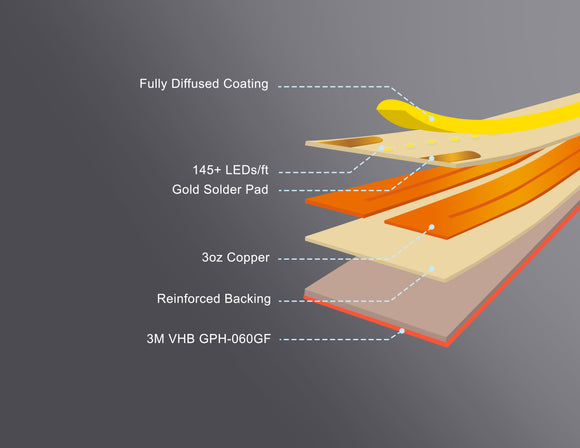

· Gold Solder Pads: Ensuring stable color temperature, more resilient and solid solder joints, and better heat dissipation.
· Reinforced PCB with Steel Belt: Improves structural stability and prevents bending damages.
· Larger Chip Design: Indicates a longer lifespan.
· Wider Silicone Coverage: Offers better protection for chips.
· Superior Performance: With non-failing light designs.
 |
 |
Customized Service is available, click here to get more information.
Want to try our product sample >>Click here!
- Single Color Light On/Off Control Configuration
- Single Color Light Hardwired Dimming Control Configuration

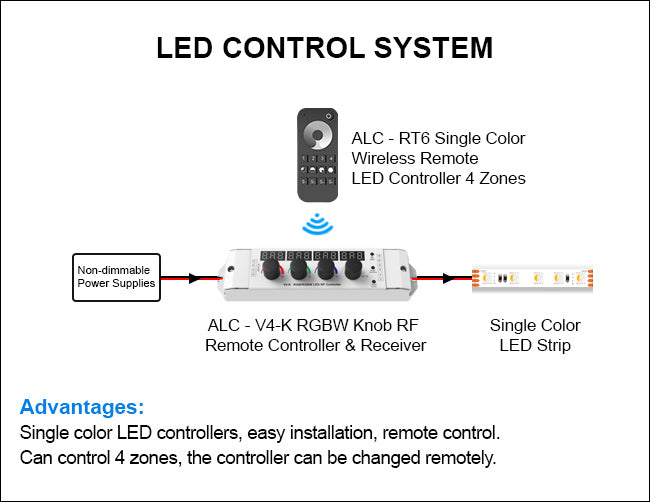

- Single Color Light Wireless Dimming Control Configuration

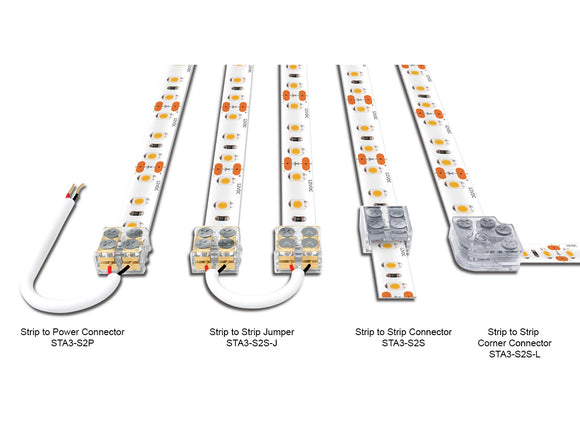

Compatible Connectors:
 |
 |
 |
 |
 |
| Strip to Strip Connector | Strip to Strip Corner Connector | Strip to Power Connector | Strip to Strip Jumper |
Transformer Recommendation for LED Strip Light - Single Color - COB (4.4W/ft)
For Indoor Use: (use 80% capacity)
| Length of Strip Light(ft) | 0-1 | 0-6 | 0-6 | 0-10 | 0-10 | 0-17 |
| Transformer | APV-8W-24V | APV-35W-24V | YHY-36W-24V | YHY-60W-24V | LPV-60W-24V | TPZ-96W-24V |
| Length of Strip Light(ft) | 0-18 | 0-27 | 0-36 | 0-58 | 0-109 | ** |
| Transformer | XLG-100W-24V | XLG-150W-24V | XLG-200W-24V | HLG-320W-24V | HLG-600W-24V | ** |
| Length of Strip Light(ft) | 0-4 | 0-27 | 0-36 | ** | ** | ** |
| Dimmable Transformer | P-25W-24V | P-150W-24V | P-200W-24V | ** | ** | ** |
| Length of Strip Light(ft) | 0-5 | 0-10 | 0-17 | 0-27 | 0-36 | 0-54 |
| Dimmable Transformer | F-30W-24V | G-60W-24V | G-96W-24V | F-150W-24V | F-200W-24V | G-300W-24V |
| Length of Strip Light(ft) | 0-6 | 0-11 | 0-17 | 0-22 | 0-36 | 0-68 |
| Transformer | LPV-60W-24V | XLG-100W-24V | XLG-150W-24V | XLG-200W-24V | HLG-320W-24V | HLG-600W-24V |
| Length of Strip Light(ft) | 0-17 | 0-22 | ** | ** | ** | ** |
| Dimmable Transformer | P-150W-24V | P-200W-24V | ** | ** | ** | ** |
| Length of Strip Light(ft) | 0-3 | 0-6 | 0-10 | 0-17 | 0-22 | 0-34 |
| Dimmable Transformer | F-30W-24V | G-60W-24V | G-96W-24V | F-150W-24V | F-200W-24V | G-300W-24V |
More LED Strip Lights:
|
Model
|
||||
|
|
 |
 |
 |
 |
|
Price
|
$
|
$$
|
$$$
|
$$
|
|
LED Color
|
2700K
3000K 4000K |
2700K
3000K 4000K |
1800K
2700K 3000K 4000K 6500K |
2700K
3000K 3500K 4000K |
|
Brightness
|
up to 348 lm/ft
|
up to 575 lm/ft
|
up to 848 lm/ft
|
up to 234 lm/ft
|
|
LED Density
|
36 LEDs/ft
|
73 LEDs/ft
|
73 LEDs/ft
|
36 LEDs/ft
|
|
Power Consumption
|
3 W/ft
|
4.4 W/ft
|
7 W/ft
|
3 W/ft
|
|
Efficacy
|
up to 116 lm/W
|
up to 130 lm/W
|
up to 121 lm/W
|
up to 78 lm/W
|
|
CRI
|
90+
|
90+
|
94+
|
90+
|
|
IP Rating
|
Dry Location
|
Dry Location
|
Dry Location
|
Dry Location
|
|
Length
|
16.4ft
|
16.4ft
|
16.4ft
|
32.8ft
|
|
Input
|
12V/24V DC
|
24V DC
|
24V DC
|
24V DC
|
|
No Voltage Drop
|
16.4ft
|
16.4ft
|
16.4ft
|
65.6ft
|
Frequently bought together:
 |
 |
 |
 |
| All LED Strip Light | All LED Controller | All LED Transformer | All Aluminum Channel |
Q&A:
What is the difference between COB and SMD LED lights?
COB (Chip-on-Board) and SMD (Surface Mount Device) are two different types of LED lights that differ in how the LED chips are packaged and mounted.
COB LEDs, as mentioned earlier, have multiple LED chips mounted directly onto a circuit board, resulting in a high level of brightness and a wide beam angle. Because the LEDs are packed so tightly, COB LEDs can produce a lot of light in a small space, making them ideal for applications that require high levels of brightness, such as floodlights and spotlights.
SMD LEDs, on the other hand, have individual LED chips mounted on a surface, typically a printed circuit board. They are generally smaller than COB LEDs and are widely used in small, compact devices like smartphones and televisions. SMD LEDs are also more energy-efficient than COB LEDs, allowing them to produce more light per watt of energy consumed.
The main difference between COB and SMD LED lights lies in their packaging and mounting methods, resulting in differences in brightness, beam angle, and energy efficiency. Both types of LED lights have their unique advantages and disadvantages, and the choice of which one to use will depend on the specific application requirements.
|
Instruction Video: How to Prevent Voltage Drop Instruction Video: How to Cut & Solder Your Low Voltage LED Strip Light |
