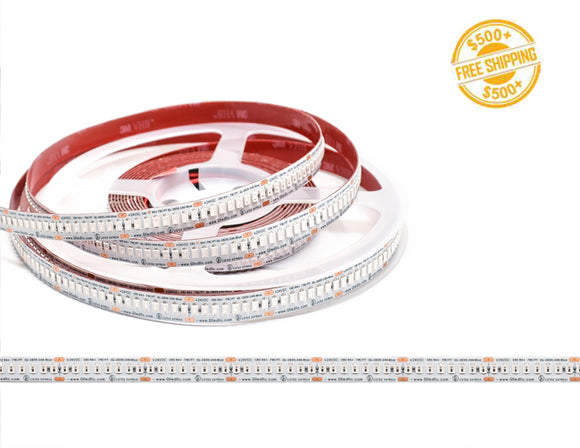

LED Strip Light - Single Color - Ultra Bright - LEGEND BLUE- Dry Location IP20 - 24V

SKU: GL-2835-240-BLUE-24V-IP20

Login to view price

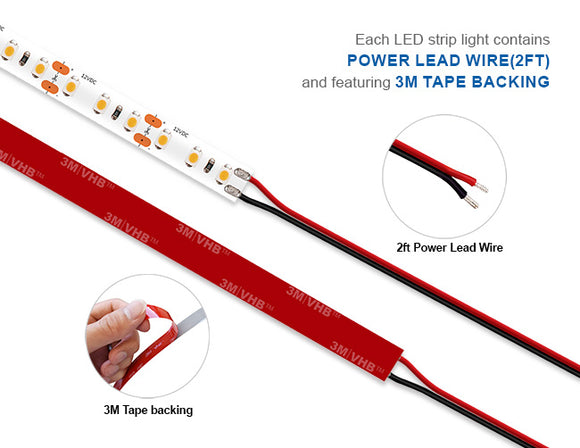

LEGEND Series BLUE LED strip light emits up to 40 lumens per foot of blue color light. The high-density LED tape light can be easily cut into separate 8-LED segments (1 5/16 inches) and installed with its peel-and-stick 3M VHB adhesive backing (Click to see How to apply 3M double-sided tape properly). Run the strip back to power every 16.4ft to avoid excessive voltage drop. Featuring 97+ CRI rating, this tape light is a solution for places where quality color rendering is needed. With superior brightness and no hotspot, it is great for display cases, kitchen counters, trade shows, galleries, videography, or any indoor applications where presentation, appearance, and depth of color are critical.

Features:
· Superior brightness with high density LEDs
· High CRI 97+ for the most realistic color
· Commercial-grade lighting

Customized Service is available, click here to get more information.

Want to try our product sample >>Click here!

LED Low Voltage Light System

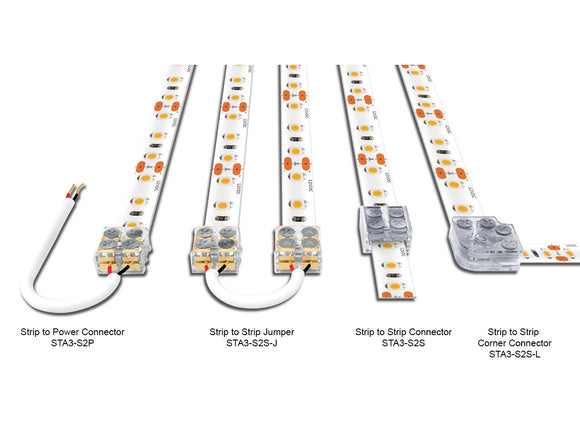

Compatible Connectors:

Strip to Strip Connector Strip to Strip Corner Connector Strip to Power Connector Strip to Strip Jumper

Transformer Recommendation for LED Strip Light - Single Color - LEGEND (7W/ft)

For Indoor Use: (use 80% capacity)
Length of Strip Light(ft) 0-0 0-4 0-4 0-6 0-6 0-10
Transformer APV-8W-24V APV-35W-24V YHY-36W-24V YHY-60W-24V LPV-60W-24V TPZ-96W-24V
Length of Strip Light(ft) 0-11 0-17 0-22 0-36 0-68 **
Transformer XLG-100W-24V XLG-150W-24V XLG-200W-24V HLG-320W-24V HLG-600W-24V **

Length of Strip Light(ft) 0-2 0-17 0-22 ** ** **
Dimmable Transformer P-25W-24V P-150W-24V P-200W-24V ** ** **
Length of Strip Light(ft) 0-3 0-6 0-10 0-17 0-22 0-34
Dimmable Transformer F-30W-24V G-60W-24V G-96W-24V F-150W-24V F-200W-24V G-300W-24V
For Outdoor Use: (use 50% capacity)
Length of Strip Light(ft) 0-4 0-7 0-10 0-14 0-22 0-42
Transformer LPV-60W-24V XLG-100W-24V XLG-150W-24V XLG-200W-24V HLG-320W-24V HLG-600W-24V

Length of Strip Light(ft) 0-10 0-14 ** ** ** **
Dimmable Transformer P-150W-24V P-200W-24V ** ** ** **
Length of Strip Light(ft) 0-2 0-4 0-6 0-10 0-14 0-21
Dimmable Transformer F-30W-24V G-60W-24V G-96W-24V F-150W-24V F-200W-24V G-300W-24V

More LED Strip Lights:
Model
LEGEND
Price
$
$$
$$$
$$
LED Color
2700K
3000K
4000K
2700K
3000K
4000K
1800K
2700K
3000K
4000K
6500K
2700K
3000K
3500K
4000K
Brightness
up to 348 lm/ft
up to 575 lm/ft
up to 848 lm/ft
up to 234 lm/ft
LED Density
36 LEDs/ft
73 LEDs/ft
73 LEDs/ft
36 LEDs/ft
Power Consumption
3 W/ft
4.4 W/ft
7 W/ft
3 W/ft
Efficacy
up to 116 lm/W
up to 130 lm/W
up to 121 lm/W
up to 78 lm/W
CRI
90+
90+
94+
90+
IP Rating
Dry Location
Dry Location
Dry Location
Dry Location
Length
16.4ft
16.4ft
16.4ft
32.8ft
Input
12V/24V DC
24V DC
24V DC
24V DC
No Voltage Drop
16.4ft
16.4ft
16.4ft
65.6ft

Frequently bought together:

LED Strip Light
LED Controller
LED Power Supply
LED Aluminum Channel
All LED Strip Light All LED Controller All LED Transformer All Aluminum Channel



Q&A:

What's the difference between 12V and 24V LED strip lights?

The key difference between 12V and 24V LED strips is their operational voltage. 12V LED strips work on a 12V voltage, while 24V LED strips require a 24V voltage. The power supply and wiring for 24V LED strips need to handle higher voltage than those for 12V LED strips, enabling a longer run length for 24V LED strips due to less voltage drop.

It's vital to match the transformer to the LED strip voltage. A 12V transformer is needed for a 12V LED strip, and a 24V transformer for a 24V LED strip. Mismatching can lead to damage or malfunction of the LED strip lights.



Instruction Video: How to Prevent Voltage Drop

Instruction Video: How to Cut & Solder Your Low Voltage LED Strip Light

  • Model No: Single Color - Ultra Bright - LEGEND - Dry Location IP20 - 24V, SKU: GL-2835-240-BLUE-24V-IP20
  • Operation Voltage: 24VDC
  • Wattage per ft: 7W/ft
  • LED per ft: 73 LEDs/ft
  • Brightness/Lumen per ft: 40 LM/ft
  • Dimension: L 16.4', W 0.39", D 0.07"
  • Dimming Method: PWM, Forward phase, Triac, 0-10V, MLV, ELV
  • Work Environment/IP Rating: IP20 (Non-waterproof)
  • Long Lifetime: 50,000hrs
  • Color: Blue
  • Beam Angle: 120°
  • Cuttable Increments: 1.31"
  • One Run Max (No Voltage Drop): 16.4'
  • Certification: UL
  • Warranty: Limited 7 years warranty
  • 3M tape on the back

LED Strip Light Specification - LEGEND IP20
Low Voltage LED Strip Light Installation Manual
