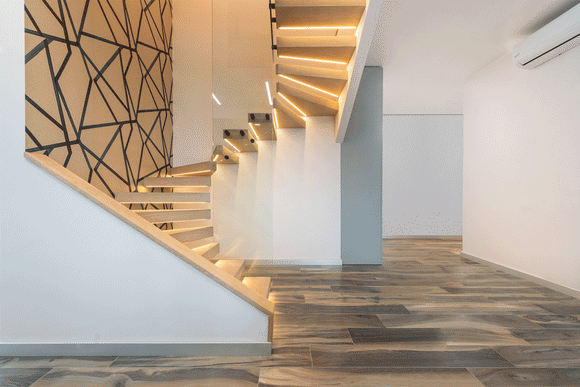

The DIM to Warm series offers seamless color temperature adjustment from a soft 1800K to a warm 3000K with smooth brightness transitions. Compatible with standard TRIAC dimmer, it's perfect for creating a relaxing atmosphere or bright functional lighting in spaces like kitchens, living rooms, and bedrooms. With higher light efficiency, it provides brighter, more uniform lighting with lower energy consumption, making it the ideal solution for both warmth and practicality. (Click to see How to apply 3M double-sided tape properly).
Features:
|
Applications:
|
Specifications:
Input Voltage ![]() |
24VDC |
LED Quantity ![]() |
48 LEDs/ft |
Dimmable ![]() |
TRIAC, 1-10V, PWM |
No Voltage Drop ![]() |
16.4 ft Max |

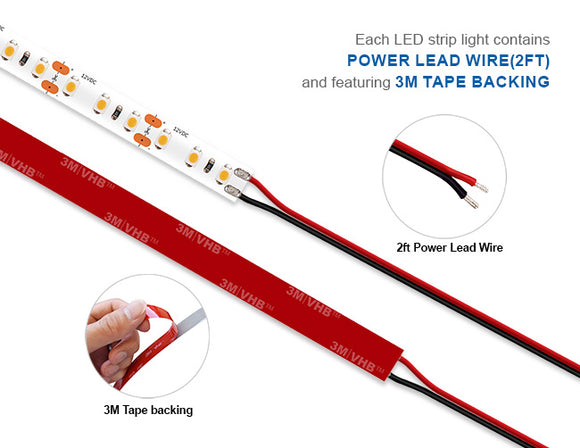

Lead Wire ![]() |
20 AWG, 2ft (2 Wires) |
LED Chip |
2835 |
Color Temperature ![]() |
1800K~3000K |
Operating Ambient Temperature |
-13°F~104°F |
Brightness |
462 lm/ft |
LED Lifetime |
50,000 hrs |
Light Efficacy ![]() |
105 lm/W |
Color Rendering Index (CRI) ![]() |
>90 |
Power Consumption ![]() |
4.4 W/ft |
IP Rating
![]() |
IP20 (Dry location) |
Documents:
LED Strip Light Specification - DIM TO WARMLow Voltage LED Strip Light Installation Manual
View Accessories
Power Supply Calculator – Designed just for You
Enter your LED strip light length and wattage per foot, get the power supply you need in seconds.
Power Calculator
The power supply you need is
Based on the result, round up and select the nearest higher power supply to ensure sufficient capacity.
How to Choose the Right LED Controller for Your LED Lighting Project? Find Out >>
Go To Dimmers & Controllers Page >>>
Use aluminum channels – For a clean, finished look, not only improves appearance, but also helps with heat dissipation and light diffusion.
Go To Aluminum Channels Page >>>
Dimming, Non-Dimming & RGB — the right configuration matters.
Discover how to pick LED strips, power supplies, and dimmers the right way.
READ MORE >>>
LED Strip Lights FAQs
What is Color Temperature?
Color temperature, measured in Kelvin (K), refers to the perceived color of a light source. Generally: Higher Kelvin values produce a whiter or bluish light. Lower Kelvin values produce a warmer or yellowish light. Read More >>
What is the difference between 12V and 24V LED strip lights?
The power supply and wiring for 24V LED strips need to handle higher voltage than those for 12V LED strips, enabling a longer run length for 24V LED strips due to less voltage drop. Read More >>
When To Choose High Voltage or Low Voltage LED Strip Lights?
Choosing between high voltage and low voltage LED strip lights depends on various factors such as the scope and type of your project, the degree of customization and control needed, and your budget. Read More >>
Customized Service is available, click here to get more information.
