The G-24150-DWL (waterproof) and G-24150-DWS (non-waterproof) LED Slim Dimmable Drivers are engineered for construction professionals and lighting engineers. With a universal 110-277V AC input, 24V stable DC output, and 5-in-1 dimming compatibility (Triac, 0-10V, PWM, ELV ), they provide smooth, flicker-free dimming for commercial, residential, and architectural lighting projects. UL listed, T24 & JA8 compliant, and IP66 waterproof (DWL model), these compact drivers ensure reliable performance in diverse environments. 5-year warranty for long-term dependability.
Key Features
5-in-1 Dimming Compatibility – Works with Triac, 0-10V, PWM, ELV dimmers.
Stable 24V DC Output – Ensures flicker-free performance for LED strip lighting, display lighting, and architectural fixtures.

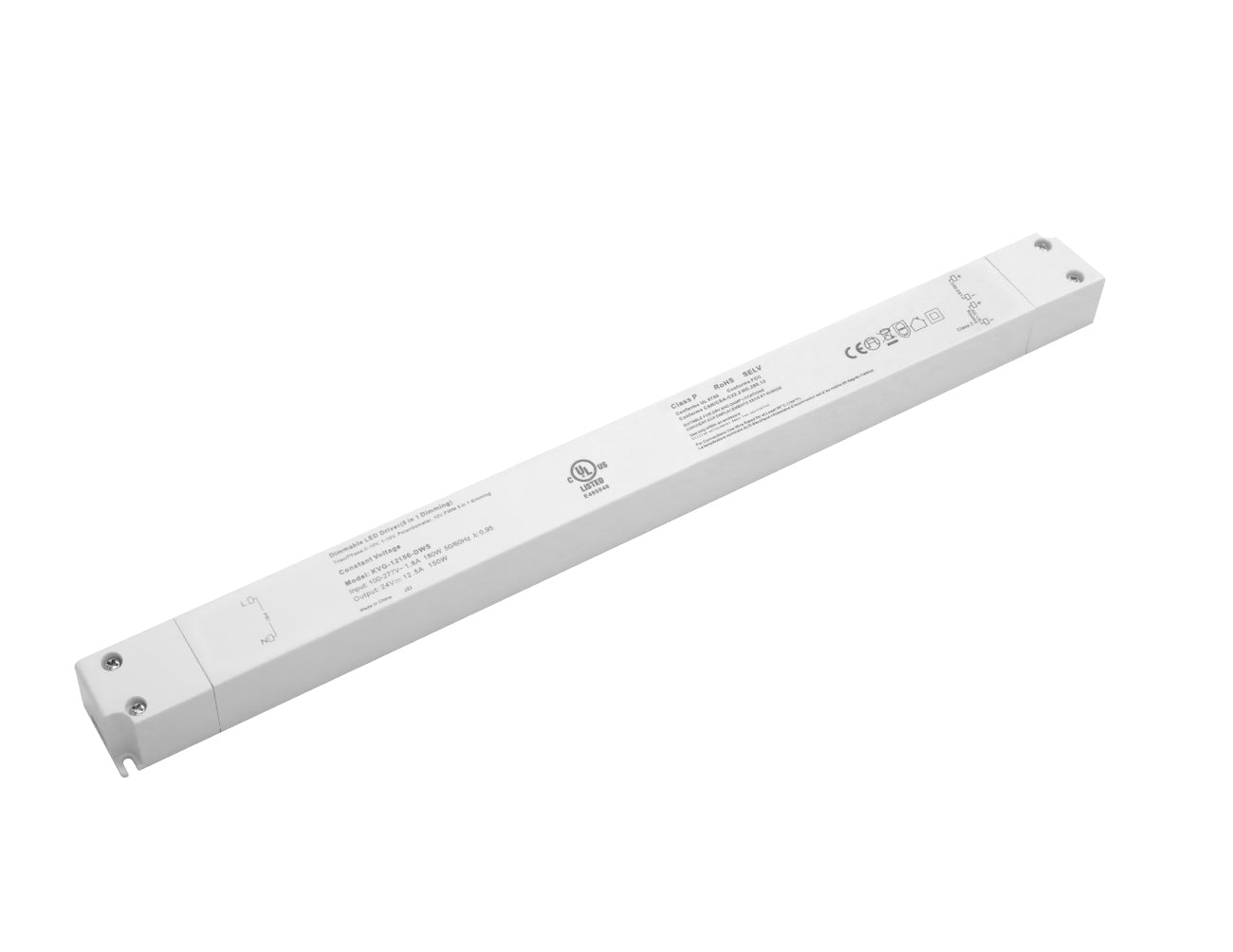

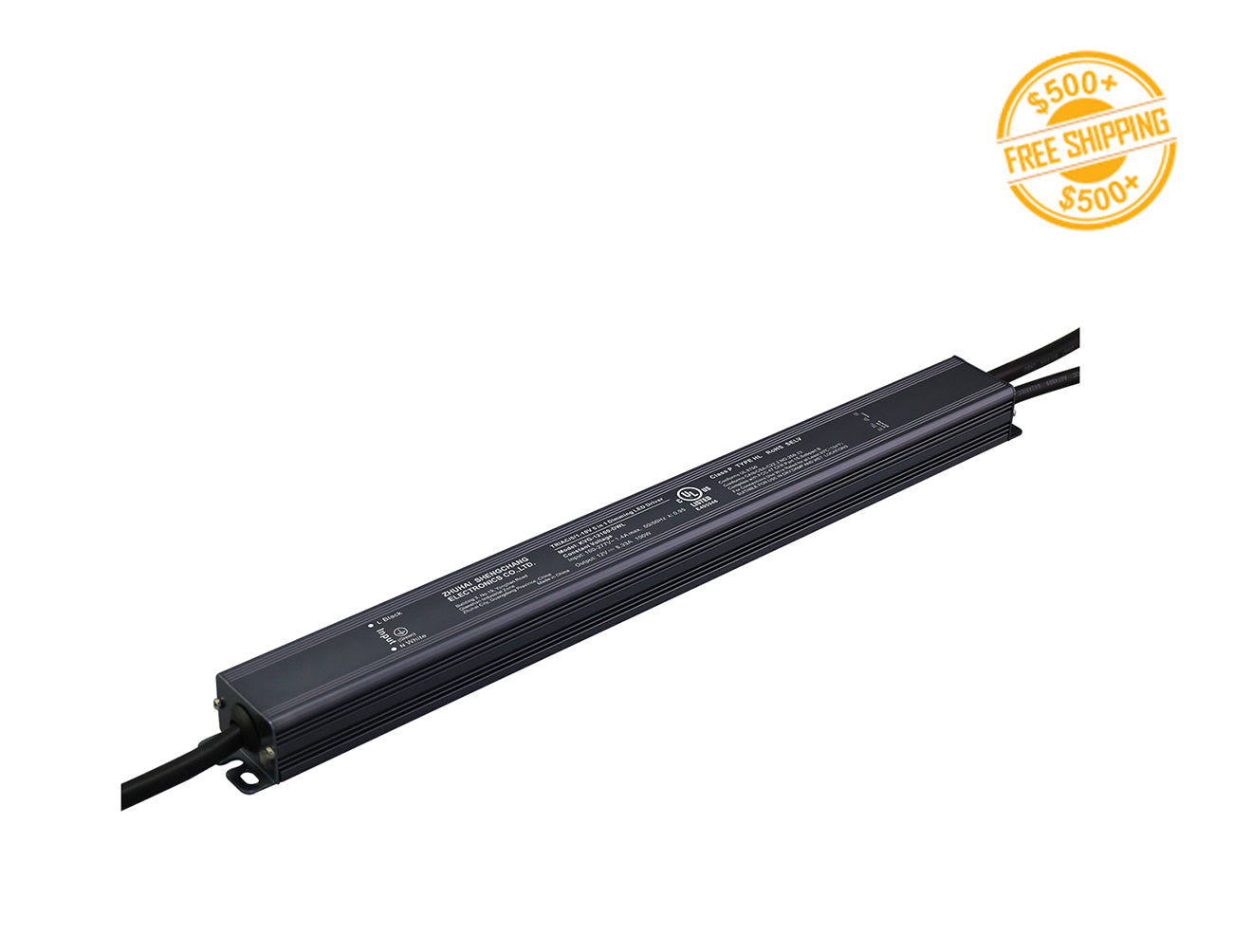

Waterproof & Non-Waterproof Options – G-24150-DWL (IP66-rated) for outdoor and wet locations; G-24150-DWS for indoor dry & damp locations.
UL Listed & Energy Efficient – Compliant with T24 & JA8 standards, perfect for professional lighting installations.
Compact & Slim Design – Fits into tight spaces, ideal for architectural and commercial projects.
Reliable & Safe – Short circuit, overload, and thermal protection for long-term stability.
5-Year Warranty – Guaranteed quality and long-lasting performance.
Recommended Applications
Commercial & Industrial Lighting – Ideal for retail spaces, shopping malls, and office lighting.
Architectural LED Lighting – Perfect for cove, accent, and linear LED installations.
Outdoor & Landscape Lighting (DWL Model) – Suitable for garden, pathway, and façade lighting.
Residential Smart Lighting – Works with home automation systems and dimmable LED fixtures.
Signage & Display Lighting – Delivers smooth, high-accuracy dimmable illumination for exhibitions and retail displays.
 |
 |
| Model | Input Voltage Range | Output Voltage | Max Output Current | Max Output Power | Weight | Protection Rating | Output Type | Standards | Dimming Method |
|---|---|---|---|---|---|---|---|---|---|
| G-24060-DWL | 100-277V AC | 24V ±0.5V | 2.5A | 60W | 0.35KG | Dry, Damp & Wet | 20kHz PWM | UL listed, Meets T24, JA8 Test | Triac/Phase & 0/1-10V 5 in 1 |
| G-24100-DWL | 100-277V AC | 24V ±0.5V | 4.16A | 100W | 0.48KG | Dry, Damp & Wet | 20kHz PWM | UL listed, Meets T24, JA8 Test | Triac/Phase & 0/1-10V 5 in 1 |
| G-24150-DWL | 110-277V AC | 24V ±0.5V | 6.25A | 150W | 0.50KG | Dry, Damp & Wet | 20kHz PWM | UL listed, Meets T24, JA8 Test | Triac/Phase & 0/1-10V 5 in 1 |
| G-24150-DWS | 110-277V AC | 24V ±0.5V | 6.25A | 150W | 0.35KG | Dry & Damp | 20kHz PWM | UL listed, Meets T24, JA8 Test | Triac/Phase & 0/1-10V 5 in 1 |
| G-24150-DWL | 110-277V AC | 24V ±0.5V | 6.25A | 150W | 0.50KG | Dry, Damp & Wet | 20kHz PWM | UL listed, Meets T24, JA8 Test | Triac/Phase & 0/1-10V 5 in 1 |
Frequently bought together:
 |
 |
 |
 |
| All LED Strip Light | All LED Controller | All LED Transformer | All Aluminum Channel |
Q&A:
How to select a dimmable transformer for LED lights?
The following factors needs to considered when selecting a dimmable transformer for LED lights: (1) Check compatibility with your specific LED lights; (2) Determine the dimming method (PWM or analog) and choose a transformer accordingly; (3) Consider the desired dimming range and ensure the transformer supports it; (4) Verify the transformer's load capacity meets or exceeds the total wattage of your LED lights; (5) Choose a reputable manufacturer for quality and reliability; (6) Ensure compatibility with your chosen dimmer switch or controller; (7) Look for relevant certifications and standards.
|
Instruction Video: GL LED 5-in-1 G-series Transformer Instruction Video: How to choose your correct transformer |
