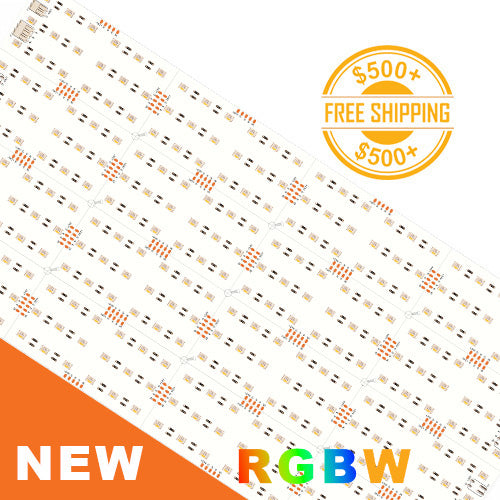

Product Details

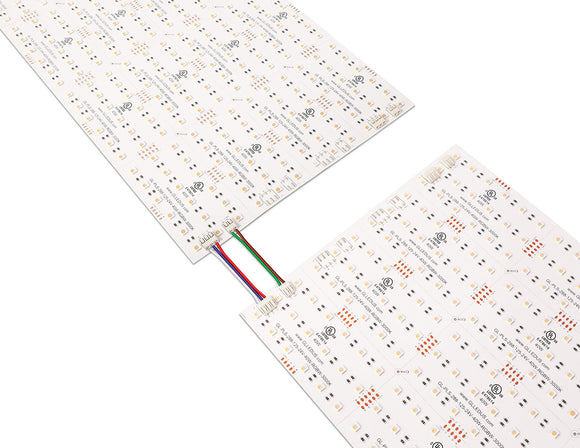

This versatile RGBW LED light sheet features pixel-level control, offering full customization, flexibility, and dynamic color-changing capabilities for a wide range of applications. Its uniform illumination makes it an ideal choice for backlighting, allowing it to easily conform to flat, curved, or tight spaces. Multiple sheets can be effortlessly linked together using onboard WAGO connectors or soldering connectors. With the ability to cut the sheet every 18 LEDs (approximately 11 square inches), it provides adaptability for smaller areas.

Compared to traditional single-color LED light sheets, the RGBW 4-in-1 variant offers an extended color spectrum to enhance your surroundings. Alongside the color possibilities created by RGB mixing, this light sheet also delivers a dedicated 3000K white color option, catering to various color temperature preferences.

Operating at a power consumption of 40W, the pixel LED RGBW light sheet produces an impressive brightness of up to 2506 lumens per sheet, ensuring both energy efficiency and vibrant illumination for your space.

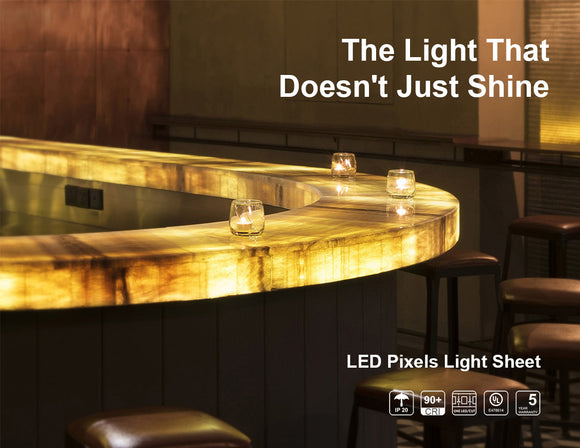

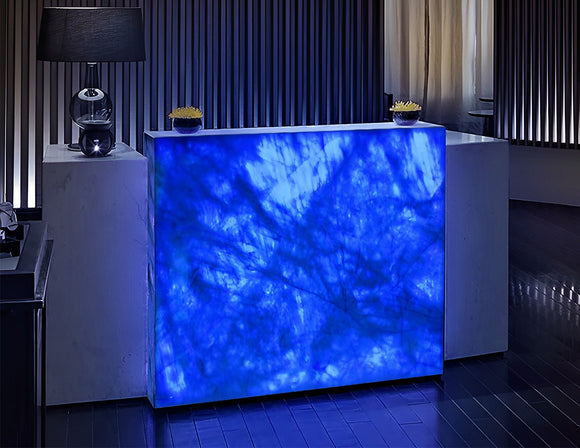

• Perfect for a backlight of showcases, billboards, translucent walls, and signage light boxes. Linkable by onboard WAGO connectors or soldering connectors.

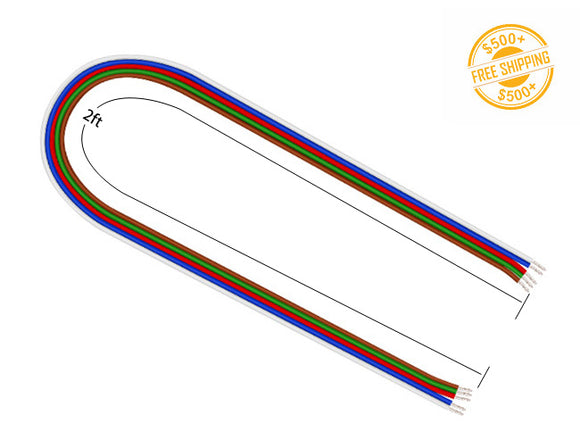

• Each sheet of LED pixels light contains 1 piece of Power Lead Wire and 1 piece of Jumper Wire.
• Easy installation featuring 300 LSE 3M tape backing.
• Color-changing and dimmable with optional DMX controllers.
• A minimum distance of 1.18 in. is recommended between the light sheet and a diffuser to achieve a spotless effect.

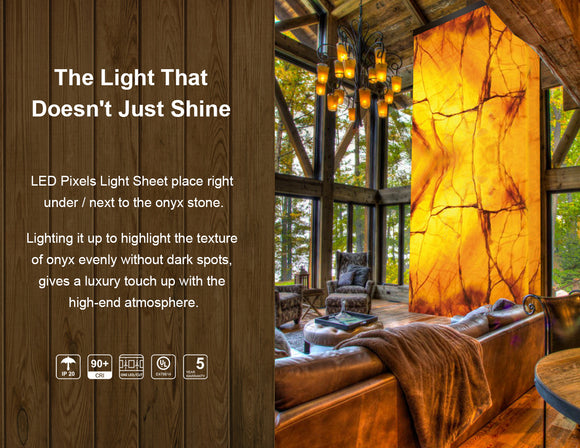

• Able to achieve a spotless effect when used as backlight for onyx surfaces with a distance of 0 in.
• UL listed, 50,000h long lifespan with 5 years limited warranty.

Specifications

Input Voltage × What is the input voltage of a low voltage LED strip light? GL LED low voltage strip lights are available in 12V or 24V DC. They require a compatible LED driver to convert standard 120V AC into safe low-voltage DC power. Using the wrong driver can lead to flickering, overheating, or permanent damage. Always match the power supply voltage to the LED strip’s rating. Proper voltage ensures consistent brightness, color accuracy, and a long lifespan. GL LED provides expert guidance and high-quality drivers for safe, efficient, and professional installations. Trust GL LED for reliable low voltage LED strip lighting solutions.	24VDC	LED Quantity × What Is LED Density (LEDs/ft)? This matters for exposed lighting—like under cabinets, shelves, or upscale interiors—where clean, even light gives a premium look. For example, our LEGEND series has 73 LEDs/ft, while COB offer 145–256 LEDs/ft for ultra-smooth, dot-free lighting. Choosing the right density ensures the best lighting quality and style.	288 LEDs/sheet
Controller	RGBW color changing controller	No Voltage Drop × What Is Voltage Drop in Low Voltage LED Strip Lights? Voltage drop happens when current loses strength due to resistance in wires or LED strips. It causes reduced brightness, color shifts, or flickering—especially at the far end. Always check the product specs. If the LED strip exceeds the max run length, connect another power feed to prevent uneven brightness.	6 sheets max
Wavelength	R: 620-625nm, G: 520-525nm, B: 465-470nm, W: 3000K	LED Chip	5050
Power Consumption × What Is Low Voltage LED Strip Light Power Consumption (W/ft)? Power use is measured in watts per foot (W/ft) and depends on brightness, LED density, and color setup. To calculate total power: Watts = W/ft × total length (ft) When choosing a power supply, always add a safety margin: • Indoor: ×125% • Outdoor: ×150–200% This ensures stable, efficient performance and protects the driver from overload.	40W/sheet	Operating Ambient Temperature	-4°F~113°F
Cuttable Increments	18 LED/cut	LED Lifetime	50,000 hrs
Lead Wire × What wire gauge (AWG) is used for low voltage LED strips? Wire gauge affects current capacity—lower numbers mean thicker wires. Choosing the right AWG prevents voltage drop, overheating, and fire risk, especially in long runs. At GL LED, most 12V/24V strips use 20 AWG, ideal for up to 10 ft and 5–11A loads. For longer runs or higher loads, 18 or 16 AWG is recommended to ensure brightness and safety. Read More >>>	20 AWG, 2ft (5 pin)	IP Rating	IP20 (Dry location)

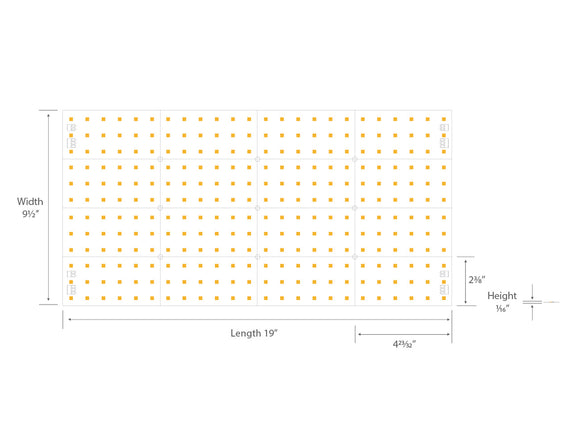

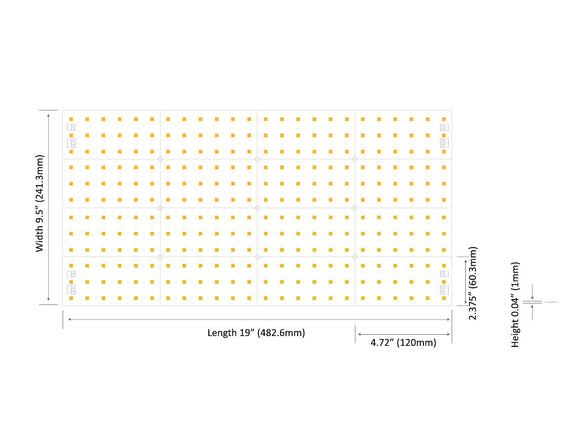

Color Rendering Index (CRI) × What is CRI(Color Rendering Index)? CRI (Color Rendering Index) measures how accurately a light source reveals true colors (scale 0–100). A CRI of 80+ is good for general lighting, while 90+ delivers high color fidelity, ideal for retail, medical, and photography. All GL LED strip lights feature CRI 90+ for vivid color, and the Legend series reaches CRI 97+ for exceptional color accuracy. Perfect for high-end lighting applications.	>90	Dimension	L 19", W 9.5", H 0.04"
Color × What is color temperature? Color temperature, measured in Kelvin (K), defines how warm or cool a light appears. Lower K values (like 2700K) create warm, yellowish tones; higher K values (like 4000K) produce cooler, bluish-white light. GL LED strip lights offer precise color consistency with 1-step MacAdam binning across all product lines. We follow ANSI C78.377-2017 and IES TM-30-18 standards to ensure excellent color accuracy and lighting quality. Whether you need cozy lighting for homes or bright, neutral tones for offices and retail, GL LED provides a full range of color temperatures to suit every space and design need. Read More >>>	Brightness	Efficacy × What Is Light Efficacy (lm/W)? Does High lm/W Affect CRI? Light efficacy (lm/W) shows how efficiently electricity is turned into visible light. Higher lm/W means more light per watt, saving energy and reducing heat. But as lm/W increases, CRI (Color Rendering Index) often drops. High-efficacy lights may appear bright but show colors poorly. Industrial lights favor lm/W, while retail and home lighting value high CRI for accurate, natural color.
Red	440 lm/sheet	11 lm/W
Green	940 lm/sheet	23.5 lm/W
Blue	184 lm/sheet	4.6 lm/W
White	980 lm/sheet	24.5 lm/W
RGB	1550 lm/sheet	387.5 lm/W
RGB+3000K	2506 lm/sheet	62.65 lm/W



Documents

LED Pixels Light Sheet RGBW Specification
LED Pixels Light Sheet RGBW IES File
LED Pixels Light Sheet Installation Manual
