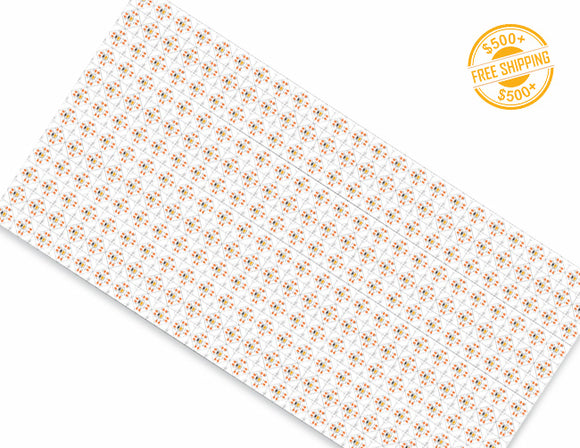

Discover the GL LED Pixels Light Sheet - Your Ultimate Customizable Lighting Solution

The GL LED Pixels Light Sheet is the ultimate in customizable and flexible uniform lighting, offering bright, even illumination without hot spots or the need for heat sinks.

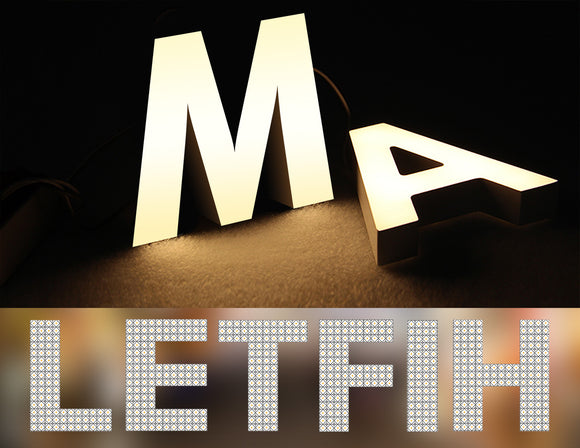

Easily field-cut along marked lines to create your own custom shapes of light to suit any project. With an ultra-thin 1/16" profile and bendable design, installation is simple on both flat and curved surfaces — even in narrow spaces.

Powering the light sheet is effortless: just daisy chain with the integrated push-in connectors for a quick, tool-free setup.

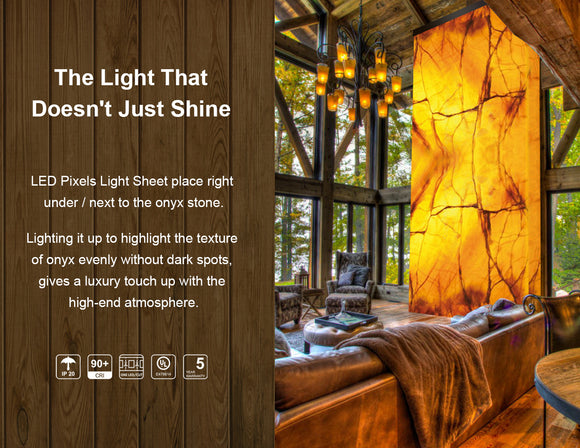

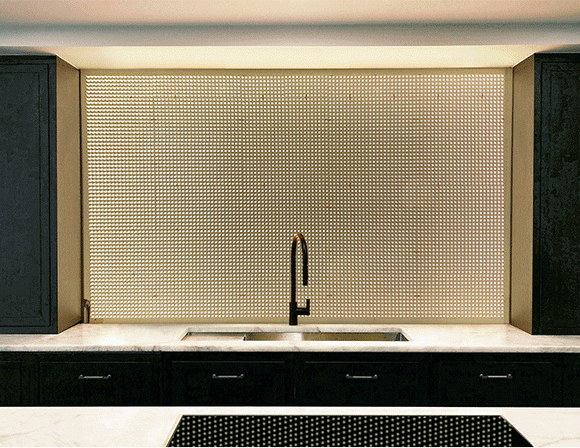

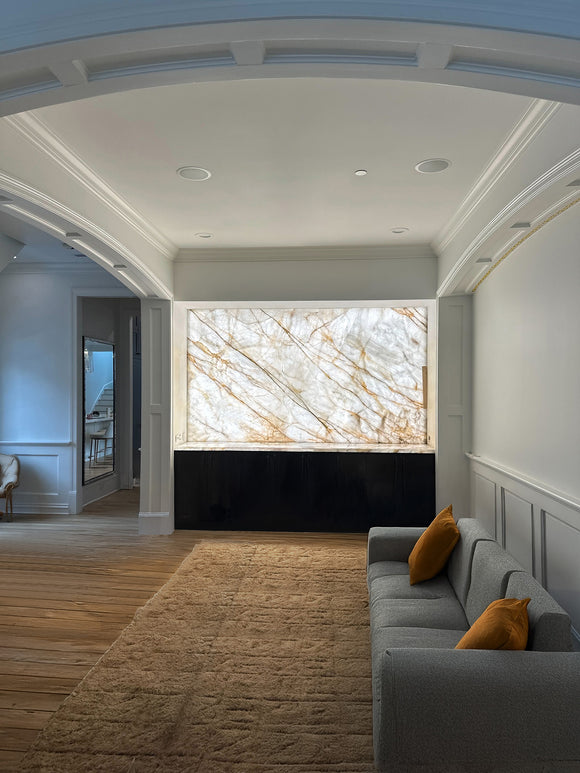

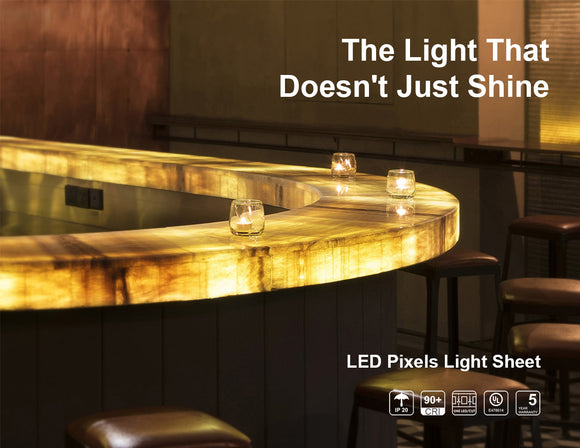

Ideal for backlighting translucent materials such as onyx stone, acrylic, or glass, this versatile light sheet is widely used in signage, trade shows, retail displays, and architectural accents.

Choose from two options to suit your needs:

• 30 watts/2350 lumens per square foot
• 10 watts/810 lumens per square foot

Both options are available in various color temperatures (2700K, 3000K, 4000K, or 5000K) to ensure your lighting perfectly matches your project requirements.

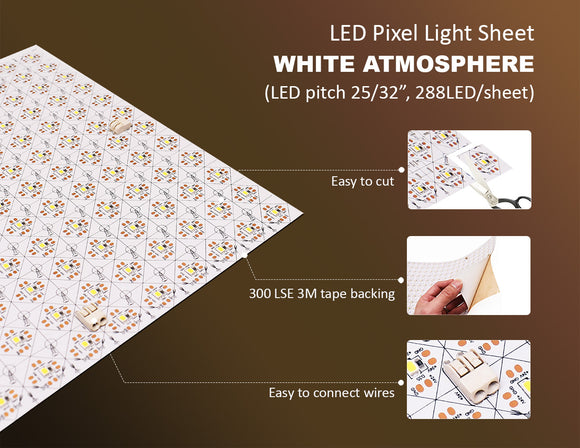

• Flexible and cuttable design allows for easy installation and illuminates every edge with light.
• Good for a backlight of showcases, billboard, translucent wall, and signage light box.
• Easy installation featuring 300 LSE 3M tape backing.
• 50,000h long lifespan with 5 years limited warranty.
• Dimmable available with PWM, Forward phase, Triac, 0-10V, MLV, ELV.

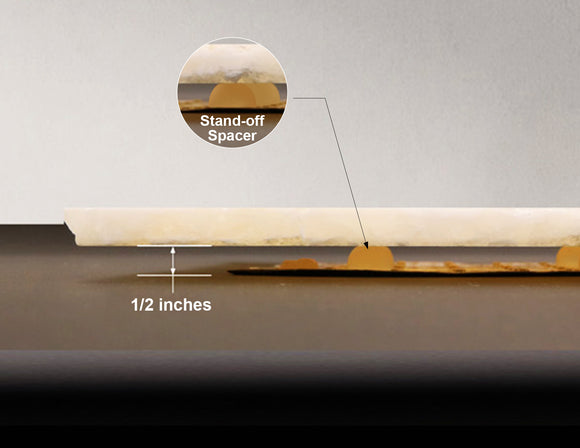

• For spotless effect, the distance between light sheet and diffuser should be ≥1.18 in.

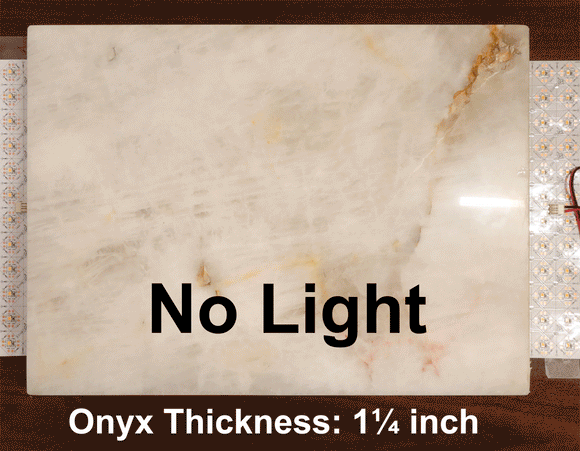

• Able to achieve spotless effect when used in a 1.12in onyx with a distance of 0 in.
• UL listed.

Note:
The GL LED Pixels Light Sheet is a single-color, dimmable 24V constant-voltage system and does not feature individual pixel (addressable) control. Read More >>>

Specifications

Input Voltage × What is the input voltage of a low voltage LED strip light? GL LED low voltage strip lights are available in 12V or 24V DC. They require a compatible LED driver to convert standard 120V AC into safe low-voltage DC power. Using the wrong driver can lead to flickering, overheating, or permanent damage. Always match the power supply voltage to the LED strip’s rating. Proper voltage ensures consistent brightness, color accuracy, and a long lifespan. GL LED provides expert guidance and high-quality drivers for safe, efficient, and professional installations. Trust GL LED for reliable low voltage LED strip lighting solutions.	24VDC	LED Quantity × What Is LED Density (LEDs/ft)? This matters for exposed lighting—like under cabinets, shelves, or upscale interiors—where clean, even light gives a premium look. For example, our LEGEND series has 73 LEDs/ft, while COB offer 145–256 LEDs/ft for ultra-smooth, dot-free lighting. Choosing the right density ensures the best lighting quality and style.	288 LEDs/sheet
Dimmable × Are LED strip lights dimmable? Yes, LED strip lights are dimmable. LEDs are naturally dimmable light sources. With a compatible power supply and dimmer, both single-color and color-changing strips can achieve smooth brightness control. GL LED offers a wide range of dimmable options, supporting PWM, Triac (forward phase), 0-10V, and ELV (reverse phase) dimming methods.Dimmable LED strips help save energy, extend lifespan, and create customizable lighting effects. GL LED helps customers select the right dimming system to ensure stable performance and meet specific lighting goals.	PWM, Forward phase, Triac, 0-10V, MLV, ELV	No Voltage Drop × What Is Voltage Drop in Low Voltage LED Strip Lights? Voltage drop happens when current loses strength due to resistance in wires or LED strips. It causes reduced brightness, color shifts, or flickering—especially at the far end. Always check the product specs. If the LED strip exceeds the max run length, connect another power feed to prevent uneven brightness.	12 sheets max
Color × What is color temperature? Color temperature, measured in Kelvin (K), defines how warm or cool a light appears. Lower K values (like 2700K) create warm, yellowish tones; higher K values (like 4000K) produce cooler, bluish-white light. GL LED strip lights offer precise color consistency with 1-step MacAdam binning across all product lines. We follow ANSI C78.377-2017 and IES TM-30-18 standards to ensure excellent color accuracy and lighting quality. Whether you need cozy lighting for homes or bright, neutral tones for offices and retail, GL LED provides a full range of color temperatures to suit every space and design need. Read More >>>	2700K, 3000K, 4000K, 5000K	LED Chip × 2835 vs. 3528 LED Chips – Which Is Best for Your LED Strip Light? 2835 and 3528 are popular SMD LED chips used in LED strip lights. 2835 (0.5W, CRI 97+) offers higher brightness, better heat dissipation, and excellent color accuracy—ideal for task or commercial lighting. 3528 (0.2W, CRI 90+) is best for accent or decorative use. All GL LED strips use gold-wire LEDs and 3oz copper PCBs for superior quality and long-term reliability.	2835
Power Consumption × What Is Low Voltage LED Strip Light Power Consumption (W/ft)? Power use is measured in watts per foot (W/ft) and depends on brightness, LED density, and color setup. To calculate total power: Watts = W/ft × total length (ft) When choosing a power supply, always add a safety margin: • Indoor: ×125% • Outdoor: ×150–200% This ensures stable, efficient performance and protects the driver from overload.	10W/sheet	Operating Ambient Temperature	-4°F~113°F
Cuttable Increments	1 LED/cut	LED Lifetime	50,000 hrs
Lead Wire × What wire gauge (AWG) is used for low voltage LED strips? Wire gauge affects current capacity—lower numbers mean thicker wires. Choosing the right AWG prevents voltage drop, overheating, and fire risk, especially in long runs. At GL LED, most 12V/24V strips use 20 AWG, ideal for up to 10 ft and 5–11A loads. For longer runs or higher loads, 18 or 16 AWG is recommended to ensure brightness and safety. Read More >>>	20 AWG, 2ft (2 Wires)	IP Rating	IP20 (Dry location)
Brightness	909 lm/sheet, 960 lm/sheet, 1010 lm/sheet	Color Rendering Index (CRI) × What is CRI(Color Rendering Index)? CRI (Color Rendering Index) measures how accurately a light source reveals true colors (scale 0–100). A CRI of 80+ is good for general lighting, while 90+ delivers high color fidelity, ideal for retail, medical, and photography. All GL LED strip lights feature CRI 90+ for vivid color, and the Legend series reaches CRI 97+ for exceptional color accuracy. Perfect for high-end lighting applications.	>90

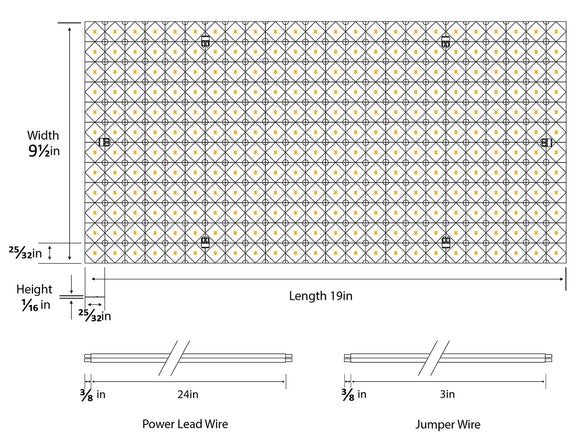

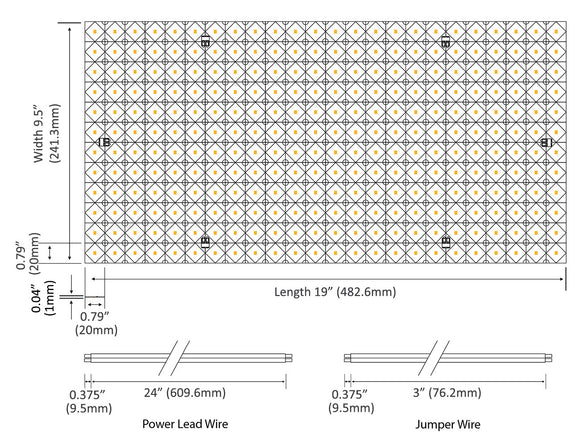

Efficacy × What Is Light Efficacy (lm/W)? Does High lm/W Affect CRI? Light efficacy (lm/W) shows how efficiently electricity is turned into visible light. Higher lm/W means more light per watt, saving energy and reducing heat. But as lm/W increases, CRI (Color Rendering Index) often drops. High-efficacy lights may appear bright but show colors poorly. Industrial lights favor lm/W, while retail and home lighting value high CRI for accurate, natural color.	91 lm/W, 96 lm/W, 101 lm/W	Dimension	L 19", W 9.5", H 0.04"



Documents

LED Pixels Light Sheet Specification
LED Pixels Light Sheet IES File
LED Pixels Light Sheet Installation Manual



Customized Service is available, click here to get more information.

Want to try our product sample >>Click here!





Dimming, Non-Dimming & RGB — the right configuration matters.
Discover how to pick LED strips, power supplies, and dimmers the right way.
READ MORE >>>





View Accessories







Power Supply Calculator – Designed just for You

Enter your LED strip light length and wattage per foot, get the power supply you need in seconds.

Power Calculator

LED Pixels Light Sheet Amount (sheet):

LED Light Power Consumption (W/ft): Choose LED power consumption 10W/sheet 30W/sheet 40W/sheet

Installation Environment: Choose using environment Indoor (125%) Regular-Outdoor (150%) Harsh-Outdoor (200%)

Calculate

The power supply you need is

Go To Dimmable Power Supply Page >>>

Go To Non-dimmable Power Supply Page >>>
