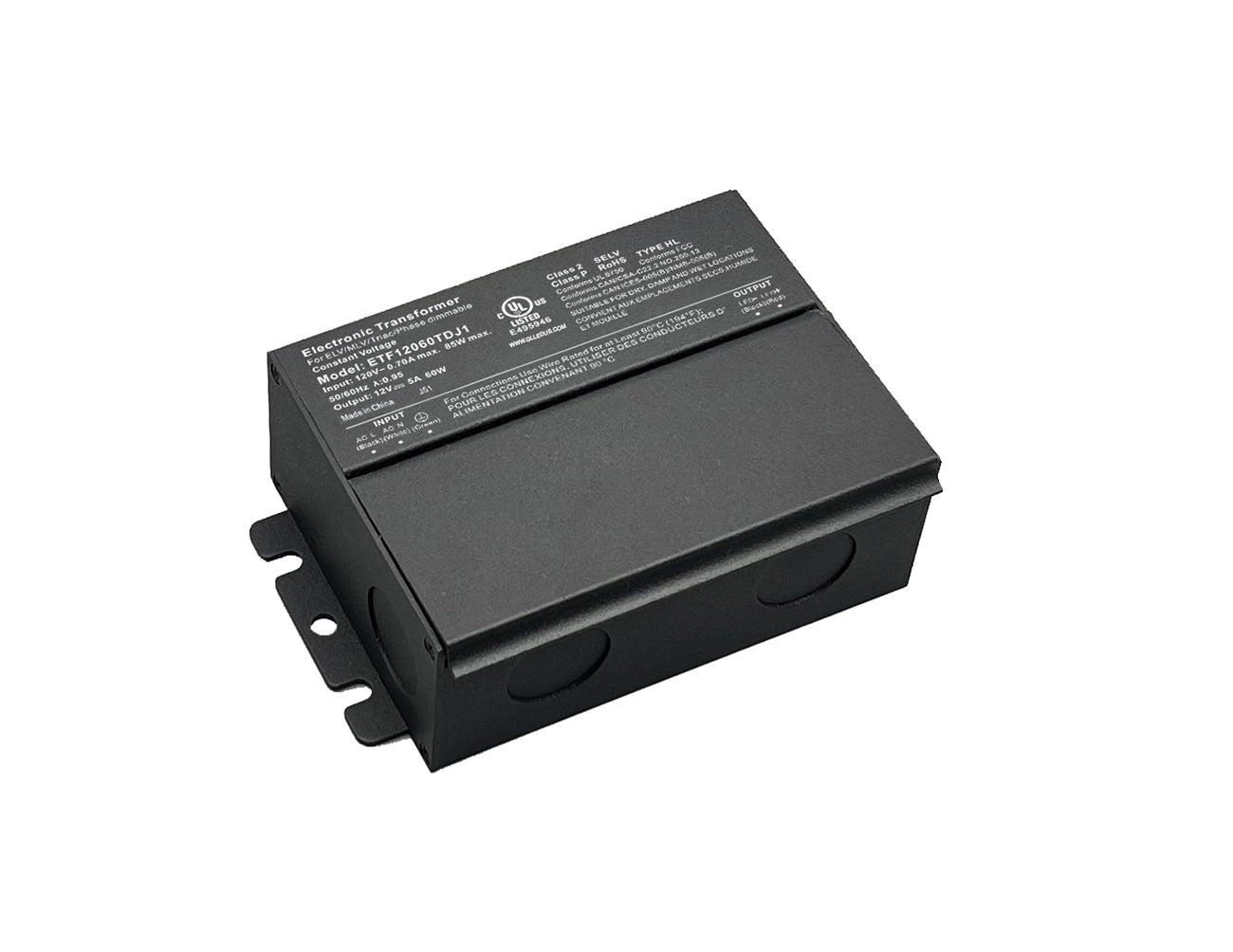

LED Dimmable Transformer - ELV Dimming - GLE-24096-TDJ

Product Details

The GLE-series is a compact and cost-effective constant voltage electronic transformer designed for architectural lighting projects. This UL/cUL-listed Class 2 power supply offers advanced features such as auto-reset functionality, over-temperature protection, short-circuit protection, and overload protection, ensuring safe and reliable operation, and is ideal for a wide range of lighting applications. It supports dimming and delivers optimal performance when used with ELV dimmers, ensuring smooth and stable dimming control. This transformer is an excellent choice for architects, contractors, and designers looking for a high-quality and affordable solution.

Dimming Compatibility: The GLE-series supports a smooth 0-100% dimming range and is compatible with most ELV dimmers on the market. For Triac or MLV dimming, use the recommended models for optimal performance.

Key Features

Constant Voltage Transformer: Provides stable 12V DC output for consistent lighting performance.

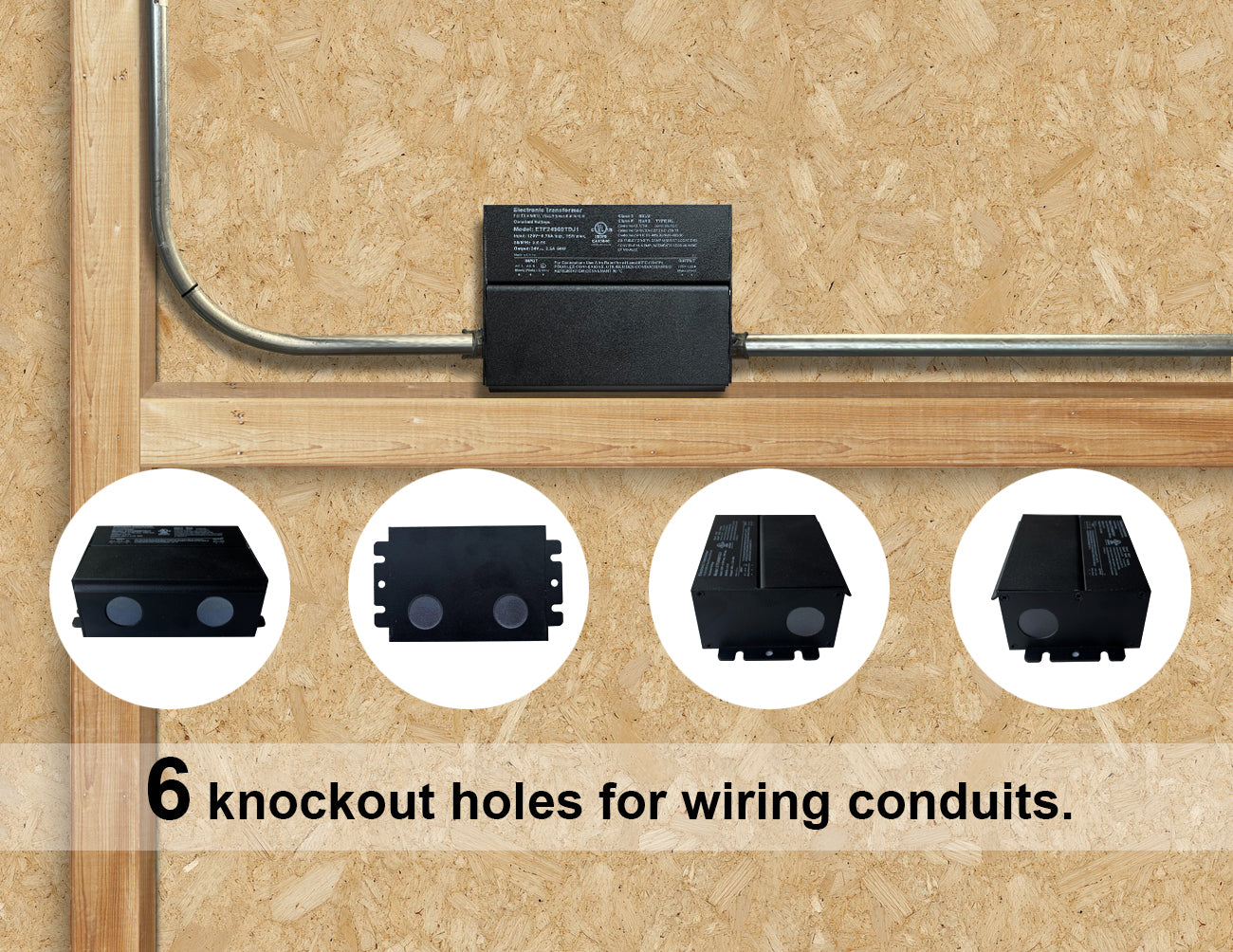

Compact Size: Fits standard 4-inch square junction boxes for easy installation.
Dimmable: Compatible with ELV dimmers, ensuring smooth and flicker-free dimming.
UL Certified: Meets U.S. safety standards for professional lighting installations.
Versatile Applications: Suitable for dry, damp, and wet locations.
Cost-Effective: High efficiency at an affordable price.
ELV Dimming range: 0-100%
5 years limited warranty.

Recommended Applications

Architectural lighting projects
Commercial and residential lighting installations
LED strip lighting systems
Indoor and outdoor ambient lighting

Step-by-Step: How to Choose the Right Power Supply for Your LED Setup

Start with your control method — then choose the matching power supply.

Decide Your Control Type First

Pick the control or dimming method that fits your lighting application:

• Triac Dimmer – Standard wall switch dimmer (common in homes)
• 0-10V Dimmer – Commercial dimming systems
• ELV Dimmer – Reverse phase dimming (quiet, smoother dimming)
• RGB/RGBW Controller – For color-changing LED strips
• No Dimming – Basic on/off control

Choose the Right Power Supply to Match

Select a power supply compatible with your control type:

• Triac Dimmer → Triac Dimmable Power Supply
• 0-10V Dimmer → 0-10V Dimmable Power Supply
• ELV Dimmer → ELV Dimmable Power Supply
• RGB/RGBW Controller → Standard Non-Dimmable Power Supply
• No Dimming → Standard Non-Dimmable Power Supply

Match the Output Voltage

Make sure your power supply output matches your LED strip voltage:

• 12V LED strips → Use a 12V power supply
• 24V LED strips → Use a 24V power supply

Size the Wattage Properly

Choose a power supply rated for more wattage than your LEDs consume:

• Indoor Installations → Total LED wattage × 1.25 (125%)
• Outdoor Installations → Total LED wattage × 1.5–2.0 (150–200%)

This provides:

• Overload protection
• Cooler operation
• Longer lifespan

Dimming, Non-Dimming & RGB — the right configuration matters.
