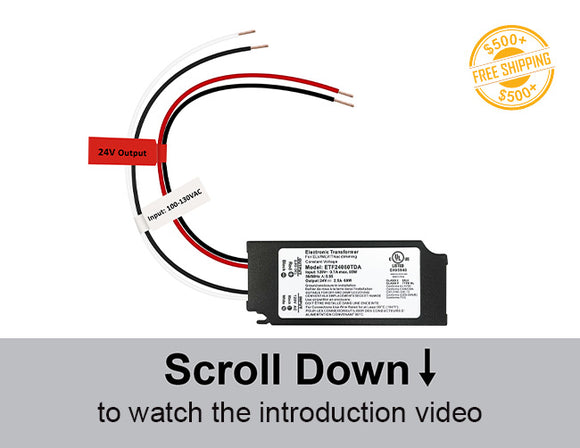

LED Dimmable Driver - Triac/ELV/MLV Dimming - ETF-96W-24V-TDA

Login to view price

ETF-TDA series 96W LED dimmable LED driver provides a smooth, stable, efficient, and flicker-free dimming capability for LED light fixtures. It is rated for both wet and dry locations.

Features:
• Output constant voltage.
• Universal AC input: 120VAC
• Protection: short circuit/over loading/over temperature.
• Full protection aluminum housing.
• Easy installation.
• Strong compatibility, flicker-free dimming.
Compatible with popular dimmers in the market, Lutron-CL, Diva series and so on
• Suitable for dry or damp location use, IP20.
• Dimming range: 0-100%
• 5 years limited warranty.
• ETL listed.

LED Low Voltage Light System

Frequently bought together:

LED Strip Light
LED Controller
LED Power Supply
LED Aluminum Channel
All LED Strip Light All LED Controller All LED Transformer All Aluminum Channel

Instruction Video: Dimmable Constant Voltage Transformers

Instruction Video: How to choose your correct transformer

  • Model No: ETF-96W-24V-TDA
  • Input Voltage: 120VAC
  • Output Voltage: 24VDC, Constant Voltage
  • Wattage: 96W
  • Rated Current: 4A
  • Power Factor: Up to 0.94
  • Class: Class 2

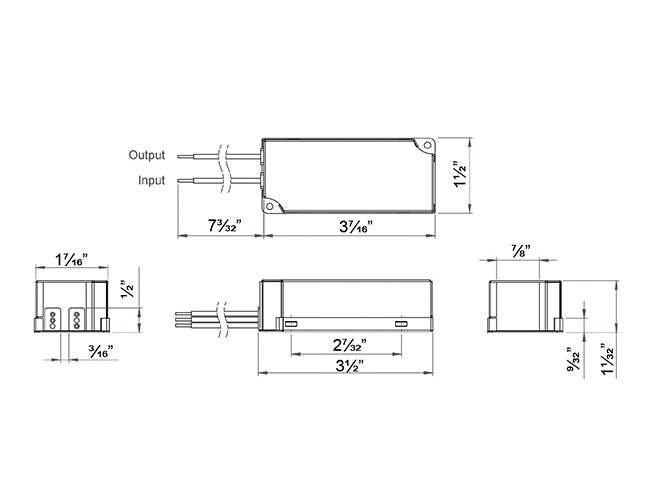

  • Dimension: L 3 7/16", W 1 1/2", H 1 1/32"
  • Dimming Method: : Electronic Transformer Triac/ ELV/ MLV dimming
  • Work Environment / IP Rating: dry location use, IP20
  • Installation Options: Surface Mounted
  • Working Temperature: -40~+140℉"
  • Certification: UL listed, Class 2, Class P, Type HL, SELV, RoHS
  • Warranty: 5 Years
  • Protection Method: Short-circuit / over-load protection

LED Dimmable Driver ETF24096TDA Specification
ETF series electronic transformer & Triac/Phase Dimmer List

Separate accessories are available

Power Cable

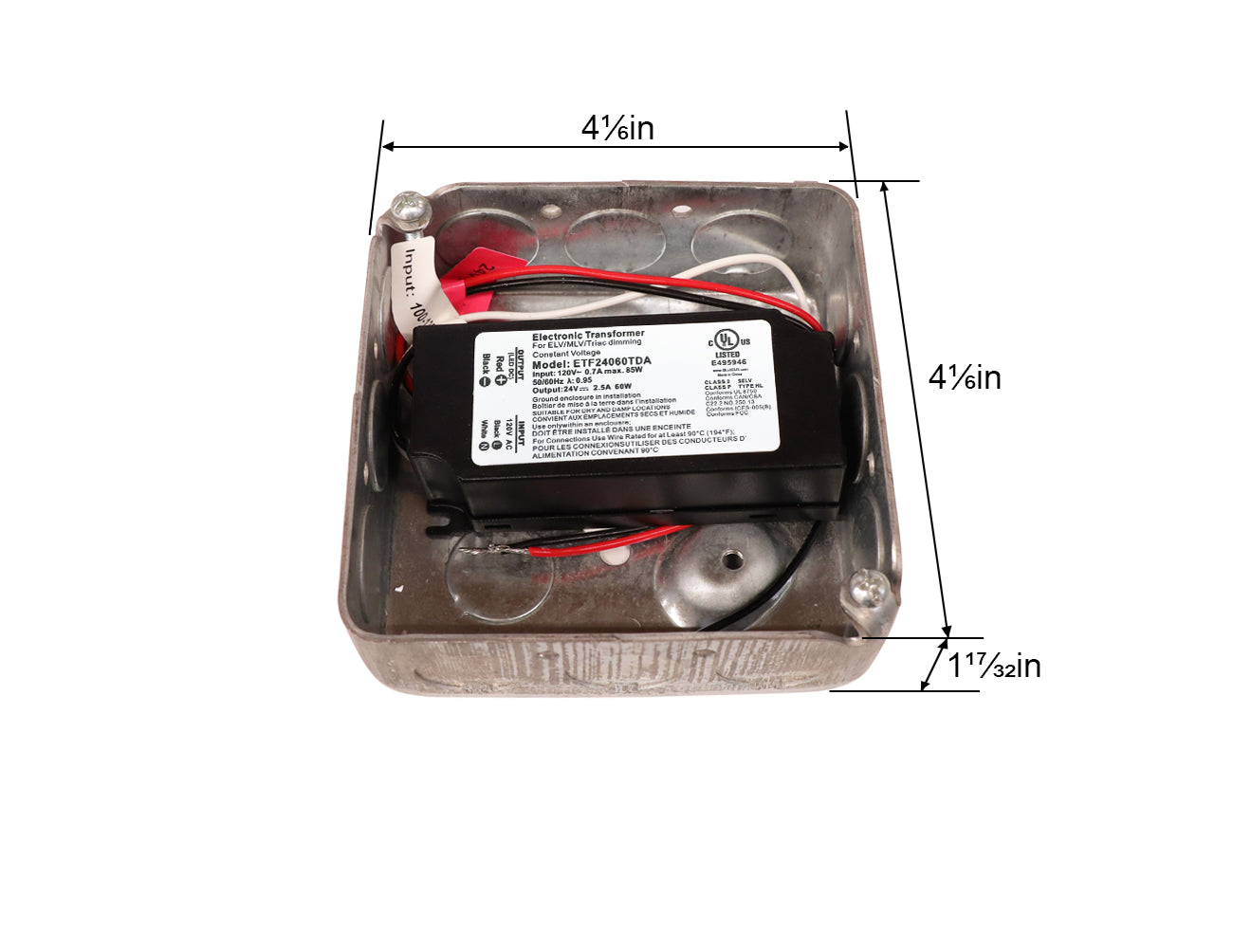

Junction Box

T Grid Mount Bracket
