Product Details

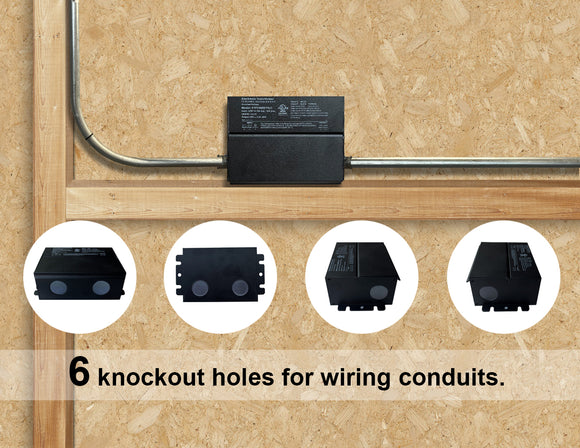

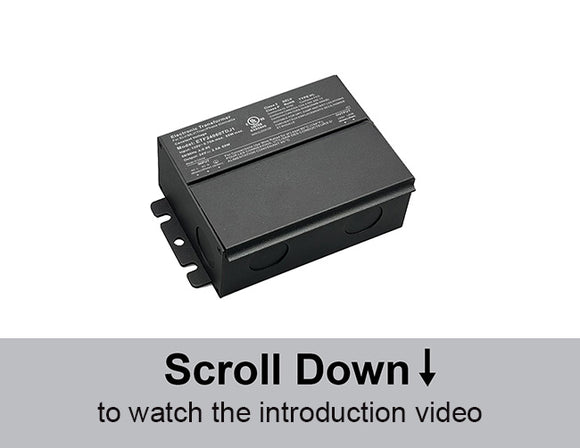

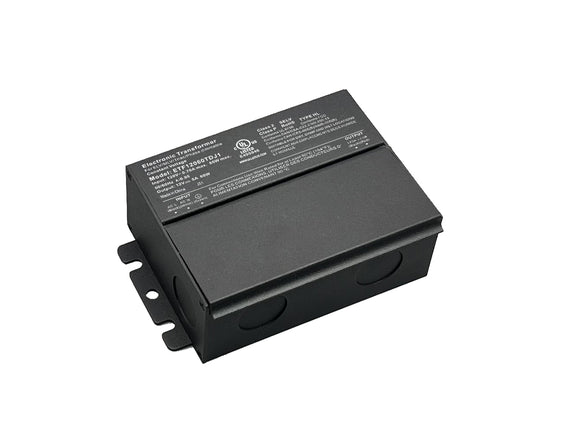

The GLE 60W 24V Dimmable LED Driver (TDJ Series) is a high-performance, constant voltage power supply designed for seamless compatibility with ELV dimmers 0-100% dimming range. Its compact aluminum housing with integrated junction box makes installation safe and efficient, while UL listing and Class P certification guarantee long-term reliability. Perfect for powering LED strip lights, under-cabinet lighting, and architectural fixtures, this driver is built for consistent performance in dry, damp, or wet locations.
Key Features
- ELV Dimming Compatibility – Works with ELV dimmers for lighting control.
- Flicker-Free Dimming – 0–100% smooth dimming range with strong compatibility across dimming systems.
- High Efficiency & Power Factor – Up to 88% efficiency and 0.94 PF for reduced energy waste.
- Durable Aluminum Housing – Provides full protection with superior heat dissipation.
- Wide Operating Conditions – Reliable performance in -40°F to +140°F and up to 95% RH.
- Certified & Safe – UL Listed, Class P, Type HL, SELV, and RoHS compliant for peace of mind.
Recommended Applications
- LED Strip Lighting – Consistent brightness and smooth dimming for accent and cove lighting.
- Under-Cabinet Lighting – Energy-efficient task lighting for kitchens, offices, and workspaces.
- Architectural & Retail Lighting – Highlight displays, shelves, and recessed lighting with precision.
- Residential Lighting Projects – Upgrade home lighting with ELV dimming control.
- Hospitality & Restaurants – Create warm, dimmable atmospheres for dining and lounge spaces.
- Outdoor & Damp Locations – Safe to use in covered patios, bathrooms, and wet-rated installations.
 |
 |
Specifications
| Type | GLE-24060-TDJ | GLE-24096-TDJ | GLE-24150-TDJ | GLE-24200-TDJ | GLE-24300-TDJ |
| Input Voltage | 120 VAC | ||||
| Input AC Current (Max.) | 0.93A | 0.93A | 1.31A | 1.78A | 2.67A |
| Output Voltage | 24VDC | ||||
| Output Power | 60W | 96W | 150W | 200W | 300W |
| Output Current | 2.5A | 4A | 6.25A | 8.34A | 12.5A |
| Certificate | UL listed, Class P, Type HL, SELV, RoHS | ||||
| Safety Standards | UL 8750 | ||||
| Warranty | 5 years | ||||
| Dimming Range | 0-100% | ||||
| Protections | Short Circuit, Over Loading, Over Temperature | ||||
| Work Environment | Dry / Damp / Wet Location | ||||
| Dimming Method | ELV | ||||
Documents
LED Dimmable Transformer GLE TDJ Specification
Compatible Dimmers For GLE Series
Technical Tips & Guidance
Step-by-Step: How to Choose the Right Power Supply for Your LED Setup
Dimming, Non-Dimming & RGB — the right configuration matters.
Discover how to pick LED strips, power supplies, and dimmers the right way.
Which LED Dimmable Power Supply is Right for You? GLE series vs. GLG series.
