Product Details
The GLE-series is a compact and cost-effective constant voltage electronic transformer designed for architectural lighting projects. This UL/cUL-listed Class 2 power supply offers advanced features such as auto-reset functionality, over-temperature protection, short-circuit protection, and overload protection, ensuring safe and reliable operation, and is ideal for a wide range of lighting applications. It supports dimming and delivers optimal performance when used with ELV dimmers, ensuring smooth and stable dimming control. This transformer is an excellent choice for architects, contractors, and designers looking for a high-quality and affordable solution.
Dimming Compatibility: The GLE-series supports a smooth 0-100% dimming range and is compatible with most ELV dimmers on the market. For Triac or MLV dimming, use the recommended models for optimal performance.
Key Features
- Constant Voltage Transformer: Provides stable 12V DC output for consistent lighting performance.

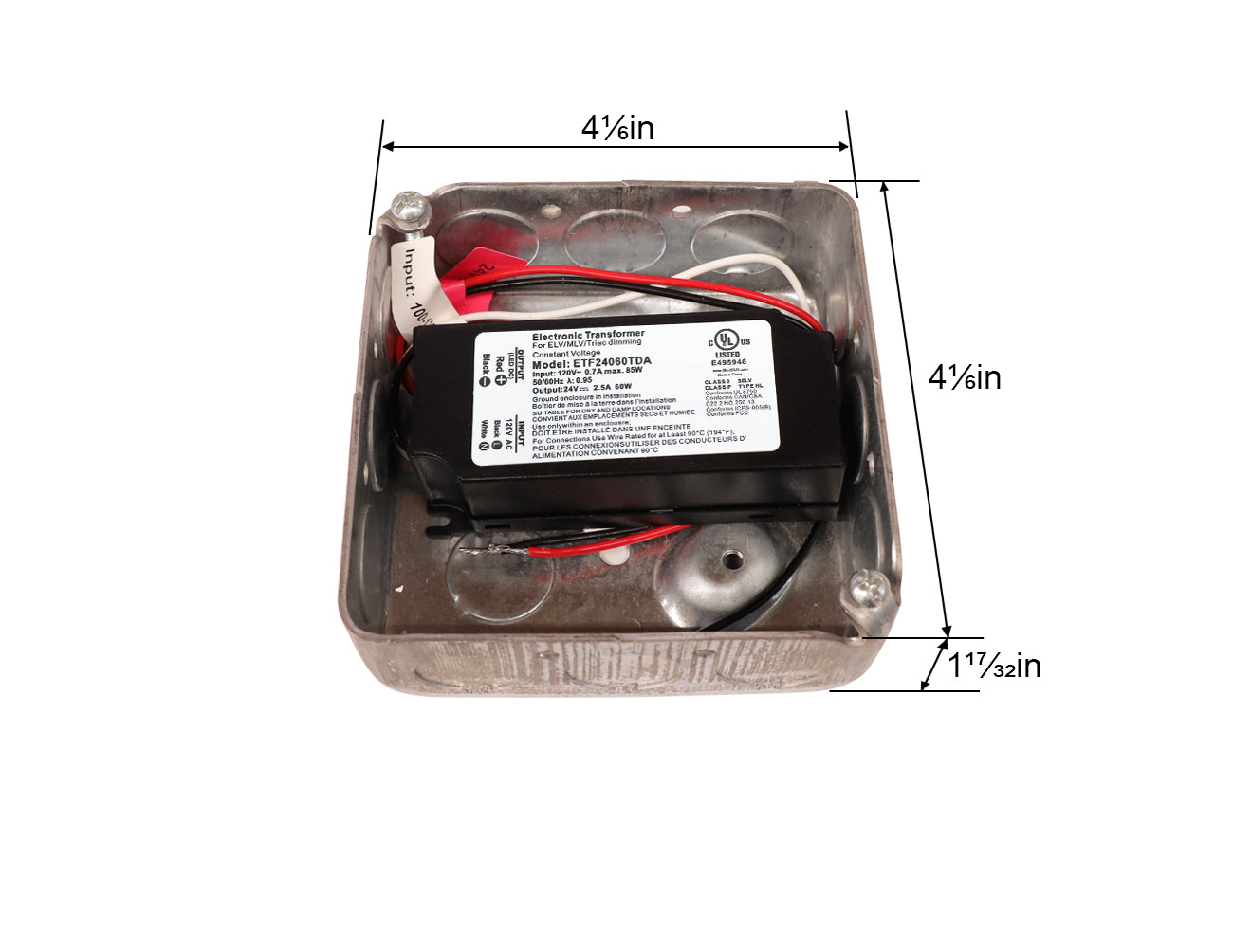

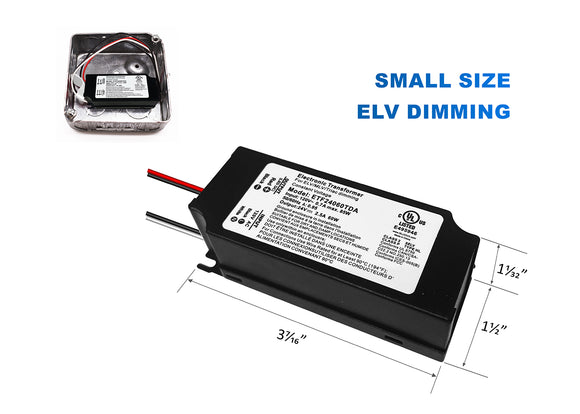

- Compact Size: Fits standard 4-inch square junction boxes for easy installation.
- Dimmable: Compatible with ELV dimmers, ensuring smooth and flicker-free dimming.
- UL Certified: Meets U.S. safety standards for professional lighting installations.
- Versatile Applications: Suitable for dry, damp, and wet locations.
- Cost-Effective: High efficiency at an affordable price.
- ELV Dimming range: 0-100%.
- 5 years limited warranty.
Recommended Applications
- Architectural lighting projects
- Commercial and residential lighting installations
- LED strip lighting systems
- Indoor and outdoor ambient lighting
 |
 |
Specifications
| Type | GLE-12060-TDA | GLE-24060-TDA | GLE-24096-TDA | ||
| Input Voltage | 120VAC | ||||
| Input AC Current (Max.) | 0.93A | ||||
| Output Voltage | 12VDC | 24VDC | 24VDC | ||
| Output Power | 60W | 60W | 96W | ||
| Output Current | 5A | 2.5A | 4A | ||
| Certificate | UL listed, Class P, Type HL, SELV, RoHS | ||||
| Safety Standards | UL cUL listed, Class 2 | ||||
| Warranty | 5 years | ||||
| Dimming Range | 0–100% | ||||
| Protections | Short Circuit / Over Loading | ||||
| Work Environment | Dry Location | ||||
| Dimming Method | ELV | ||||
Documents
LED Dimmable Transformer GLE-24060-TDA Specification
GLE series electronic transformer & Triac/Phase Dimmer List
