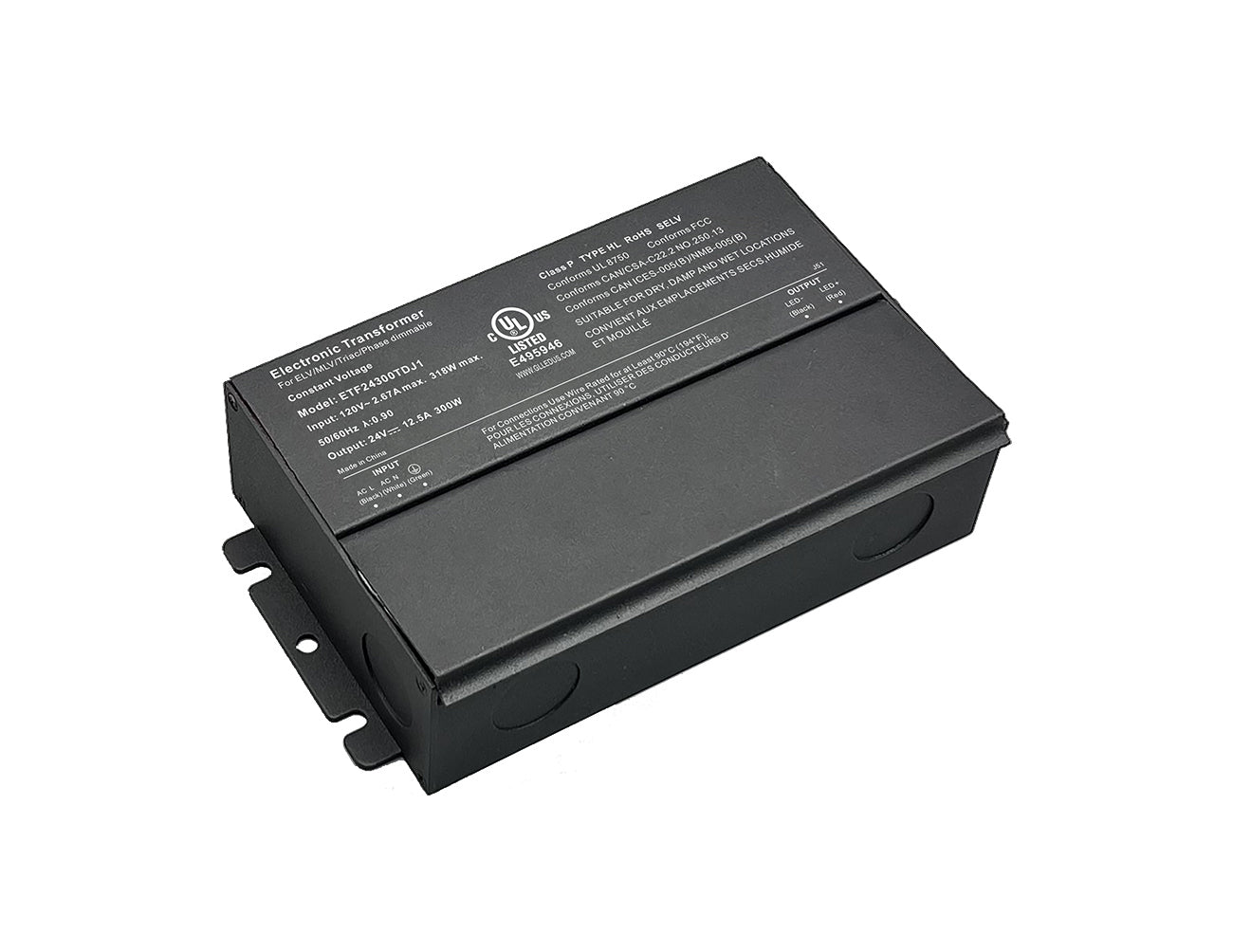

Dimmable Transformer 300W 24V Constant Voltage Power Supply

$132.03

Description Specification Accessories

ETF24300TDJ1 is a high-performance and cost-effective constant voltage electronic transformer designed for architectural lighting projects. With a compact form factor and built-in junction box, it meets UL safety standards in the U.S. and is suitable for various lighting installations. It supports dimming and works seamlessly with ELV dimmers, ensuring smooth and stable dimming performance. This transformer is a top choice for architects, contractors, and designers seeking a reliable and affordable solution.

Key Features:

Constant Voltage Transformer, Provides stable 24V DC output for consistent lighting performance.
Compact & Lightweight, small form factor with an integrated junction box for easy installation.
Dimmable, compatible with ELV dimmers, offering smooth dimming operation.
UL Certified, meets U.S. safety standards, making it ideal for professional lighting installations.
Versatile Applications, suitable for wet, dry, and damp locations.
Cost-Effective, delivers high efficiency at an affordable price.

Recommended Applications:

Architectural lighting projects
Commercial and residential lighting installations
LED strip lighting systems
Indoor and outdoor ambient lighting

Model Input Voltage Output Power Output Current Application Certification Net Weight Size (inch)
ETF24060TDJ1 120VAC 60W 2.5A Wet, Dry, Damp UL Class 2, Class P, Type HL 0.3kg 5x3.22x1.64
ETF24096TDJ1 120VAC 96W 4A Wet, Dry, Damp UL Class 2, Class P, Type HL 0.3kg 5x3.22x1.64
ETF24150TDJ1 120VAC 150W 6.25A Wet, Dry, Damp UL Class P, Type HL 0.33kg 10.94x4.25x1.77
ETF24200TDJ1 120VAC 200W 8.34A Wet, Dry, Damp UL Class P, Type HL 0.33kg 10.94x4.25x1.77
ETF24300TDJ1 120VAC 300W 12.5A Wet, Dry, Damp UL Class P, Type HL 0.35kg 10.94x4.25x1.77

ETF series VS. G series！
LED dimming drivers with built-in junction boxes. In addition to the built-in junction box, what other features do you need to compare? Voltage Stability & Brightness? Ripple & Flicker-Free Performance? Energy Efficiency & Heat Dissipation? Compatibility & Input Voltage Range? Power Factor & Harmonic Distortion? Read More >>

LED Low Voltage Light System

Frequently bought together:

LED Strip Light
LED Controller
LED Power Supply
LED Aluminum Channel
All LED Strip Light All LED Controller All LED Transformer All Aluminum Channel

Instruction Video: Dimmable Constant Voltage Transformers

Instruction Video: How to choose your correct transformer
  • Model No: ETF-300W-24V-TDJ1
  • Input Voltage: 120VAC
  • Output Voltage: 24VDC, Constant Voltage
  • Wattage: 300W
  • Rated Current: 12.5A
  • Power Factor: Up to 0.94
  • Class: Class 2

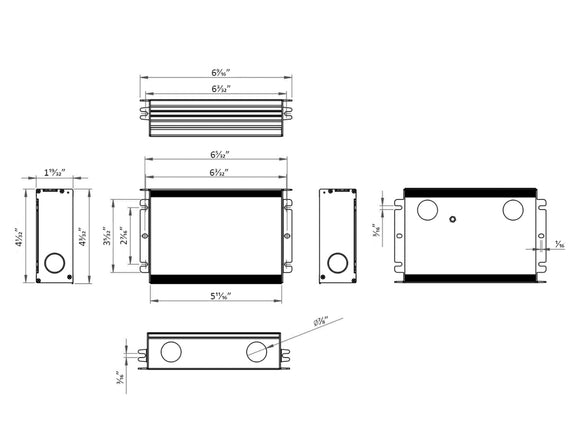

  • Dimension: L 6 19/32", W 3 7/8", H 1 21/32"
  • Dimming Method: : Electronic Transformer ELV dimming
  • Work Environment / Damp, Dry and Wet locatio
  • Installation Options: Surface Mounted
  • Working Temperature: -40～+140℉"
  • Certification: UL listed, Class 2, Class P, Type HL, SELV, RoHS
  • Warranty: 5 Years
  • Protection Method: Short-circuit / over-load protection

LED Dimmable Transformer ETF-TDJ1 Series Specification
ETF series electronic transformer & Triac/Phase Dimmer List

Separate accessories are available

Power Cable

Junction Box

T Grid Mount Bracket
