LED Dimmable Transformer - ETF - 200W-24V-ELV Dimming

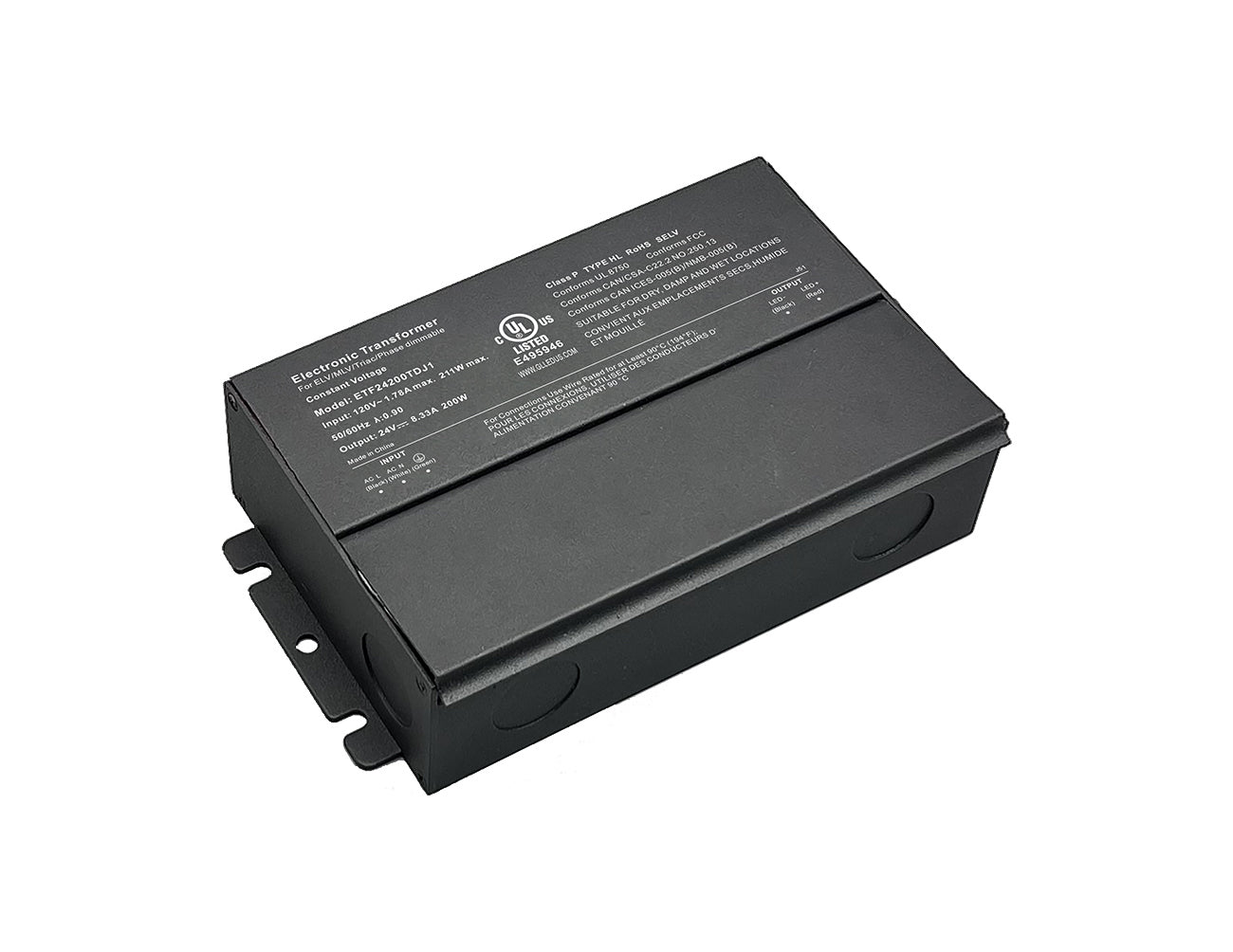

The ETF-series is a compact and cost-effective constant voltage electronic transformer designed for architectural lighting projects. With a built-in junction box. This UL/cUL-listed Class 2 power supply offers advanced features such as auto-reset functionality, over-temperature protection, short-circuit protection, and overload protection, ensuring safe and reliable operation, and is ideal for a wide range of lighting applications. It supports dimming and delivers optimal performance when used with ELV dimmers, ensuring smooth and stable dimming control. This transformer is an excellent choice for architects, contractors, and designers looking for a high-quality and affordable solution.

Dimming Compatibility: The ETF-series supports a smooth 0-100% dimming range and is compatible with most ELV dimmers on the market. For Triac or MLV dimming, use the recommended models for optimal performance.

Key Features:

Constant Voltage Transformer, Provides stable 24V DC output for consistent lighting performance.

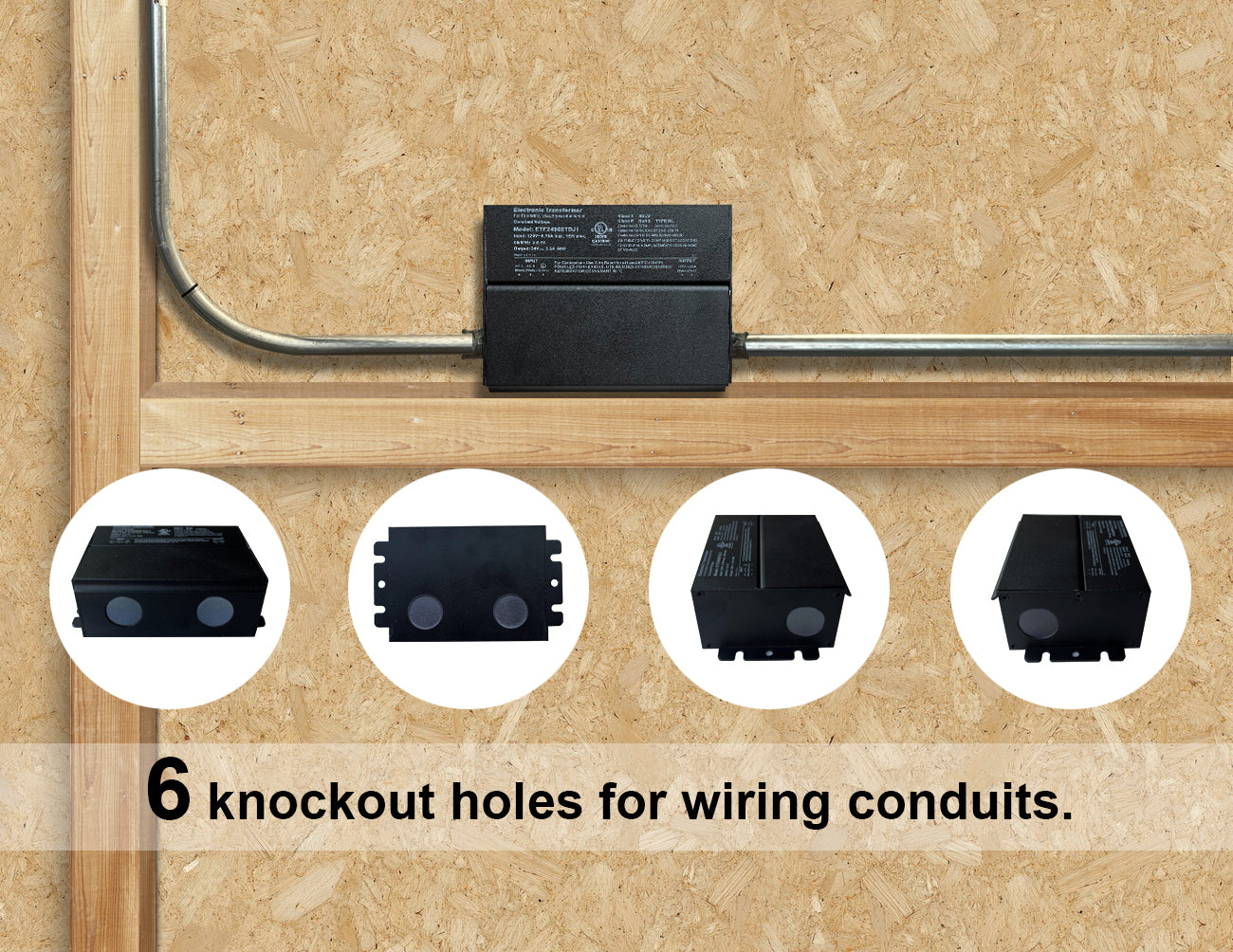

Compact & Lightweight, small form factor with an integrated junction box for easy installation.
Dimmable, compatible with ELV dimmers, offering smooth dimming operation.
UL Certified, meets U.S. safety standards, making it ideal for professional lighting installations.
Versatile Applications, suitable for wet, dry, and damp locations.
Cost-Effective, delivers high efficiency at an affordable price.

Recommended Applications:

Architectural lighting projects
Commercial and residential lighting installations
LED strip lighting systems
Indoor and outdoor ambient lighting

ETF series VS. KVG series

LED dimming drivers with built-in junction boxes. In addition to the built-in junction box, what other features do you need to compare? Voltage Stability & Brightness? Ripple & Flicker-Free Performance? Energy Efficiency & Heat Dissipation? Compatibility & Input Voltage Range? Power Factor & Harmonic Distortion? Read More >>

Step-by-Step: How to Choose the Right Power Supply for Your LED Setup

Start with your control method — then choose the matching power supply.

1. Decide Your Control Type First
Pick the control or dimming method that fits your lighting application:
• Triac Dimmer – Standard wall switch dimmer (common in homes)
• 0-10V Dimmer – Commercial dimming systems
• ELV Dimmer – Reverse phase dimming (quiet, smoother dimming)
• RGB/RGBW Controller – For color-changing LED strips
• No Dimming – Basic on/off control
2. Choose the Right Power Supply to Match
Select a power supply compatible with your control type:
• Triac Dimmer → Triac Dimmable Power Supply
• 0-10V Dimmer → 0-10V Dimmable Power Supply
• ELV Dimmer → ELV Dimmable Power Supply
• RGB/RGBW Controller → Standard Non-Dimmable Power Supply
• No Dimming → Standard Non-Dimmable Power Supply
3. Match the Output Voltage
Make sure your power supply output matches your LED strip voltage:
• 12V LED strips → Use a 12V power supply
• 24V LED strips → Use a 24V power supply
4. Size the Wattage Properly
Choose a power supply rated for more wattage than your LEDs consume:
• Indoor Installations → Total LED wattage × 1.25 (125%)
• Outdoor Installations → Total LED wattage × 1.5–2.0 (150–200%)
This provides:
• Overload protection
• Cooler operation
• Longer lifespan

Dimming, Non-Dimming & RGB — the right configuration matters.
Discover how to pick LED strips, power supplies, and dimmers the right way.
READ MORE >>>
