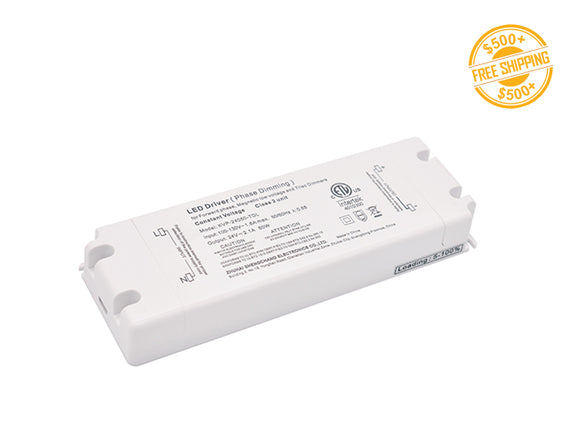

LED Dimmable Driver P-50W-12V

SKU: P-50W-12V

$68.46

P Series LED Dimmable Driver provide a smooth, stable, efficient, and flicker-free dimming capability for LED light fixtures. They are compatible with Forward phase, Magnetic low voltage, Triac Dimmer, and are perfect to power low voltage LED lights operated at 120VAC.

Features:
• Output constant voltage.
• Universal AC input: 100-130VAC
• Protection: short circuit/over loading/over temperature.
• Full protection aluminum housing.
• Easy installation.
• Strong compatibility, flicker-free dimming.
• Compatible with Forward phase, Magnetic low voltage, Triac Dimmer
• Suitable for dry or damp location use, IP20.
• Cooling by free air convection.
• 3 years limited warranty.
• ETL listed.

Step-by-Step: How to Choose the Right Power Supply for Your LED Setup

Start with your control method — then choose the matching power supply.

  1. Decide Your Control Type First
  2. Pick the control or dimming method that fits your lighting application:
    • Triac Dimmer – Standard wall switch dimmer (common in homes)
    • 0-10V Dimmer – Commercial dimming systems
    • ELV Dimmer – Reverse phase dimming (quiet, smoother dimming)
    • RGB/RGBW Controller – For color-changing LED strips
    • No Dimming – Basic on/off control
  3. Choose the Right Power Supply to Match
  4. Select a power supply compatible with your control type:
    • Triac Dimmer → Triac Dimmable Power Supply
    • 0-10V Dimmer → 0-10V Dimmable Power Supply
    • ELV Dimmer → ELV Dimmable Power Supply
    • RGB/RGBW Controller → Standard Non-Dimmable Power Supply
    • No Dimming → Standard Non-Dimmable Power Supply
  5. Match the Output Voltage
  6. Make sure your power supply output matches your LED strip voltage:
    • 12V LED strips → Use a 12V power supply
    • 24V LED strips → Use a 24V power supply
  7. Size the Wattage Properly
  8. Choose a power supply rated for more wattage than your LEDs consume:
    • Indoor Installations → Total LED wattage × 1.25 (125%)
    • Outdoor Installations → Total LED wattage × 1.5–2.0 (150–200%)
    This provides:
    • Overload protection
    • Cooler operation
    • Longer lifespan

Dimming, Non-Dimming & RGB — the right configuration matters.
Discover how to pick LED strips, power supplies, and dimmers the right way.
READ MORE >>>

Frequently bought together:

LED Strip Light
LED Controller
LED Power Supply
LED Aluminum Channel
All LED Strip Light All LED Controller All LED Transformer All Aluminum Channel

Instruction Video: Dimmable Constant Voltage Transformers

Instruction Video: How to choose your correct transformer

  • Model No: P-50W-12V
  • Input Voltage: 100-130VAC
  • Output Voltage: 12VDC, Constant Voltage
  • Wattage: 50W
  • Rated Current: 4.12A
  • Power Factor: Up to 0.65
  • Class: Class 2

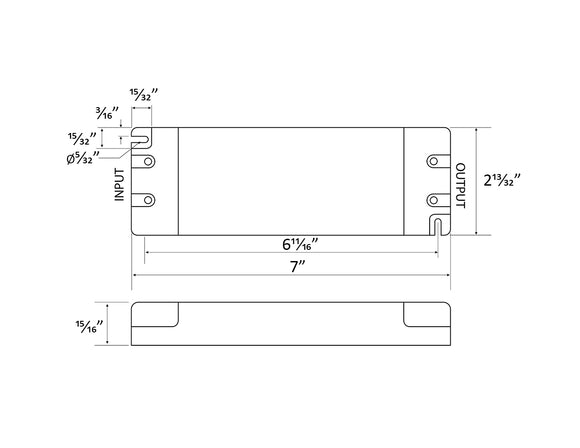

  • Dimension: L 7 1/32", W 2 13/32", H 15/16"
  • Dimming Method: Compatible with Forward phase, Magnetic low voltage, Triac Dimmers
  • Work Environment / IP Rating: dry location use, IP20
  • Installation Options: Surface Mounted
  • Operating Ambient Temperature: -40~+140℉"
  • Certification: ETL, cETL listed, FCC
  • Warranty: 3 Years
  • Protection Method: Short circuit/Over loading/Over current/ Over temperature

LED Dimmable Driver P-50W-12V Specification
LED Transformer P Series Compatible Dimmer List
