Name: LED Dimmable Driver - 5 in 1 dimming - GLN-400W-120V-TMWJ1
Brand: GL LED LLC
SKU: GLN-120400-TMWJ1
Availability: OutOfStock

LED Dimmable Driver - 5 in 1 dimming - GLN-400W-120V-TMWJ1

LED Dimmable Driver - 5 in 1 dimming - GLN-400W-120V-TMWJ1-1

LED Dimmable Driver - 5 in 1 dimming - GLN-400W-120V-TMWJ1-2

LED Dimmable Driver - 5 in 1 dimming - GLN-400W-120V-TMWJ1-3

Description Accessories

Product Details

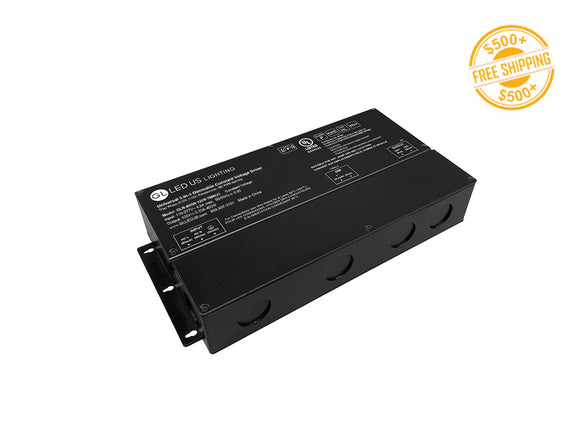

The GLN-400W-120V-TMWJ1 5-in-1 Dimmable LED Driver (400W / 120V) is a professional-grade constant voltage power supply engineered for high-power LED lighting applications that demand superior dimming performance and broad compatibility.
Supporting five dimming methods—0-10V, 1-10V, 10V PWM, potentiometer, TRIAC (forward phase), ELV (reverse phase), and MLV—the driver delivers smooth, flicker-free dimming down to 0.1%, ensuring precise light control across residential, commercial, and architectural projects.
With a 400W / 120V DC output, wide 110–277VAC universal input, built-in active PFC, and high efficiency up to 94%, this driver is designed for reliable operation in demanding environments. Comprehensive protections, global safety certifications, and a 5-year warranty make it a dependable solution for long-term installations..

Key Features

5-in-1 Dimming – Compatible with 0-10V, 1-10V, 10V PWM, potentiometer, TRIAC, ELV, and MLV dimming methods.
400W / 120V DC Constant Voltage Output – Delivers up to 3.33A stable output, ideal for high-voltage LED strips, linear fixtures, and architectural luminaires.
Ultra-Smooth Flicker-Free Dimming – High-frequency PWM output (20kHz) ensures flicker-free performance and precise dimming down to 0.1%.
High Efficiency & Active PFC – Efficiency up to 94% with built-in active PFC, achieving power factor up to 0.98 @120VAC for reduced energy loss.
Comprehensive Protection Functions – Built-in short circuit, overload, and over-temperature protection with automatic recovery for enhanced system safety.
Certified Safety & EMC Compliance – Certified to UL, cUL, FCC, CE, Class P, Type HL, SELV, RoHS, and REACH standards for commercial and industrial use.

Recommended Applications

Architectural Lighting - Ideal for coves, facades, linear lighting, and accent illumination requiring smooth, deep dimming.
Commercial & Industrial Lighting - Reliable power solution for offices, warehouses, and high-bay linear LED systems.
Hospitality & Retail Spaces - Precise brightness control for hotels, restaurants, showrooms, and display lighting.
High-Power LED Installations - Suitable for large-scale LED strip and fixture projects requiring stable 120V constant voltage output.
Professional Dimming Systems - Strong compatibility with commercial dimmers and lighting control systems for scalable installations.

Specifications

Type	GLN-120200-TMWJ1	GLN-120400-TMWJ1
Input Voltage	110-277VAC
Input AC Current (Max.)	1.86A@120VAC; 0.79A@277VAC	≤4.2A
Output Voltage	120VDC
Output Power	200W	400W
Output Current	1.67A	3.33A
Certificate	UL, cUL listed, CE, Class P unit, Type HL, FCC
Safety Standards	UL8750
Warranty	5 years
Dimming Depth	0.1%
Protections	Short Circuit / Over Loading / Over Temperature
Work Environment	Dry / Damp / Wet Location
Frequency Range	20K HZ
Dimming Method	Phase dimming: Triac, ELV (reverse phase dimming), MLV (forward phase dimming). 0-10V dimming. 1-10V dimming. Potentiometer. 10V PWM.
