Product Details

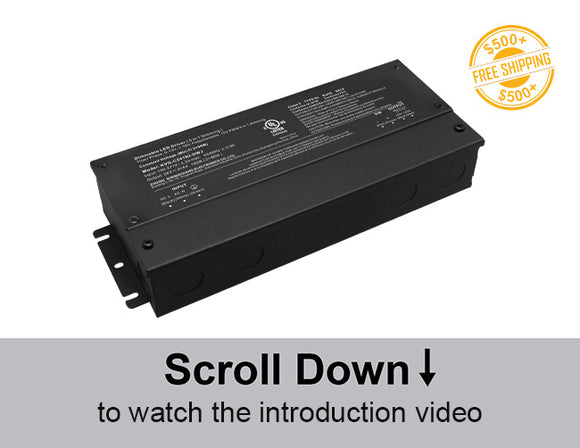

The GLG-C192W-24V-DWJ 5-in-1 Dimmable LED Driver is a professional-grade 24V constant voltage Class 2 power supply designed for residential and commercial LED lighting applications. It features two independent 96W outputs, delivering up to 192W total power in a single enclosure.
Compatible with 0-10V, 1-10V, 10V PWM, potentiometer, TRIAC, ELV, and MLV dimming, the driver provides smooth, flicker-free dimming across a wide range of lighting control systems.
Important: Each output is limited to 96W maximum. Do not connect more than 96W of LED load to either output.
Key Features
- 5-in-1 Dimming – Compatible with 0-10V, 1-10V, 10V PWM, potentiometer, TRIAC, ELV, and MLV dimming.
- 24V Constant Voltage Output – Designed for 24V LED strips and fixtures.
- Dual 96W Class 2 Outputs – Two independent outputs provide up to 96W each and 192W total.
- Important Load Limit – The connected load on either output must not exceed 96W.
- Flicker-Free Dimming – High-frequency PWM provides smooth 0–100% dimming.
- IP66-Rated Housing – Waterproof and dust-resistant construction for indoor and outdoor applications.
- Certified Protection – Class 2 and Type HL rated, with overload, short-circuit, and over-temperature protection.
 |
 |
Specifications
| Type | GLG-24060-DWJ | GLG-24096-DWJ / GLG-24060-DWL | GLG-24100-DWL | GLG-24150-DWJ / GLG-24150-DWL/DWS | GLG-24200-DWJ | GLG-24300-DWJ | GLG-24600-DWJ | GLG-C24192-DWJ | GLG-C24288-DWJ | |||||
| Input Voltage | 100-277VAC | |||||||||||||
| Input AC Current (Max.) | 0.5A@100VAC | 1.3A@100VAC | 1.3A@100VAC | 1.8A@100VAC | 2.3A@100VAC | 3.4A@100VAC | 5.9A@100VAC | 2.3A | 3.4A | |||||
| Output Voltage | 24VDC | |||||||||||||
| Output Power | 60W | 96W | 100W | 150W | 200W | 300W | 2*300W | 96W*2 = 192W | 96W*3 = 288W | |||||
| Output Current | 2.5A | 4A | 4.17A | 6.25A | 8.33A | 12.5A | 25A | 4A*2 = 8A | 4A*3 = 12A | |||||
| Certificate | UL, cUL listed, Class 2 unit, Type HL, FCC | |||||||||||||
| Safety Standards | UL8750 | |||||||||||||
| Warranty | 5 years | |||||||||||||
| Dimming Range | 0-100% | |||||||||||||
| Protections | Short Circuit / Over Loading / Over Temperature | |||||||||||||
| Work Environment | Dry / Damp / Wet Location | |||||||||||||
| Frequency Range | 20K HZ | |||||||||||||
| Dimming Method |
|
|||||||||||||
Documents
LED Dimmable Driver - 5 in 1 dimming_24V_Specification
