The G-24096-DWJ is a high-quality 96W 24V dimmable LED driver, delivering stable 24V DC output with 5-in-1 dimming support. Ideal for residential, commercial, and architectural lighting, this LED power supply ensures smooth dimming performance and maximum energy efficiency. 5 years warranty。
Key Features
5-in-1 Dimming Compatibility: Works with Triac, 0-10V, PWM, ELV, and DALI dimming systems.
Stable 24V DC Output: Ensures flicker-free performance for LED strip lights, cabinet lighting, and architectural installations.
High Efficiency & Low Heat: Engineered for energy efficiency with minimal heat dissipation.
UL Listed for Safety: Certified for reliable and professional installations.
Smart Home & Automation Ready: Compatible with leading LED strip brands and smart lighting controllers.
Recommended Applications
Under-Cabinet Lighting: Provides smooth, adjustable brightness for modern kitchens.
LED Strip & Tape Lighting: Ideal for linear LED lighting systems.
Smart Home Automation: Compatible with Lutron, Leviton, and smart dimming systems.
Retail & Display Lighting: Perfect for high-accuracy dimmable illumination.
Cove & Accent Lighting: Enhances home and commercial spaces with ambient lighting.
Technical Specifications
| Feature | Details | Feature | Details |
|---|---|---|---|
| Model | G-24096-DWJ | Max Output Power | 96W |

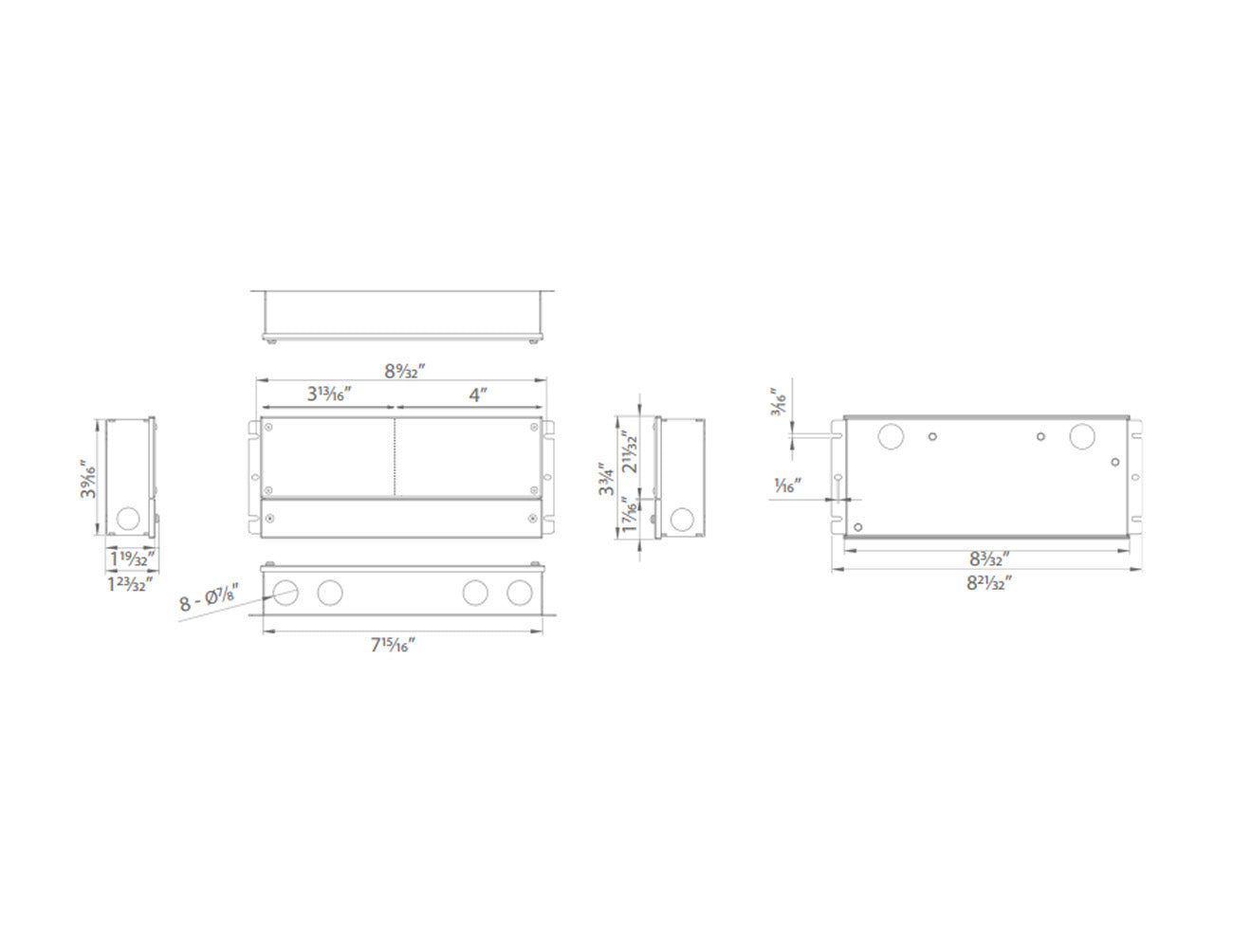

| Size (mm) | 220 × 95.4 × 43.8 mm | Size (inch) | L 8 21/32", W 3 3/4", H 1 23/32" |
| Input Voltage Range | 110-277V AC | Output Voltage | 24V DC |
| Max Output Current | 4A | Power Factor (PF) | >0.95 |
| Dimming Type | 5-in-1 (Triac, 0-10V, PWM, ELV, DALI) | Location Rating | Dry, Damp, Wet |
| Certifications | UL, cUL, FCC Class 2, RoHS | Net Weight | 1.36 KG |
Installation & Compatibility
The G-24096-DWJ is compatible with Lutron, Leviton, and other leading dimmer brands, making it ideal for both residential and commercial installations. Its compact size allows for easy mounting in tight spaces.
Upgrade your LED lighting system with the G-24096-DWJ dimmable LED driver today!
ETF series VS. KVG series！
LED dimming drivers with built-in junction boxes. In addition to the built-in junction box, what other features do you need to compare? Voltage Stability & Brightness? Ripple & Flicker-Free Performance? Energy Efficiency & Heat Dissipation? Compatibility & Input Voltage Range? Power Factor & Harmonic Distortion? Read More >>
 |
 |
Frequently bought together:
 |
 |
 |
 |
| All LED Strip Light | All LED Controller | All LED Transformer | All Aluminum Channel |
Q&A:
How to select a dimmable transformer for LED lights?
The following factors needs to considered when selecting a dimmable transformer for LED lights: (1) Check compatibility with your specific LED lights; (2) Determine the dimming method (PWM or analog) and choose a transformer accordingly; (3) Consider the desired dimming range and ensure the transformer supports it; (4) Verify the transformer's load capacity meets or exceeds the total wattage of your LED lights; (5) Choose a reputable manufacturer for quality and reliability; (6) Ensure compatibility with your chosen dimmer switch or controller; (7) Look for relevant certifications and standards.
|
Instruction Video: GL LED 5-in-1 G-series Transformer Instruction Video: How to choose your correct transformer |
