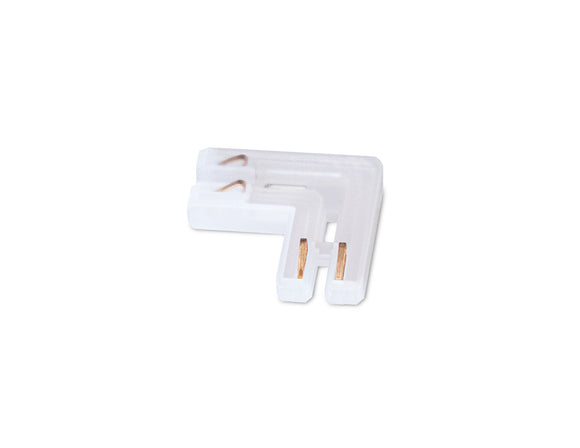

Internal L Shape Connector for Under Cabinet Light 31138

Product Description

The 31138 Internal End to End L Shape Connector joins two compatible 31138 under cabinet lights at a 90-degree angle using an internal connection, creating a clean, continuous L-shaped lighting layout around cabinet, shelf, or display corners.

Its compact plug-in design allows the connector to fit inside compatible light fixtures for a discreet, solder-free connection without additional wiring. Simply align the polarity and insert each end into the compatible lights for a neat corner installation.

Key Features

• 90° Internal Corner Connection – Joins two 31138 lights in an L-shaped layout.
• Concealed Connector Design – Fits inside compatible fixtures for a clean, discreet connection.
• Solder-Free Installation – Connects fixtures directly without soldering or additional wires.
• Quick Plug-In Connection – Simplifies installation with easy fixture-to-fixture assembly.
• Polarity Alignment – Requires correct positive (+) and negative (–) alignment during installation.
• 31138 Compatibility – Designed specifically for the 31138 Under Cabinet Light.

Product Specifications

How to Install the End to End L Shape Connector for Under Cabinet Light 31138

Step 1 - Disconnect the Power:
Turn off and disconnect the power supply before installation.

Step 2 - Position the Lights:
Place the two compatible 31138 Under Cabinet Lights at the desired 90-degree corner and align the connection points.

Step 3 - Check the Polarity:
Confirm and match the positive (+) and negative (–) polarity before making the connection. Do not reverse the polarity.

Step 4 - Connect the First Light:
Insert one end of the L-Shape Connector into the compatible connection point on the first 31138 light.

Step 5 - Connect the Second Light:
Insert the other end of the connector into the second 31138 light, making sure the polarity remains correctly aligned.

Step 6 - Secure the Connection:
Make sure both ends of the connector are fully inserted and securely seated in the light fixtures.

Step 7 - Power On and Test:
Restore power and test both lights to confirm that they are operating properly.

FAQ

What is the 31138 L shape connector used for?
The 31138 L shape connector is used to connect two compatible 31138 Under Cabinet Lights at a 90-degree angle. It is designed for corner layouts in under cabinet, shelf, and display lighting installations.

Is this 90 degree connector compatible with other under cabinet lights?
This connector is specifically designed for the 31138 Under Cabinet Light. Compatibility with other lighting systems has not been confirmed.

Does the 31138 L shape connector require soldering?
No. It uses a solder-free direct plug-in connection, making it easier to connect two 31138 lights around a corner without soldering.

Do I need a wire between the two 31138 lights?
No additional connecting wire is needed when using this connector for a compatible 90-degree light-to-light connection. The L shape connector plugs directly into both lights.

What should I check before connecting two 31138 lights?
Turn off the power and make sure the connector and lights are aligned with the correct polarity before insertion. After both ends are fully seated, restore power and check that both lights operate properly.
