INSIDE CORNER - BY 5026 Silver Aluminum Channel + Milky Diffuser - 94"

SKU: BY-5026-AL-8-M-S

$61.86

Product Details

The BY 5026 channel is to be recessed along the inside corner of two walls and designed to create an illuminated straight inner corner using an LED strip light. Each piece is 94” long and has a silver color finish.

Want to try our product sample >>Click here!

Note: LED strip light not included. The LED channels are designed for indoor use. If used outdoors, they are not waterproof. Make sure the LED strip you choose is rated for outdoor use.

Specifications

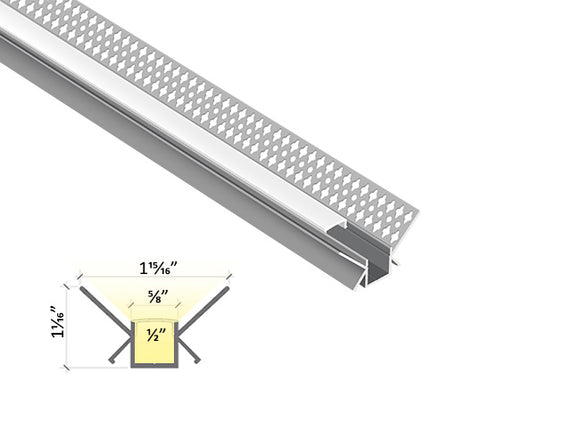

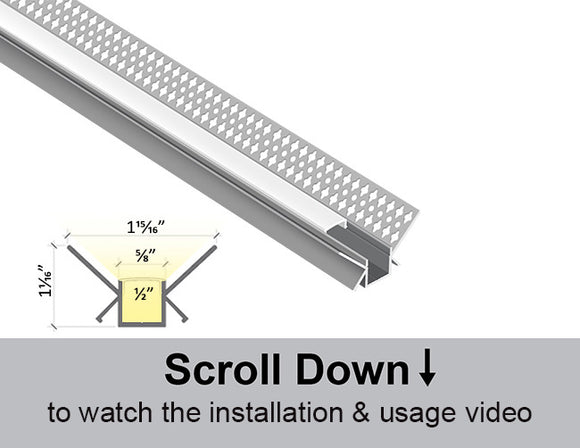

Dimension

L 94", W 1 15/16", H 1 1/16"

Internal width

1/2"

Material

Anodized Aluminum

Finish

Silver aluminum and milky diffuser

Diffuser

Milky

Installation

Recessed Mount

Application

Indoor

Length

94 in



Documents

Aluminum Channel Specification - INSIDE CORNER BY 5026

View Accessories

How Aluminum LED Housings Improve Performance and Design

If you're aiming for high-efficiency lighting that looks as good as it performs, aluminum LED housings are the answer. Key benefits include:

·Modern Lighting Aesthetics
Housings deliver a polished, high-end look by organizing and hiding LED components and wires.

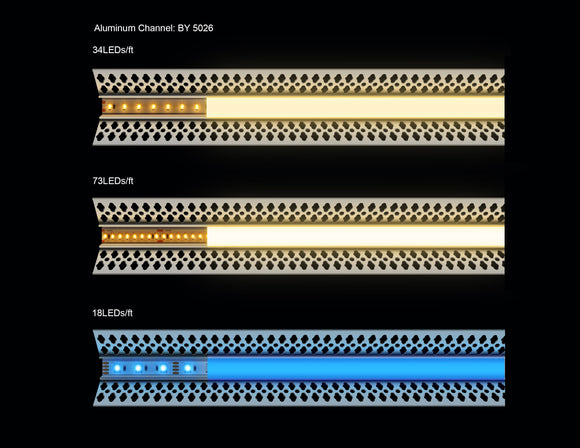

·Smooth Light Output
The addition of diffuser lenses softens harsh beams and creates a consistent glow for general lighting.

·Superior Heat Sink
With built-in thermal conductivity, aluminum keeps LEDs running cooler, maximizing their rated lifespan and brightness retention.

·Durable Protection
The housing shields strips from mechanical stress and environmental hazards like dust or water.

·Configurable Installation
Easily adjusted to your layout, these housings can be surface-mounted, recessed, or suspended as needed.

·Lower Costs
Investing in proper housings reduces future LED strip failures, helping you save on labor and materials.

·Invisible Finish with Mud-In Option

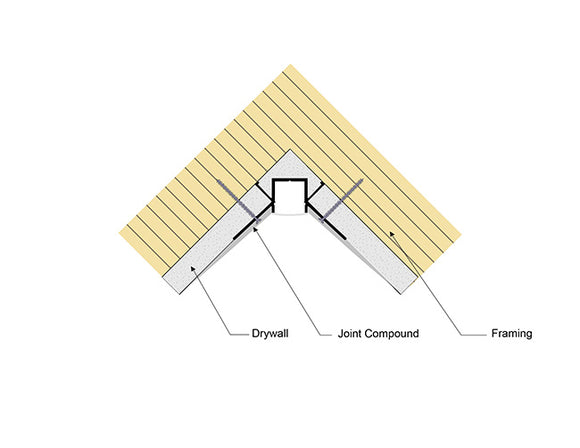

Recessed aluminum profiles can be embedded and mudded into walls to create a clean, continuous lighting line without surface interruption.

Frequently bought together

LED Strip Light
LED Controller
LED Power Supply
LED Aluminum Channel
All LED Strip Light All LED Controller All LED Transformer All Aluminum Channel

Instruction Video

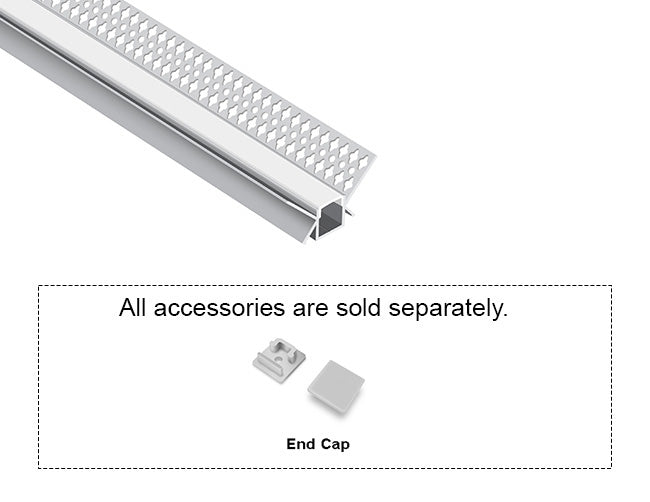

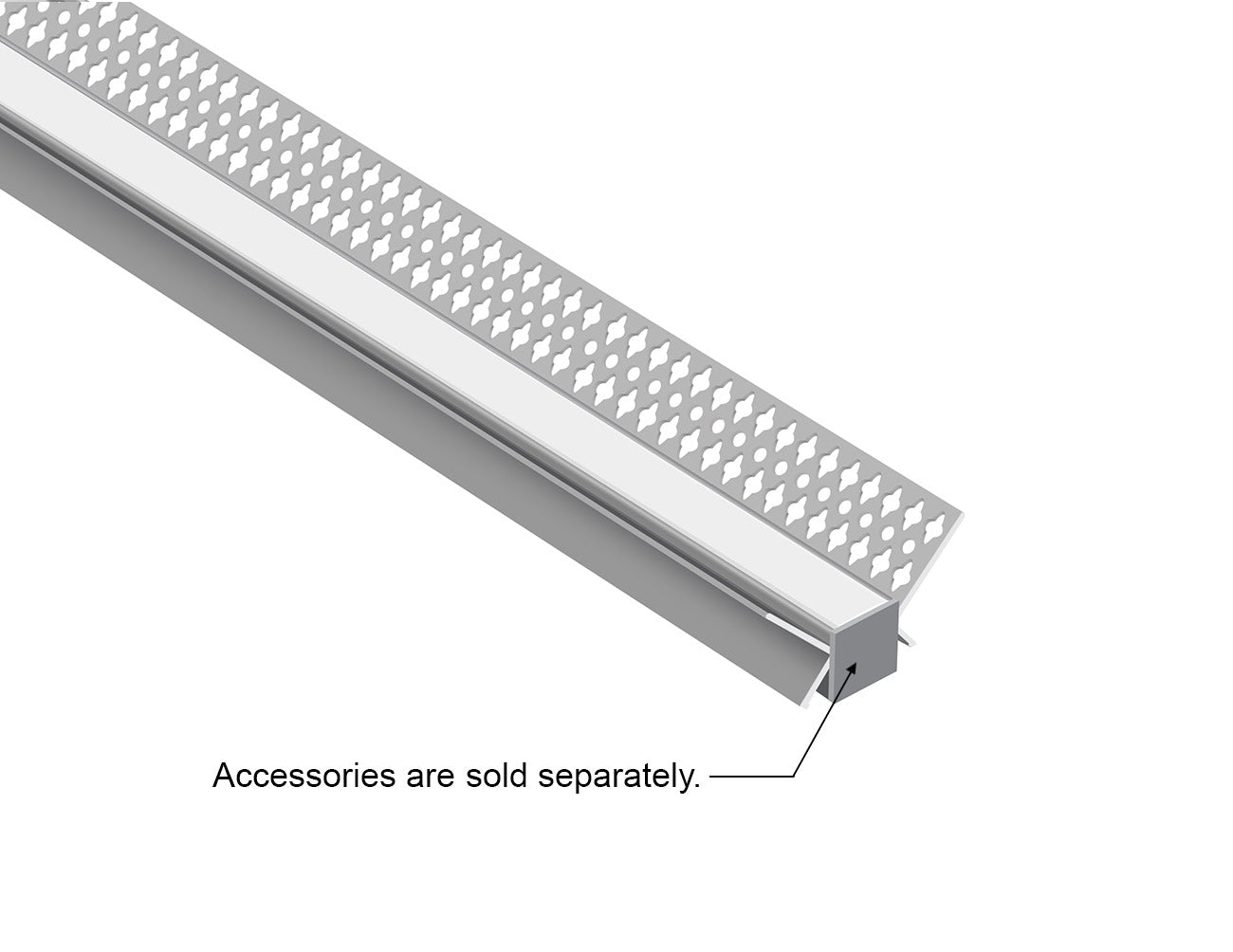

Accessories are available and sold separately

End Caps

Aluminum Channel BY5026 End Cap
