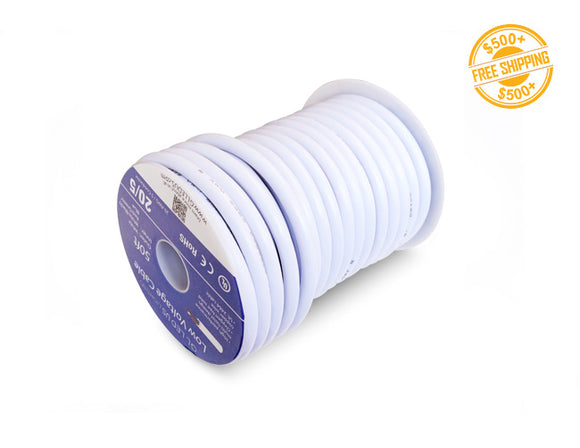

In-Wall 20AWG 5 Conductor Wire - RGBW

SKU: Cable-5-20-RGBW-IW-W-50

$27.91

Description

Product Details

The 20 AWG 5-Conductor RGBW Wire is an excellent choice for installations of RGBW low-voltage LED strip lights. Featuring five color-coded conductors (Red, Green, Blue, White, Ground), it facilitates straightforward wiring and dependable power/signal transmission. Constructed from stranded copper and robust PVC insulation, it delivers flexibility and enduring performance. This wire is suitable for residential, commercial, or automotive RGBW lighting systems, supporting both 12V and 24V configurations while ensuring clean, consistent power for vibrant color control and pure white illumination.

DC 5 Conductor Wire RGBW for low voltage connections. Ideal for LED RGBW lights.

Specifications

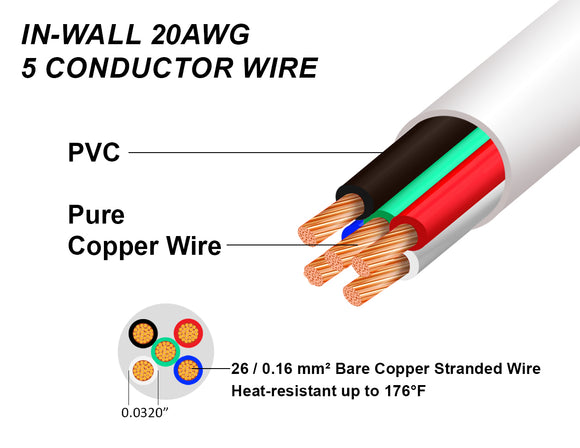

Conductor Type 5 Conductor (Black & Red & Green & White & Blue)
Material Pure copper wire with durable PVC insulation
Cross Section 20 AWG
Stranding 26 strands x 0.16 mm²
Round Wire Yes
Working Temperature 176 °F
Voltage Rating Low voltage DC applications
Certification UL Listed
Length Options 50ft, 200ft
Color White
Using Environment Indoor

Features

  • Pure Copper Conductor: Excellent electrical conductivity with low resistance and minimal voltage drop.
  • High Safety: Stable current flow, not easy to overheat or fuse.
  • Durable Insulation: Flame-retardant PVC jacket ensures longevity and protection.
  • Efficient Heat Dissipation: Prevents overheating in continuous use.
  • Flexible Handling: Easy to strip, cut, and connect for versatile wiring applications.

Applications

The 20AWG 5 Conductor Wire RGBW is ideal for RGBW low voltage LED light, including:

  • Residential cove, under-cabinet, and ambient lighting
  • Commercial display and shelf lighting
  • Automotive, RV, and marine RGBW lighting
  • Stage, theater, and event setups
  • DIY and maker projects with RGBW LED strips
