DMX Color Changing/Dimming GLX-24300-4C-J

Product Details

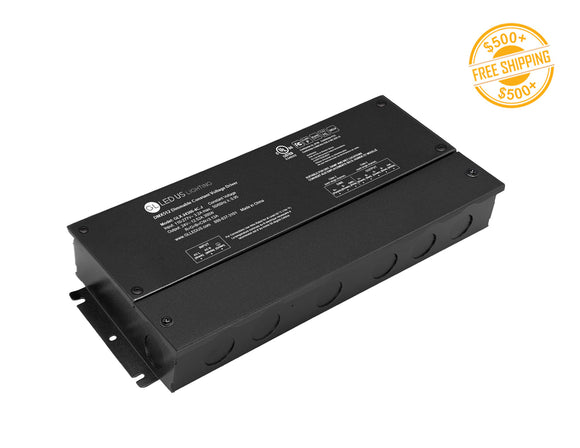

The DMX512 Dimmable LED Driver 300W 24V (GLX Series) combines a high-performance constant voltage power supply with an integrated DMX512 decoder in a single compact unit. Designed for RGBW lighting systems, this driver offers 4 independent output channels, enabling full DMX-controlled color mixing and brightness adjustment with professional precision. With 0.1%–100% flicker-free dimming at 4 kHz PWM, NFC app-based address programming, and IP66-rated waterproof housing, it delivers reliable performance for both indoor and outdoor installations. UL listed and backed by a 5-year warranty, this driver is ideal for advanced architectural, entertainment, and commercial lighting applications.

Key Features

• Integrated DMX512 Control – Combines power supply and DMX decoder for simplified installation.
• 100 W / 12 V DC Output – Provides 8.32 A constant voltage with fine-tuning to offset line loss.
• Professional Dimming – Ultra-smooth 0.1%–100% flicker-free dimming with 4 kHz PWM.
• RGBW 4-Channel Output – Independent control channels for dynamic color mixing and effects.
• Durable & Weatherproof – IP66 housing suitable for both indoor and outdoor projects.
• Certified Reliability – UL Listed, Class P, Class 2 safety, and a 5-year warranty.

Recommended Applications

• Architectural Lighting – Dynamic façade and structural lighting projects.
• Entertainment Venues – Stage, theater, and concert lighting with DMX precision.
• RGBW LED Strip Installations – Professional color control for decorative and ambient lighting.
• Commercial Spaces – Retail displays, showrooms, and signage requiring custom light effects.
• Hospitality & Wellness – Mood lighting for hotels, restaurants, spas, and lounges.

Specifications

Documents

DMX Color Changing/Dimming_Specification
