Product Details

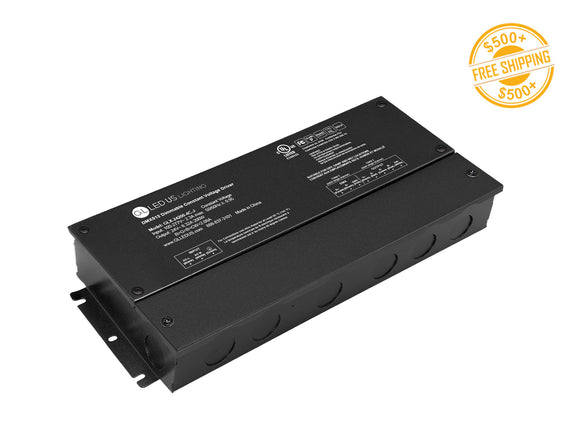

The DMX512 Dimmable LED Driver 200W 24V (GLX Series) combines a high-performance constant voltage power supply with an integrated DMX512 decoder in a single compact unit. Designed for RGBW lighting systems, this driver offers 4 independent output channels, enabling full DMX-controlled color mixing and brightness adjustment with professional precision. With 0.1%–100% flicker-free dimming at 4 kHz PWM, NFC app-based address programming, and IP66-rated waterproof housing, it delivers reliable performance for both indoor and outdoor installations. UL listed and backed by a 5-year warranty, this driver is ideal for advanced architectural, entertainment, and commercial lighting applications.
Key Features
- Integrated DMX512 Control – Combines power supply and DMX decoder for simplified installation.
- 100 W / 12 V DC Output – Provides 8.32 A constant voltage with fine-tuning to offset line loss.
- Professional Dimming – Ultra-smooth 0.1%–100% flicker-free dimming with 4 kHz PWM.
- RGBW 4-Channel Output – Independent control channels for dynamic color mixing and effects.
- Durable & Weatherproof – IP66 housing suitable for both indoor and outdoor projects.
- Certified Reliability – UL Listed, Class P, Class 2 safety, and a 5-year warranty.
Recommended Applications
- Architectural Lighting – Dynamic façade and structural lighting projects.
- Entertainment Venues – Stage, theater, and concert lighting with DMX precision.
- RGBW LED Strip Installations – Professional color control for decorative and ambient lighting.
- Commercial Spaces – Retail displays, showrooms, and signage requiring custom light effects.
- Hospitality & Wellness – Mood lighting for hotels, restaurants, spas, and lounges.
 |
 |
Specifications
| Type | GLX-12100-4C-J | GLX-12200-4C-J | GLX-12300-4C-J | GLX-24100-4C-J | GLX-24200-4C-J | GLX-24300-4C-J |
| Input Voltage | 100-277VAC | |||||
| Input AC Current (Max.) | 1.2A | <2.03A@120VAC / <0.85A@277VAC | 3.5A | 1.2A | <2.03A@120VAC / <0.85A@277VAC | 3.5A |
| Output Voltage | 12VDC | 24VDC | ||||
| Output Power | 100W | 200W | 300W | 100W | 200W | 300W |
| Output Current | 8.32A | 16.68A | 25A | 4.16A | 8.32A | 12.52A |
| Certificate | UL listed, Class P | |||||
| Safety Standards | UL8750 CAN / CSA-C22.2 No. 250.13 (US) | |||||
| Warranty | 5 years | |||||
| Dimming Range | 0–100% | |||||
| Protections | Short Circuit / Over Loading / Over Temperature | |||||
| Work Environment | Dry / Wet Location (IP66) | |||||
| Dimming Method | DMX | |||||
Documents
DMX Color Changing/Dimming_Specification
Technical Tips & Guidance
Step-by-Step: How to Choose the Right Power Supply for Your LED Setup
Dimming, Non-Dimming & RGB — the right configuration matters.
Discover how to pick LED strips, power supplies, and dimmers the right way.
How To Choose the Right Constant Voltage Power Supply for LED Strip Lights?
