STAIR EDGE - GL 024 Silver Aluminum Channel + Milky Diffuser - 78"

SKU: GL-024-AL-6-M-S

Login to view price

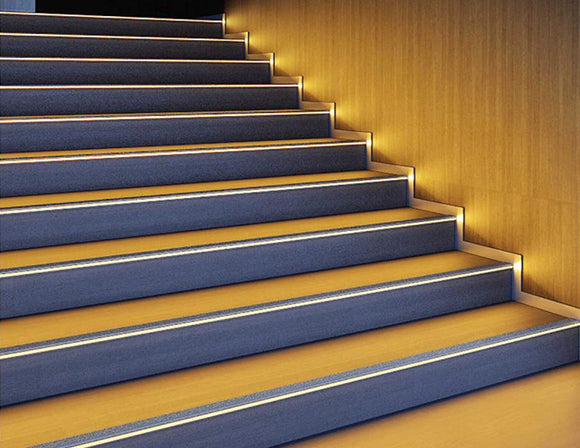

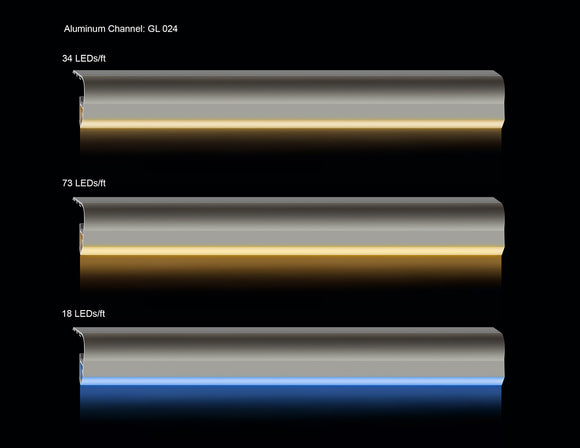

GL-024 is an LED aluminum extrusion made of anodized extruded aluminum with a milky diffuser, and is designed to accommodate LED strip and tape lights to complete a stylish LED strip light fixture, especially for stair lighting applications. Each piece is 78” long and has a black color finish. The milky diffuser helps create an even distribution of light downward to illuminate step surfaces.

The aluminum extrusion protects LED strip lights from damages and dusts by providing a rigid and enclosed housing space. It also works as a heat sink to dissipate heat from LED lights. GL-024 LED aluminum extrusion can be easily mounted to stairs to form an LED stair light fixture.

Want to try our product sample >>Click here!

Note: LED strip light is NOT included

Frequently bought together:

LED Strip Light
LED Controller
LED Power Supply
LED Aluminum Channel
All LED Strip Light All LED Controller All LED Transformer All Aluminum Channel
  • Model No: GL-024-AL-6-M-S
  • Dimension: L 78", W 3 5/32", H 1 31/32"
  • Internal width:  11/16"
  • Work Environment / IP Rating: IP20
  • Finish options: Silver, Anodized extruded aluminum, Frosted plastic Cover
  • Installation options: Surface Mounted
  • Special features: Stair edge

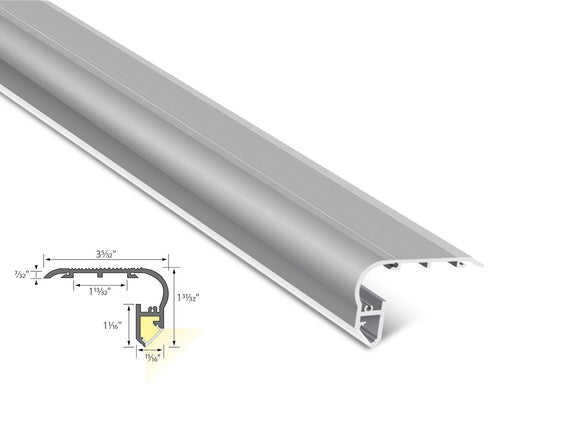

Aluminum Channel Specification - STAIR EDGE GL 024

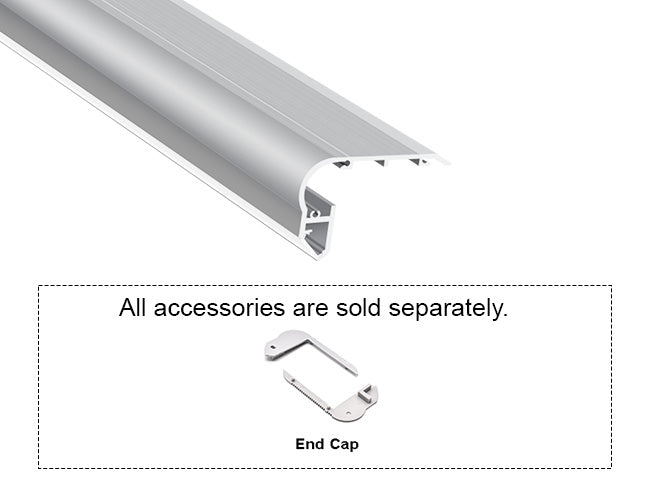

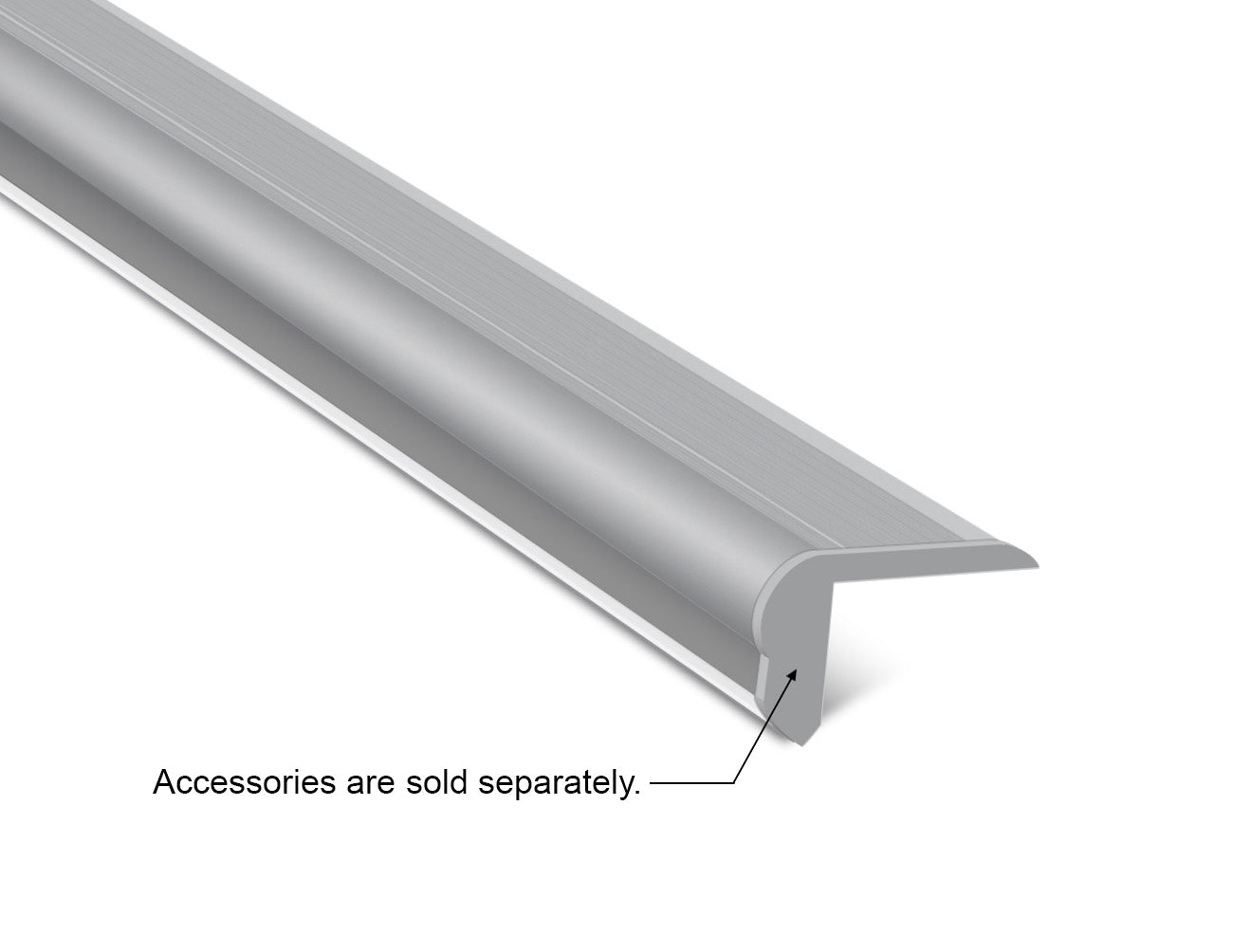

Accessories are available and sold separately

End Caps
