FLAT RECESS - ES 3011 Silver Aluminum Channel + Milky Diffuser - 94"

Product Details

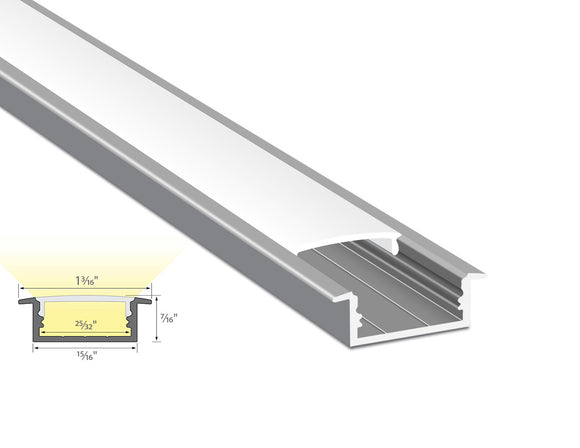

ES-3011 is a flat recessed extrusion made of anodized extruded aluminum with a milky diffuser and has a dimension of 0.90” in width and 0.35” in height. Internal width of the aluminum channel is 0.47", compatible to host a 10mm LED strip light. Each piece is 94” long and has a silver color finish.

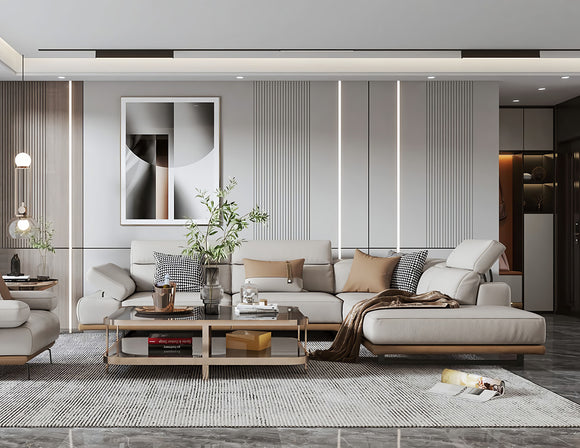

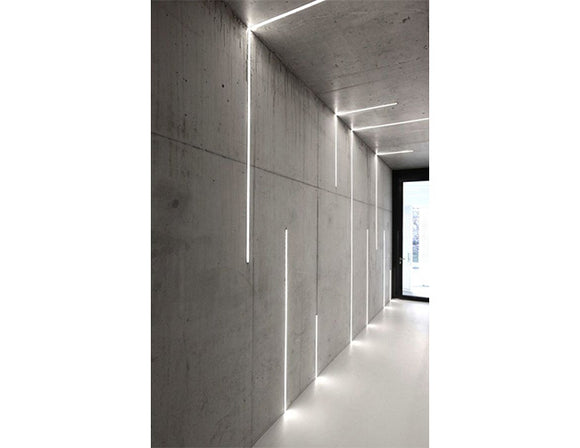

The recessed design allows for a sleek and seamless integration of LED strip lights into surfaces, providing a clean and polished appearance. The channels hide the light source and wiring, resulting in a neater and more professional-looking installation.

Want to try our product sample >>Click here!

Note: LED strip light not included. The LED channels are designed for indoor use. If used outdoors, they are not waterproof. Make sure the LED strip you choose is rated for outdoor use.

Documents

Aluminum Channel Specification - FLAT RECESS ES 3011

Aluminum LED Channels – LED Strip Lighting Upgrade

Looking for a way to professionally install LED strip lights? Try aluminum LED channels for:

·Clean Finish
LED channels hide wires and LED strips, creating a sleek, professional appearance.

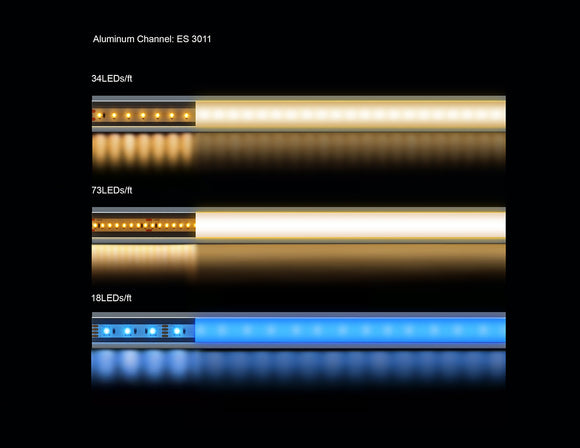

·Uniform Light Diffusion
Opal or frosted LED diffusers reduce hotspots and provide consistent illumination.

·Efficient Heat Sink
The aluminum body helps dissipate heat from LED strips to improve performance.

·LED Strip Protection
Shields LED lights from dust, debris, and accidental damage.

·Flexible LED Mounting
Available in surface mount, recessed, and corner profiles for any installation.

·Saves Money
Fewer LED replacements = lower long-term costs
