Product Details

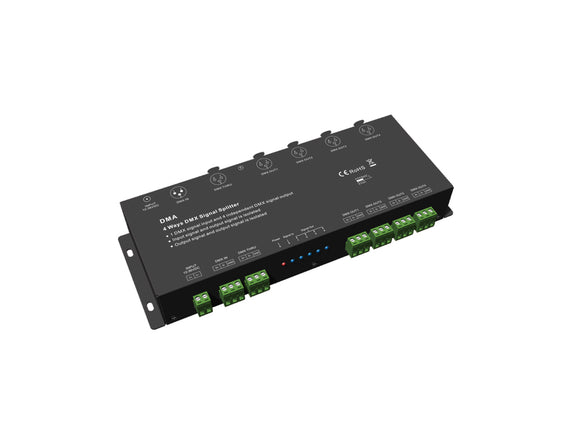

The 4 Ways DMX Signal Splitter is designed to protect DMX512 lighting systems by isolating and distributing control signals to multiple independent outputs. It effectively prevents signal back feed and interference between connected devices, ensuring stable communication, improved system reliability, and consistent performance in professional lighting installations.
Features
- One DMX512 signal input, repeat four DMX512 signal output, each allowing for 32 DMX devices to be connected.
- Dedicated to amplify, distribute and insulate the signal that comes from the lighting system equipment when it is connected to the bus of DMX512(or RS-485).
- Photo-electricity insulation between input and output terminals, output terminals among channels.
- Input isolated from outputs to 500VAC, 1000VDC.
- Outputs are isolated from each other to 500VAC, 1000VDC.
- Input and outputs are ture RS-485 rated, and no microprocessors are used for maximum reliability.
- 3 pin XLR / 3 screw terminals input and loop through, 5 pin XLR option available.
- 6 front panel LEDs indicate power in, DMX in and DMX output status at each output.
- 5 year warranty.
Specifications:
| Input Voltage |
12V/24V/36V |
Input Current |
0.12A Max |
| Input Signal |
DMX512 |
Output Signal |
DMX512x4 |
| IP Rating |
IP20 |
Operating Ambient Temperature |
Ta: -22°F ~ +131°F |
| Maximum Housing Temperature |
c: +149°F |
Protection |
Reverse Polarity |
| Certifications |
CE RoHs |
|
Documents
4 Ways DMX Signal Splitter - DMA Specification
