3021 LINEAR - ES 3021 Silver Aluminum Channel + Milky Diffuser - 94"

Product Details

ES 3021 Black Aluminum Channel + Milky Diffuser LED Wall Washer Strip Light - Aluminum Channel ES 3021 with Inner Clip

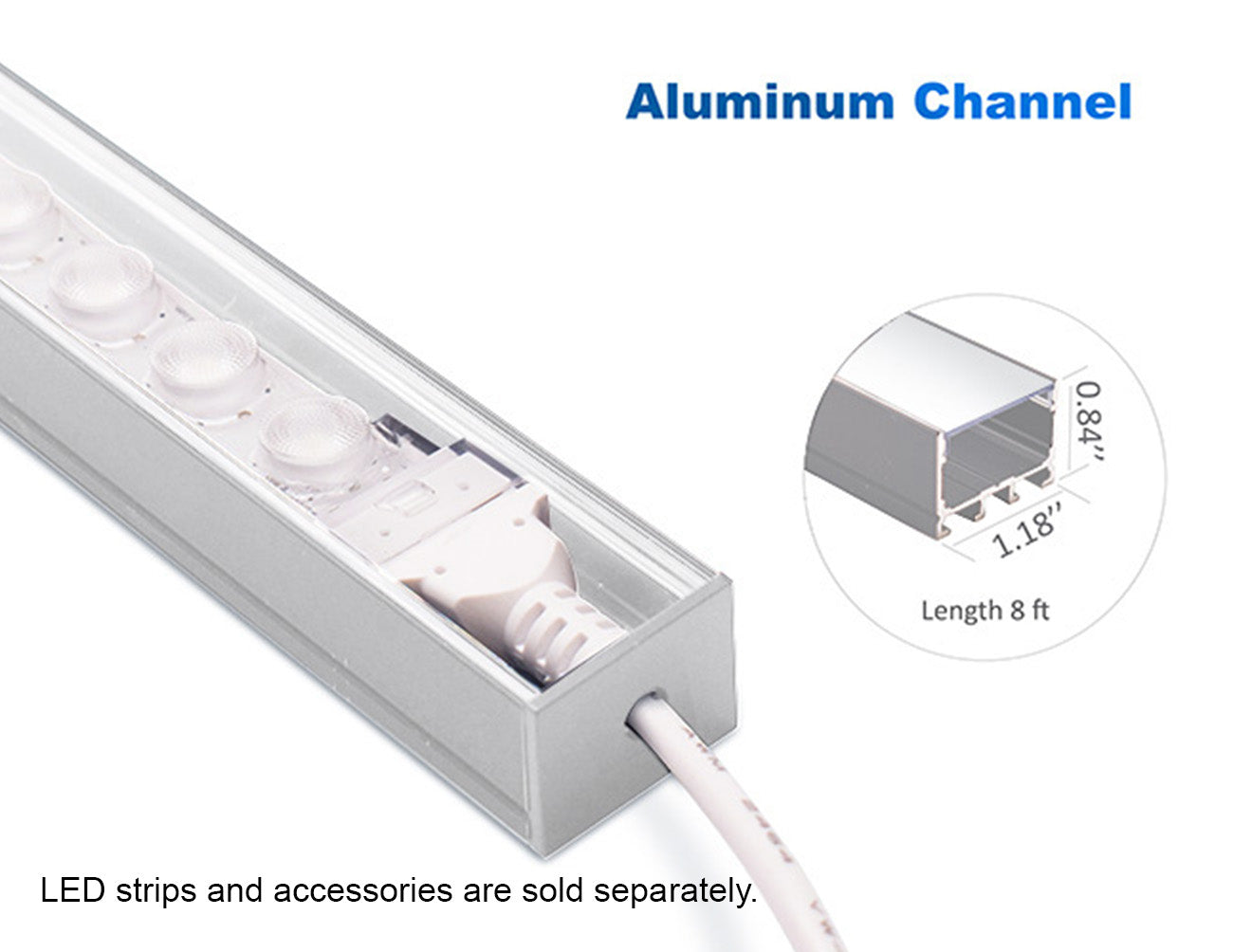

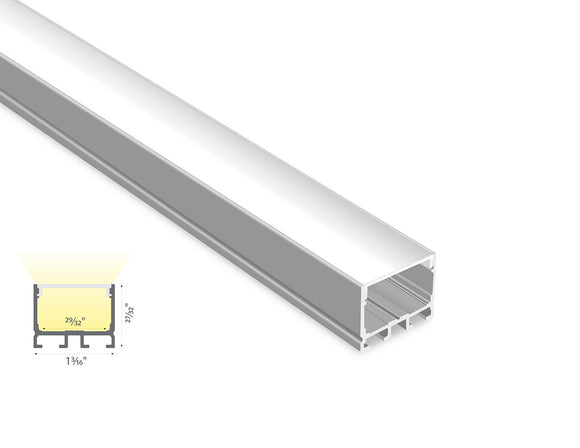

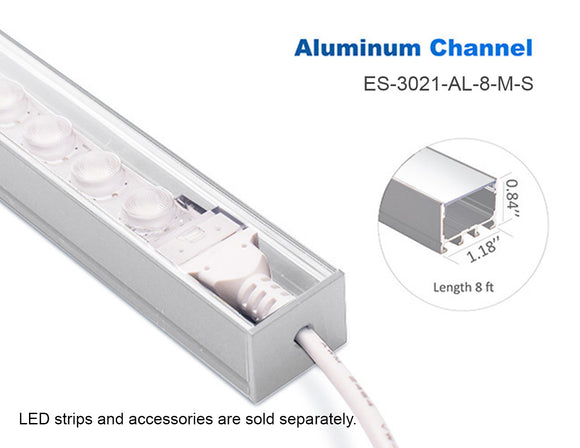

ES-3021 is a rectangular shaped channel made of anodized extruded aluminum with a clear diffuser and has a dimension of 1-6/32” in width and 27/32” in height. Each piece is 94” long and has a black color finish, and comes with inner clips to a stabilize compatible wall washer strip light. Three grooves at bottom of each channel help seamless connections of the channels using straight extended connectors (sold separately).

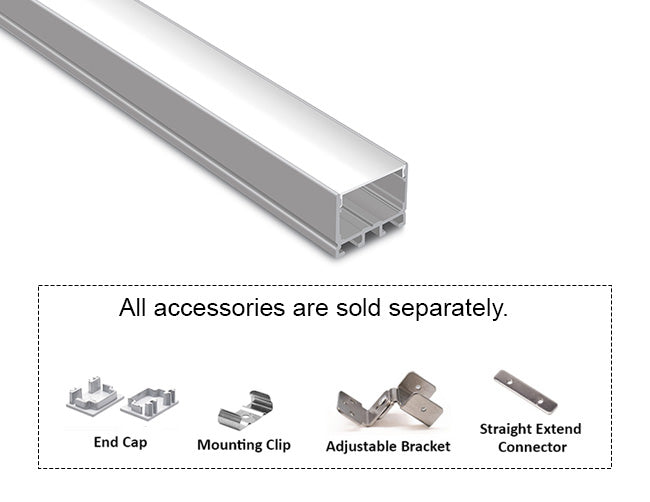

The aluminum channel can be surface mounted directly, or surface mounted using adjustable brackets (sold separately) so that lighting angles can be easily adjusted. Other compatible accessories (end caps, metal clips, and mounting clips) are also available to help a smooth installation. Although the channel itself is not waterproofed (IP20), GL LED wall washer light that is waterproofed (IP65) can be placed inside of the channel for an outdoor application.

Note: LED strip light not included. The LED channels are designed for indoor use. If used outdoors, they are not waterproof. Make sure the LED strip you choose is rated for outdoor use.

Documents

Aluminum Channel Specification - ES 3021

Technical Advantages of Aluminum Channels

Looking to upgrade your LED lighting system? Aluminum LED channels deliver several engineering and design benefits:

·Architectural Integration
Aluminum profiles hide wires and LED strips, blending seamlessly into ceilings, walls, and furniture.

·Diffused Lighting Effects
Frosted diffusers spread light evenly and reduce glare, ideal for ambient and task lighting.

·Efficient Thermal Control
Aluminum naturally dissipates heat, preventing LED overheating and improving performance.

·Protection
Keep your lights safe from dust, water, and mechanical damage.

·Customization & Modularity
Available in multiple shapes (U-shaped, corner, recessed), these channels can be tailored to fit any lighting layout.

·LED System Longevity
Better protection and cooling = longer LED life + fewer replacements.

Compatible Products

LED Wall Washer Strip Light - Single Color
