With updated technology, this product is built to directly connect to a 120V high voltage power source, and no additional transformers/drivers are needed anymore.

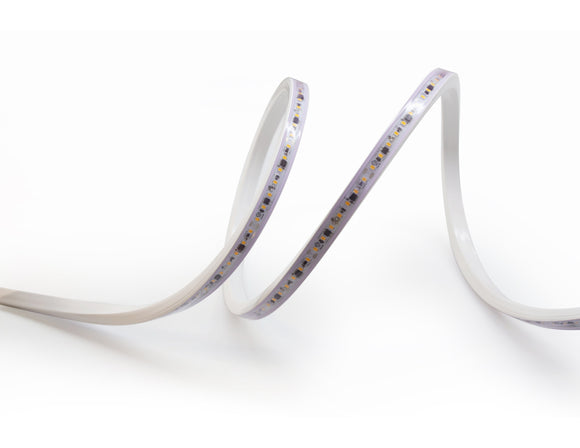

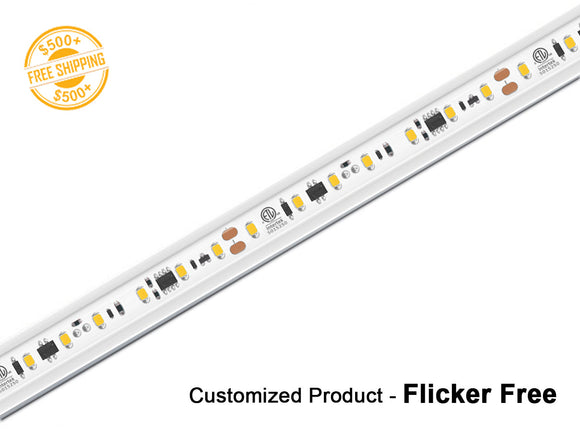

The flicker-free 120V LED strip light features a minimal flicker rate of less than 5%, making it ideal to reduce eye fatigue and improve visual comfort and a perfect light source for studio-quality video recordings. Without the need for drivers, the 120V strip light can be connected directly to line voltage outlets for an effortless installation. It is compatible with Triac dimmers and can run up to 100 feet without voltage drop. The flicker-free 120V LED strip light is constructed with durable IP65 PVC extrusion and is suitable for both indoor and outdoor applications
All 120V Dimmable LED strip lights are to be made at our shop to customized lengths following project requirements from customers to ensure the best performance of the lights. Once an order for making the lights has been completed, no cancellations, returns, or exchanges will be accepted except for manufacturer defects or damages.
Note:
Each piece of the product may or may not contain one straight connector.
All IP65-rated products are for wet locations only, and they cannot be used in water or in places where water might accumulate.
 |
 |

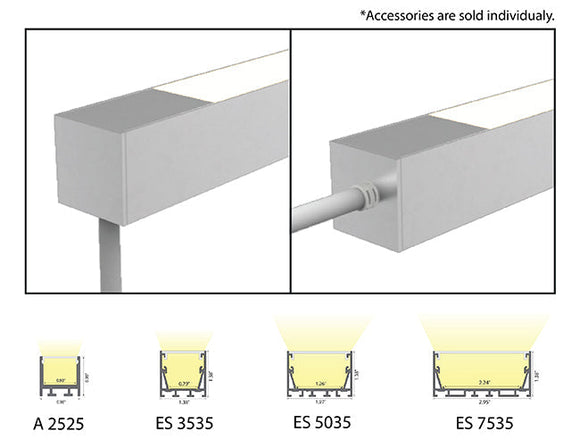

Compatible Aluminum Channel:
 |
 |
| ES 3535 | ES 5035 |
120V LED Strip Light Comparison:
|
Model
|
120V Strip Light PRO-S
|
120V Strip Light COB
|
120V Strip Light Flicker Free
|
120V Strip Light PRO-H
|
 |
 |
 |
 |
|
|
Input
|
120VAC
|
120VAC
|
120VAC
|
120VAC
|
|
Color Rendering
|
CRI>=90
|
CRI>=90
|
CRI>=90
|
n/a
|
|
Min Section
|
4inches
|
6inches
|
3inches
|
12inches
|
|
One Run Maximum
|
100ft
|
100ft
|
100ft
|
164ft
|
|
Power/ft
|
4.5W
|
4.5W
|
4W
|
4W
|
|
Dimmable
|
ELV dimming
|
ELV dimming
|
ELV dimming
|
ELV dimming
|
|
CCT & Lumen/ft
|
2700K-380LM
3000K-400LM 4000K-440LM |
2700K-247LM
3000K-280LM 4000K-282LM |
2700K-270LM
3000K-270LM 4000K-320LM |
Blue-60LM
Red-34LM |
|
Installation Type
|
Surface mount clip
Surface mount channel |
Surface mount clip
Surface mount channel |
Surface mount clip
Surface mount channel |
Surface mount clip
Surface mount channel |
Frequently bought together:
 |
 |
 |
| 120V Dimmable Strip Lights | ELV Dimmer | 120V Strip Light Accessories |
Q&A:
Do I need a high voltage or a low voltage LED strip light?
High voltage LED strip lights operate within the range of 110-220V AC, which is the standard voltage used in most homes and buildings. These lights do not require an additional driver and can be directly plugged into a line outlet for illumination. This streamlined setup helps reduce both material costs and labor for installation. High voltage LED strip lights maintain their brightness consistently over long runs without experiencing voltage drop issues. They are typically compatible with ELV dimmers and are well-suited for indirect lighting applications. Additionally, they are suitable for large-scale, long-distance projects, both indoors and outdoors.
On the other hand, low voltage LED strip lights operate at 12V or 24V DC and necessitate a separate transformer or power supply to function. This voltage category offers a wider range of models and compatible components, making low voltage strip lights the preferred choice when flexibility is a key consideration. They can be used with various types of dimmers and are suitable for both direct and indirect lighting in indoor and outdoor settings.
Therefore, choosing between high voltage and low voltage LED strip lights depends on various factors such as the scope and type of your project, and the degree of customization and control needed, etc.
Please read here for more details about the differences between high voltage and low voltage strip lights.
