LED 3D Neon Light - Single Color - 3000K - 24V

SKU: GL-3DN-2216-240-3000K-24V-IP65 (16.4ft)

This LED 3D Neon Light is durable and flexible with a 120mm minimum bending diameter. It has three-dimensional emitting output providing uniform and even light without any hotspots. It is good for damp location. Using 24VDC power input, the power connection and installation of this 3D neon light is as same as regular LED strip light.

Note:
All IP65-rated products for wet locations only, cannot be used in water or in places where water might accumulate.

When the product exceeds 16.4FT, voltage drop may occur. Using 32.8FT dual-end power supply can effectively prevent voltage drop, ensuring uniform brightness and better performance.

Customized Service is available, click here to get more information.



Specifications:

Input Voltage question_mark

24VDC

Power Consumption question_mark

4.4 W/ft

Dimmable question_mark

PWM, Forward phase, Triac, 0-10V, MLV, ELV

Dimension

3/8 x 3/8 in

Lead Wire question_mark

20 AWG, 2ft (2 Wires)

No Voltage Drop question_mark

16.4 ft Max

Color Temperature question_mark

3000K

LED chip

2216

Brightness

414 lm/ft

Operating Ambient Temperature

-20°F~60°F

Efficacy question_mark

94.1 lm/W

LED Lifetime

50,000 hrs

Color Rendering Index (CRI) question_mark

>90

IP Rating question_mark

IP65 (Wet location)



Documents:

LED 3D Neon Light Specification
LED 3D Neon Light Single Color Installation Manual

View Accessories


Power Supply Calculator – Designed just for You

Enter your LED strip light length and wattage per foot, get the power supply you need in seconds.

Power Calculator

The power supply you need is

Based on the result, round up and select the nearest higher power supply to ensure sufficient capacity.

Go To Dimmable Power Supply Page >>>

Go To Non-dimmable Power Supply Page >>>



How to Choose the Right LED Controller for Your LED Lighting Project?  Find Out >>

LED Controller

 Go To Dimmers & Controllers Page >>>


Low Voltage Neon Light Q & A

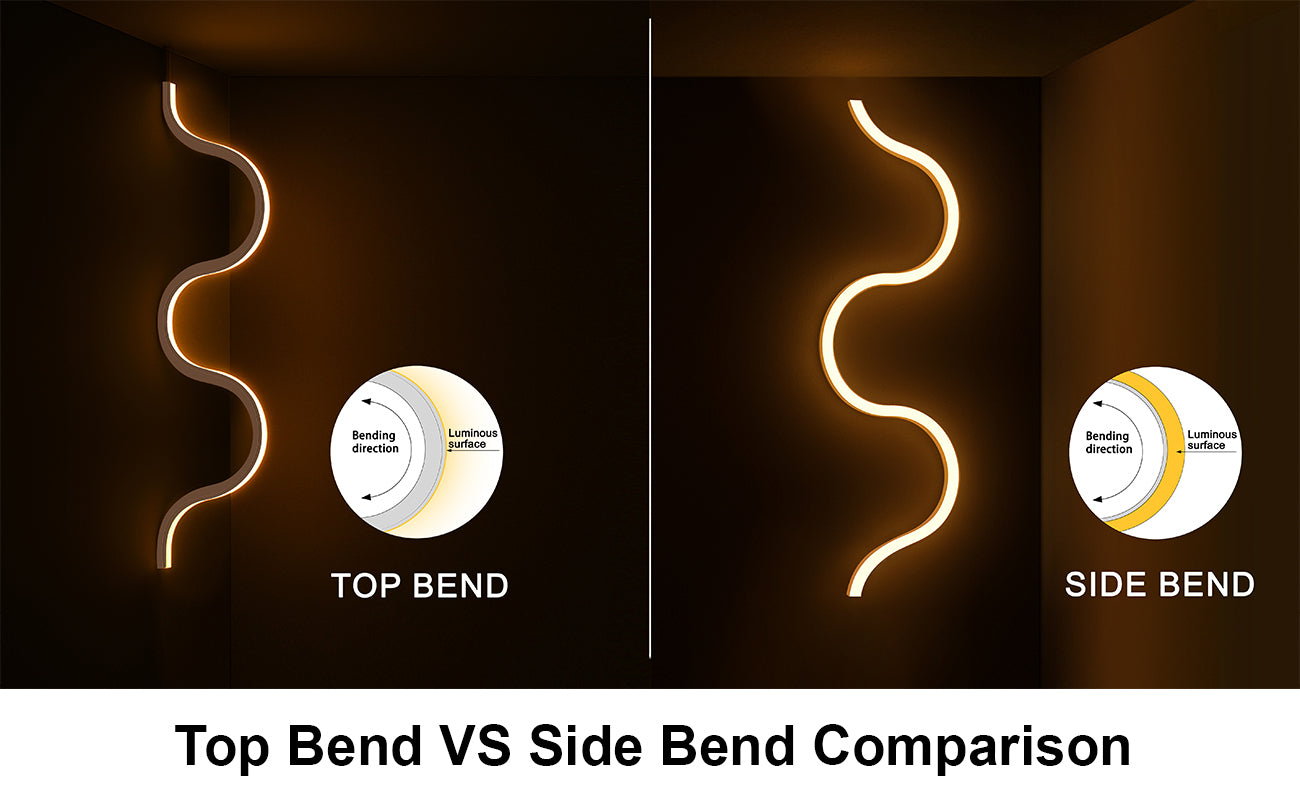

Low Voltage Neon Flex – Top Bend vs. Side Bend

LED Controller

Key Characteristics Comparison
Top Bend Side Bend
Bends along the light-emitting surface axis(front/back) Bends perpendicular to the light surface(left/right)
Cannot bend sideways. Cannot bend frontally.
Ideal for front-facing linear designs(e.g., signage outlines, cove lighting) Easy Handles all kinds of curves design.
Application:
Top Bend: Retail signage, architectural accents.
Side Bend: Artistic installations, curved structures.

Note: Both types support single color and RGB color mixing.


Dimming, Non-Dimming & RGB — the right configuration matters.
Discover how to pick LED strips, power supplies, and dimmers the right way.
READ MORE >>>


Instruction Video: LED 3D Neon Quick Connection

Instruction Video: How to Customize LED 3D Neon
