PIR motion sensor turns LED lights on when human motion is detected.
LED light turns off automatically 45 seconds after no motion is detected.

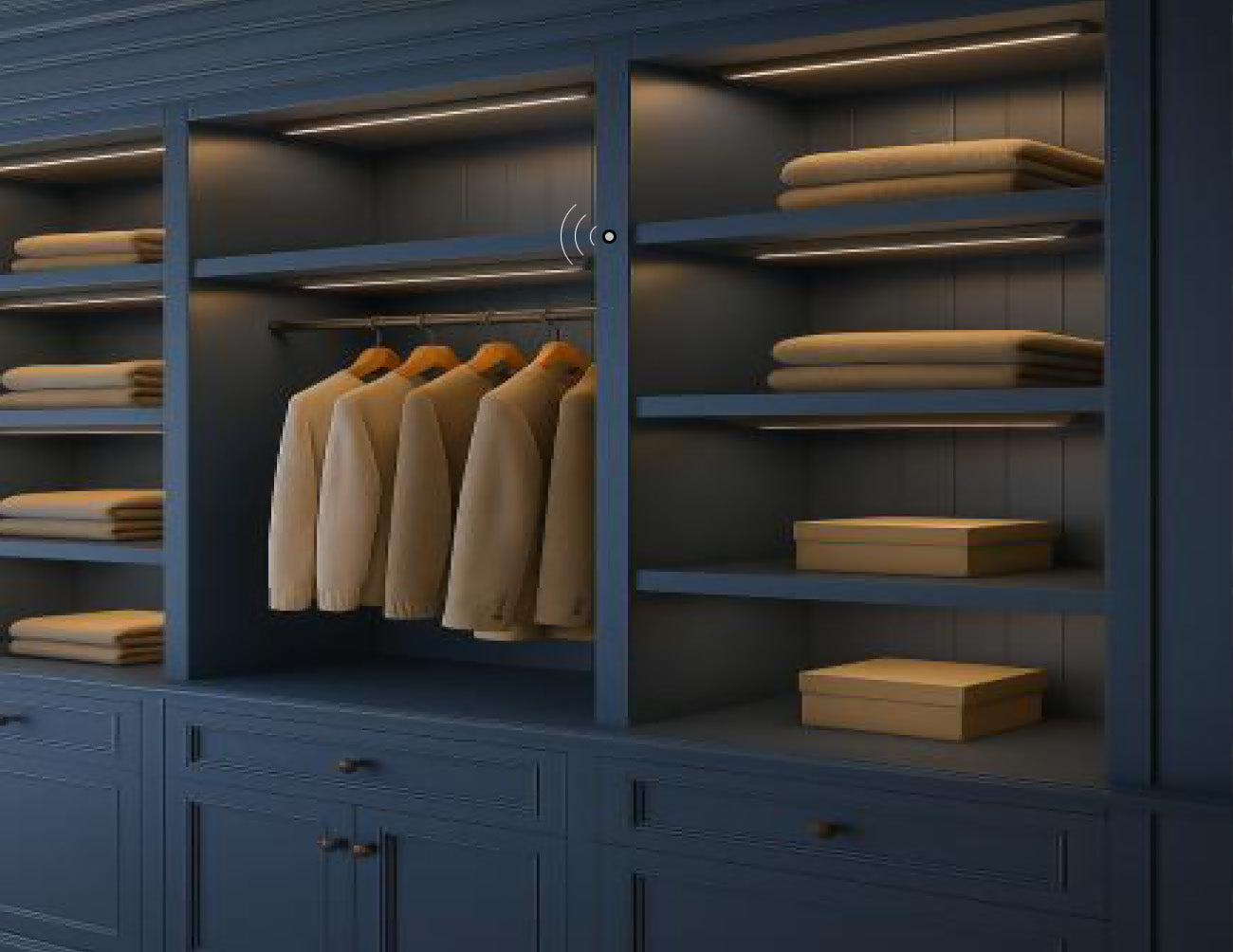

Equipped with a PIR motion sensor, the Undercabinet Light – PIR Motion Sensor – Wired ensures the wardrobe interior is always well-lit when in use and conserves energy by turning off automatically after inactivity.
Undercabinet Light - PIR Motion Sensor - Wired (for LDV/LDL centralized control) - Black-4

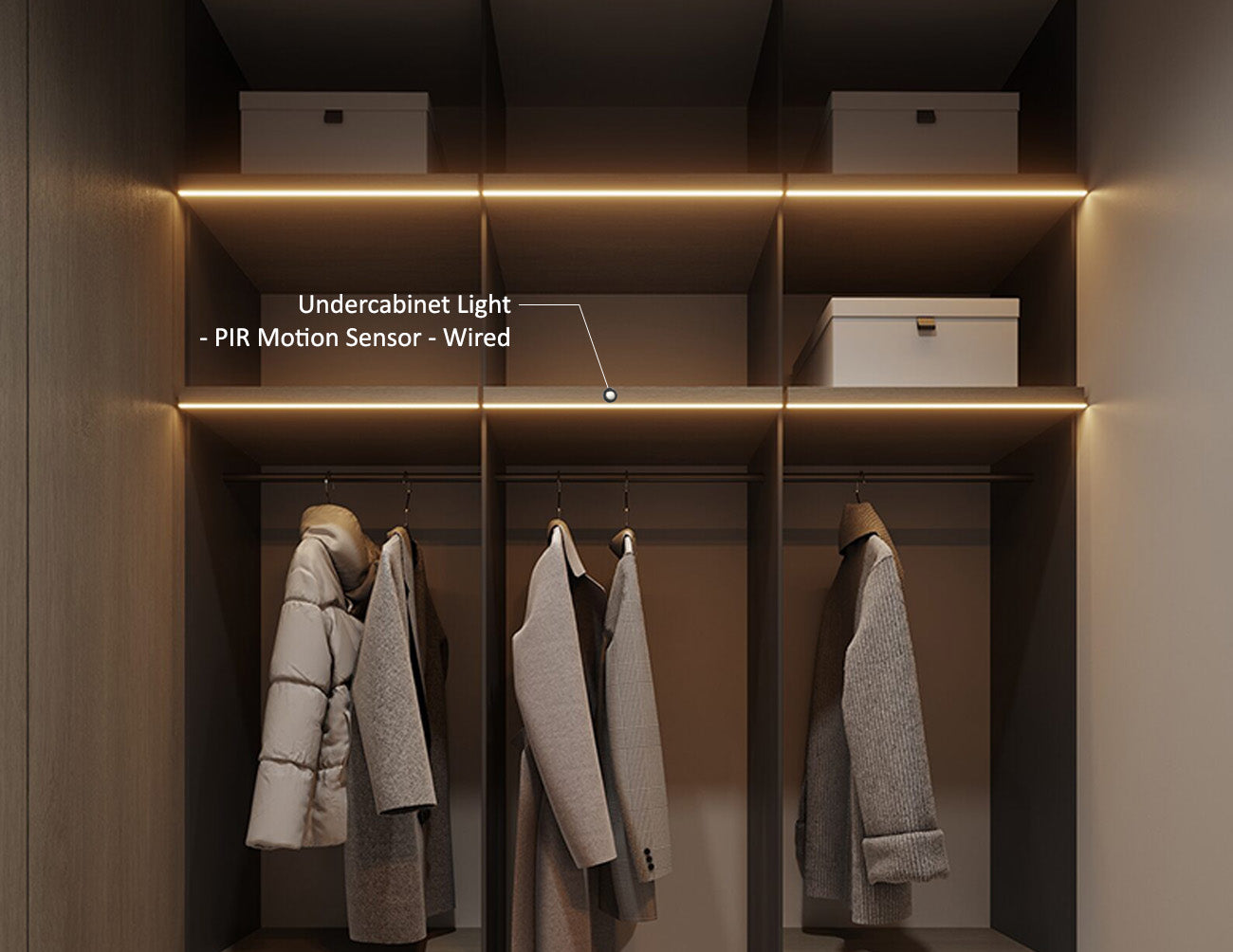

PIR motion sensor control installed under cabinet for smart and energy-efficient lighting.

Undercabinet Light - PIR Motion Sensor - Wired (for LDV/LDL centralized control) - Black

SKU: 96691P-LDV-TG

Free

Description

Product Details

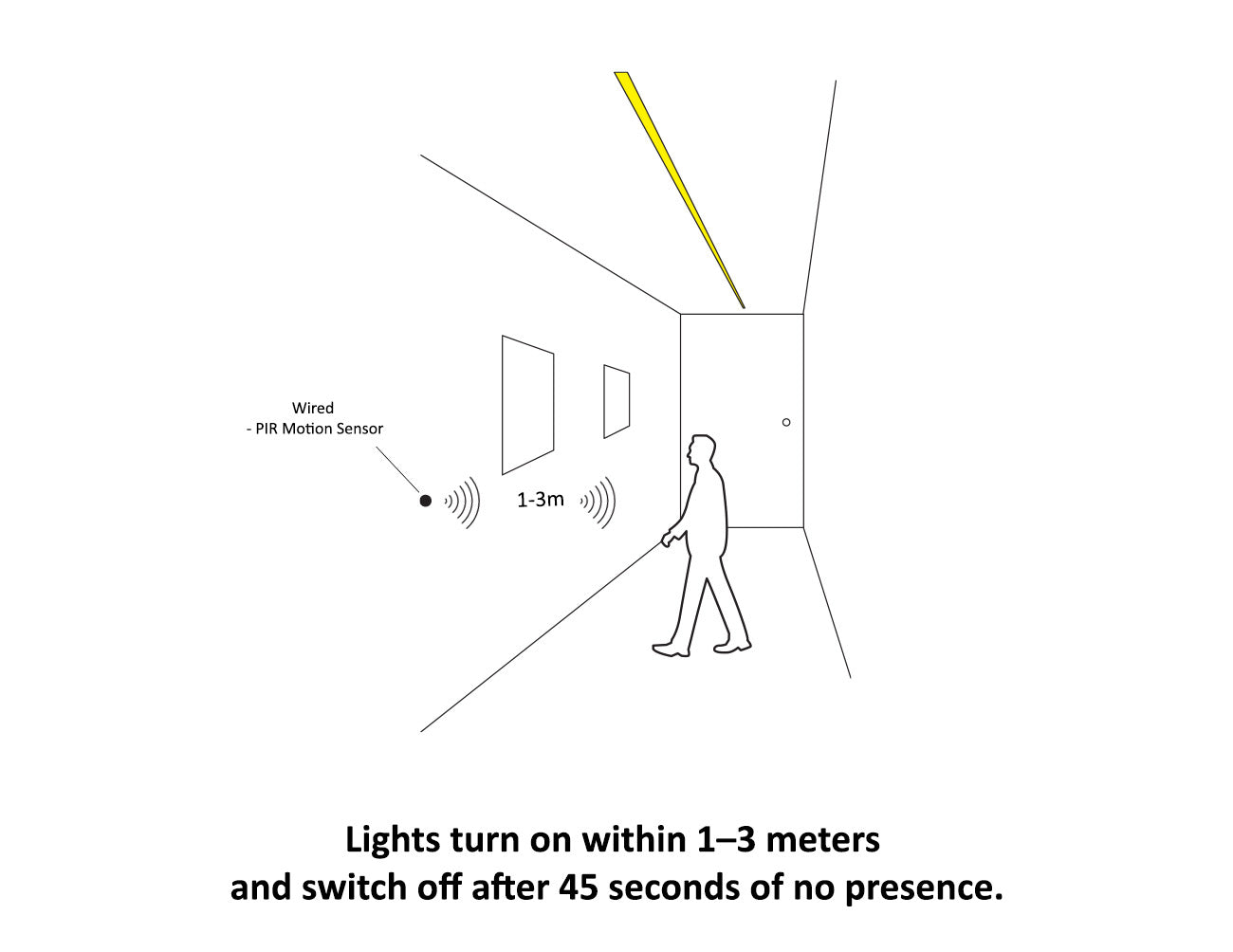

The Low Voltage Wired Sensor – PIR Motion Sensor Control is specially designed for undercabinet lighting. Equipped with a PIR motion sensor, it automatically switches on the light when it detects human movement within a 1–3 meter range, and turns it off 45 seconds after no motion is detected, providing smart and energy-efficient lighting control. It is ideal for cabinets, closets, wardrobes, and other furniture lighting applications.

Specifications

Type 96691P-LDV-TG
Input Voltage 24VDC
Output Current 3A
Switch Mode PIR
Detecting Range 1-3m
Finish Anthracite

Documents

PIR Motion Sensor - Wired_Specification
