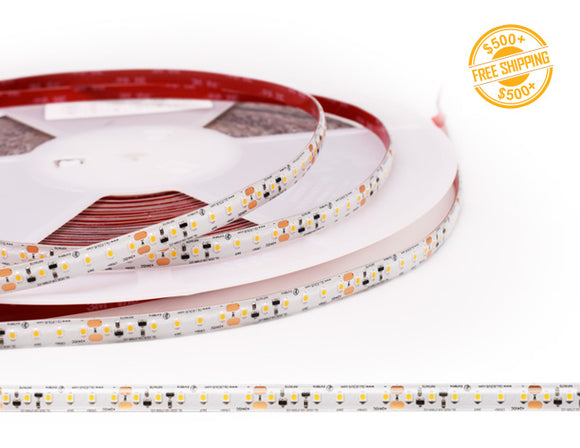

LED Strip Light - Single Color - Long Run White INFINITE - Wet Location IP65 - 24V

SKU: GL-3528-120-2700K-24V-IP65-CC-20

Login to view price

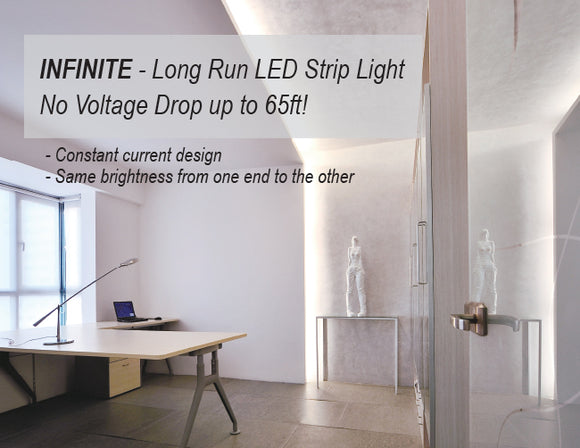

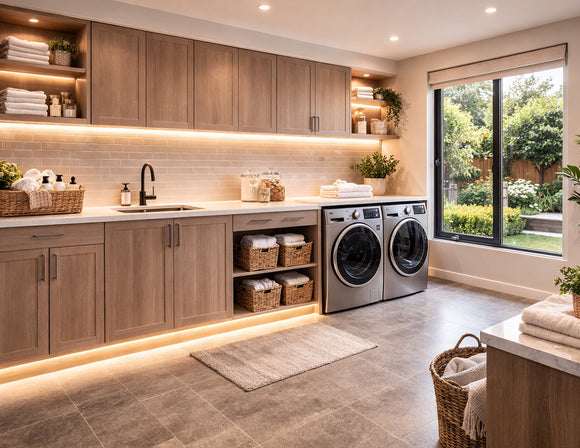

INFINITE Series LED strip light features a design that allows the strip light to run continuously up to 65ft without voltage drop or brightness variations with a single power supply (regular LED strip lights typically have a maximum run of 16.4ft). This feature makes the INFINITE model strip light perfect for back lighting, ambient lighting, accent décor, cove lighting, under cabinet lighting, bookshelf lighting, or other indoor applications that have a long-distance requirement.

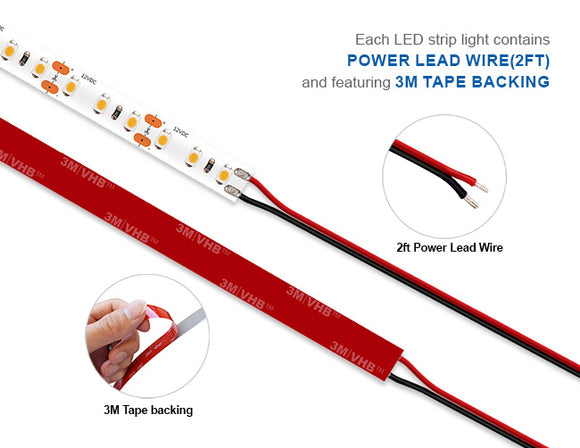

The LED strip light has a low power output of 3W per foot and generates a brightness of up to 234LM/ft. Different color temperatures are available, including 2700K, 3000K, 3500K, and 4000K.  The regular density LED tape light can be easily cut into separate 6-LED segments (1 31/32 inches) and installed with its convenient peel-and-stick 3M VHB adhesive backing (Click to see How to apply 3M double-sided tape properly). With a CRI of 90+, the strip light provides rendering with pure illumination, enhancing the vibrancy and accuracy of colors and displays.

This LED strip light requires a 24VDC transformer, and it can be easily dimmed using compatible power supplies and controllers. GL LED provides different options on transformers, controllers, and aluminum channels (extrusions) that are compatible with the strip light.

Features:
· Continuous run up to 65 ft with even light
· Perfect for ambient light
· Quick installation, labor cost saving

Note:
All IP65-rated products for wet locations only, cannot be used in water or in places where water might accumulate.

Customized Service is available, click here to get more information.

Want to try our product sample >>Click here!

LED Low Voltage Light System

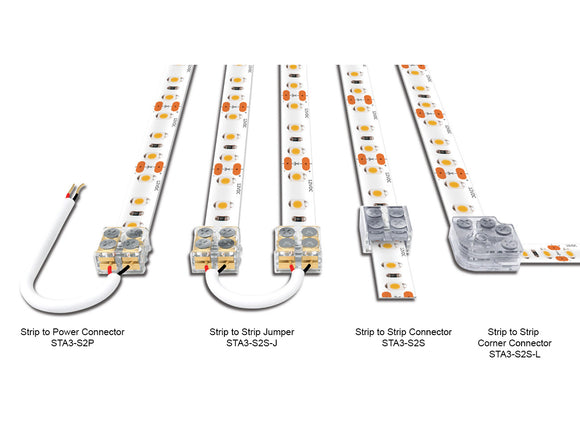

Compatible Connectors:

Strip to Strip Connector Strip to Strip Corner Connector Strip to Power Connector Strip to Strip Jumper

Transformer Recommendation for LED Strip Light - Single Color - INFINITE (3W/ft)

For Indoor Use: (use 80% capacity)
Length of Strip Light(ft) 0-2 0-9 0-9 0-16 0-16 0-25
Transformer APV-8W-24V APV-35W-24V YHY-36W-24V YHY-60W-24V LPV-60W-24V TPZ-96W-24V
Length of Strip Light(ft) 0-26 0-40 0-53 0-85 0-160 **
Transformer XLG-100W-24V XLG-150W-24V XLG-200W-24V HLG-320W-24V HLG-600W-24V **

Length of Strip Light(ft) 0-6 0-40 0-53 ** ** **
Dimmable Transformer P-25W-24V P-150W-24V P-200W-24V ** ** **
Length of Strip Light(ft) 0-8 0-16 0-25 0-40 0-53 0-80
Dimmable Transformer F-30W-24V G-60W-24V G-96W-24V F-150W-24V F-200W-24V G-300W-24V
For Outdoor Use:(use 50% capacity)
Length of Strip Light(ft) 0-10 0-16 0-25 0-33 0-53 0-100
Transformer LPV-60W-24V XLG-100W-24V XLG-150W-24V XLG-200W-24V HLG-320W-24V HLG-600W-24V

Length of Strip Light(ft) 0-25 0-33 ** ** ** **
Dimmable Transformer P-150W-24V P-200W-24V ** ** ** **
Length of Strip Light(ft) 0-5 0-10 0-16 0-25 0-33 0-50
Dimmable Transformer F-30W-24V G-60W-24V G-96W-24V F-150W-24V F-200W-24V G-300W-24V

More LED Strip Lights:
Model
INFINITE-W

Price
$
$$
$$$
$$
LED Color
2700K
3000K
4000K
2700K
3000K
4000K
1800K
2700K
3000K
4000K
6500K
2700K
3000K
3500K
4000K
Brightness
up to 348 lm/ft
up to 575 lm/ft
up to 848 lm/ft
up to 234 lm/ft
LED Density
36 LEDs/ft
73 LEDs/ft
73 LEDs/ft
36 LEDs/ft
Power Consumption
3 W/ft
4.4 W/ft
7 W/ft
3 W/ft
Efficacy
up to 116 lm/W
up to 130 lm/W
up to 121 lm/W
up to 78 lm/W
CRI
90+
90+
94+
90+
IP Rating
Dry Location
Dry Location
Dry Location
Dry Location
Length
16.4ft
16.4ft
16.4ft
32.8ft
Input
12V/24V DC
24V DC
24V DC
24V DC
No Voltage Drop
16.4ft
16.4ft
16.4ft
65.6ft

Frequently bought together:

LED Strip Light
LED Controller
LED Power Supply
LED Aluminum Channel
All LED Strip Light All LED Controller All LED Transformer All Aluminum Channel



Q&A:

Why do you need to consider the maximum run of an LED strip light?

When current flows through the copper traces on an LED strip, the resistance of the copper causes a voltage drop to occur. This voltage drop can be significant and affect the brightness of the strip light. The amount of voltage drop is dependent on various factors, such as the length of the LED strip, the thickness of the copper traces, the current flowing through the strip, and the distance between the power source and the farthest point on the strip.

Manufacturers typically specify a maximum run distance for their LED strip lights, which is noted on the specification sheet. Within the maximum run length, no apparent voltage drop will be observed with an appropriate power supply or transformer. However, if the specified maximum run distance is exceeded, the LED strip lights may become dim or less bright as intended.

If you plan on installing more than the maximum run of your LED strip lights, it's necessary to wire additional strip sections separately to the power supply instead of extending directly from the previous strip. This prevents a voltage drop, ensuring that your LED strip lights remain bright and vibrant.



Instruction Video: INFINITE Model GL LED Strip Light

Instruction Video: How to Prevent Voltage Drop

Instruction Video: How to Cut & Solder Your Low Voltage LED Strip Light

  • Model No: Single Color - Long Run White INFINITE - Dry Location IP20 - 24V, SKU: GL-3528-120-xxxxK-24V-IP65-CC
  • Operation Voltage: 24VDC
  • Wattage per ft: 3W/ft
  • LED per ft: 36 LEDs/ft
  • Brightness/Lumen per ft: 226 LM/ft

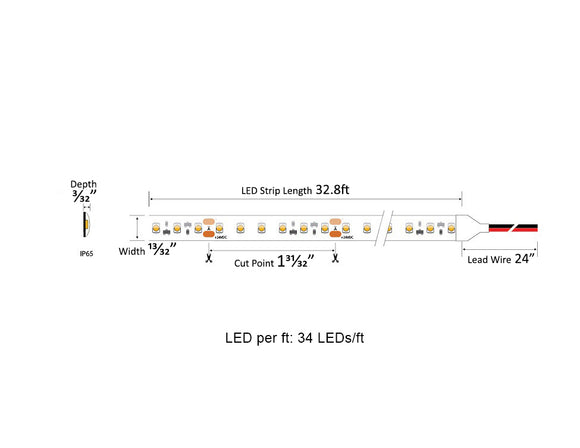

  • Dimension: L 32.8'/65.6', W 0.39", D 0.09"
  • Dimming Method: PWM, Forward phase, Triac, 0-10V, MLV, ELV
  • Work Environment/IP Rating: IP65 (Wet location)
  • Long Lifetime: 50,000hrs
  • Color Rendering Index (CRI): >90
  • Color Temperature options (CCT): 2700K, 3000K, 3500K, 4000K
  • Beam Angle: 120°
  • Cuttable Increments: 1.97"
  • One Run Max (No Voltage Drop): 65.6'
  • Certification: UL
  • Warranty: Limited 5 years warranty
  • 3M tape on the back

LED Strip Light Specification - INFINITE
3528-120-2700K-24V-IP65-CC IES File
3528-120-3000K-24V-IP65-CC IES File
3528-120-4000K-24V-IP65-CC IES File
Low Voltage LED Strip Light Installation Manual
