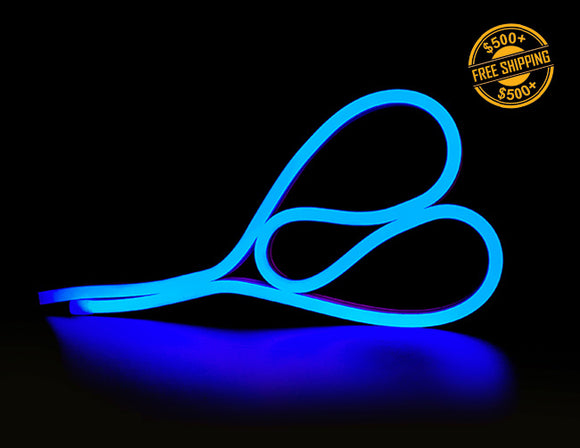

LED Side Bend Neon Light WINT - Single Color - Wet Location - Blue Jacket - 24V - 1

LED Side Bend Neon Light WINT - Single Color - Wet Location - Blue Jacket - 24V

SKU: GL-WINT-2835CVAB-14 (16.4ft)

Login to view price

20+pcs ask for quote
Free Sample Available
Description Specification Accessories

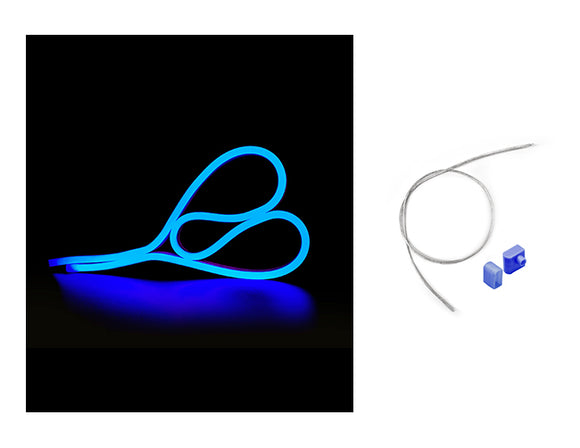

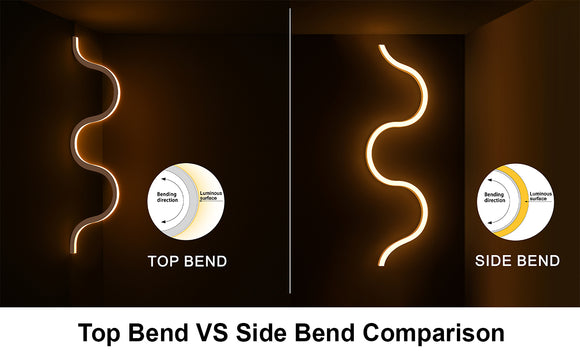

LED Side Bend Neon Light WINT is durable and flexible with 30mm minimum bending diameter. Any length cuttable, super flexible bend with dome profile provides brilliant outlines front and side directions. It is good for damp location. Using 24VDC power input, the power connection and installation of this WINT neon light is as same as regular LED strip light.

Note:
All IP67-rated products for wet locations only, cannot be used in water or in places where water might accumulate.

Customized Service is available, click here to get more information.

LED Low Voltage Light System


Transformer Recommendation for WINT Neon Light Blue

For Indoor Use: (use 80% capacity)

Length of Strip Light(ft) 0-1 0-6 0-6 0-10 0-10 0-17
Transformer APV-8W-24V APV-35W-24V YHY-36W-24V YHY-60W-24V LPV-60W-24V TPZ-96W-24V
Length of Strip Light(ft) 0-18 0-27 0-36 0-58 0-109 **
Transformer XLG-100W-24V XLG-150W-24V XLG-200W-24V HLG-320W-24V HLG-600W-24V **

Length of Strip Light(ft) 0-4 0-27 0-36 ** ** **
Dimmable Transformer P-25W-24V P-150W-24V P-200W-24V ** ** **
Length of Strip Light(ft) 0-5 0-10 0-17 0-27 0-36 0-54
Dimmable Transformer F-30W-24V G-60W-24V G-96W-24V F-150W-24V F-200W-24V G-300W-24V

For Outdoor Use: (use 50% capacity)

Length of Strip Light(ft) 0-6 0-11 0-17 0-22 0-36 0-68
Transformer LPV-60W-24V XLG-100W-24V XLG-150W-24V XLG-200W-24V HLG-320W-24V HLG-600W-24V

Length of Strip Light(ft) 0-17 0-22 ** ** ** **
Dimmable Transformer P-150W-24V P-200W-24V ** ** ** **
Length of Strip Light(ft) 0-3 0-6 0-10 0-17 0-22 0-34
Dimmable Transformer F-30W-24V G-60W-24V G-96W-24V F-150W-24V F-200W-24V G-300W-24V


More LED Side Bend Neon Lights:

Model

LED Color
6500K
Blue Chip-White Jacket
Blue Jacket
Red Jacket
RGB
Brightness
127.6 lm/ft
16.3 lm/ft
3.5 lm/ft
24.2 lm/ft
35.8 lm/ft
Power Consumption
4.4 W/ft
4.4 W/ft
4.4 W/ft
4.4 W/ft
4.4 W/ft
CRI
80+
/
/
/
/
IP Rating
Wet Location
Wet Location
Wet Location
Wet Location
Wet Location
Length
16.4ft/32.8ft
16.4ft/32.8ft
16.4ft/32.8ft
16.4ft/32.8ft
16.4ft/32.8ft
Input
24V DC
24V DC
24V DC
24V DC
24V DC
Max Run
16.4ft
16.4ft
16.4ft
16.4ft
16.4ft

Frequently bought together:

LED Strip Light
LED Controller
LED Power Supply
LED Aluminum Channel
All LED Strip Light All LED Controller All LED Transformer All Aluminum Channel
  • Model No: LED Side Bend Neon Light WINT - Single Color - Wet Location - Blue Jacket - 24V, SKU: GL-WINT-2835CVAB-14 (16.4ft)
  • Operation Voltage: 24VDC
  • Wattage per ft: 4.4W/ft
  • LED per ft: 36 LEDs/ft
  • Brightness/Lumen per ft: 3.5LM/ft

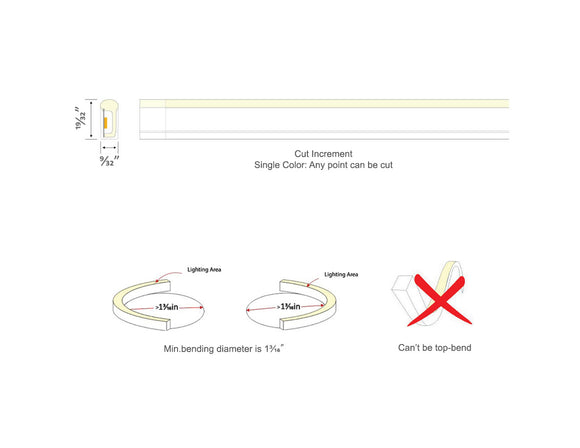

  • Dimension: L 16.4', W 0.28", D 0.59"
  • Dimming Method: PWM, Forward phase, Triac, 0-10V, MLV, ELV
  • Work Environment/IP Rating: IP67 (Wet Location)
  • Long Lifetime: 50,000 hrs (indoor)/36,000 hrs (outdoor)
  • Color Rendering Index (CRI): >80
  • Color Temperature options (CCT): Blue
  • Beam Angle: 120°
  • Cuttable Increments: 1 LED/Cut
  • One Run Max: 16.4'
  • Certification: UL
  • Warranty: Indoor 5 years, Outdoor 3 years

LED Side Bend Neon Light WINT Songle Color Specification
LED Side Bend Neon Light White Chip-Bluee Jacket IES File
LED Sidebend Neon Light Single Color Installation Manual

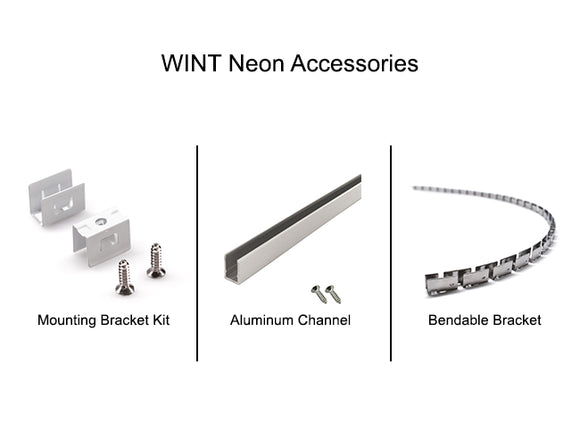

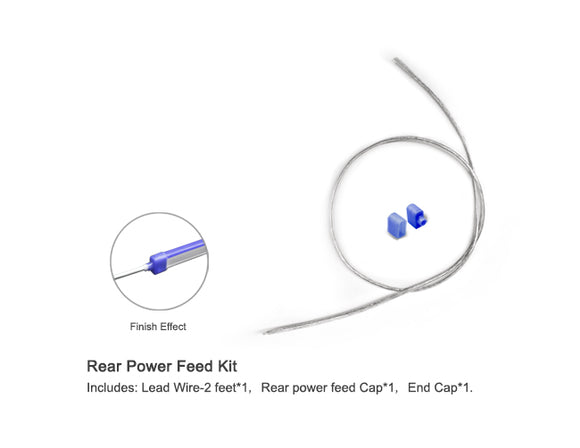

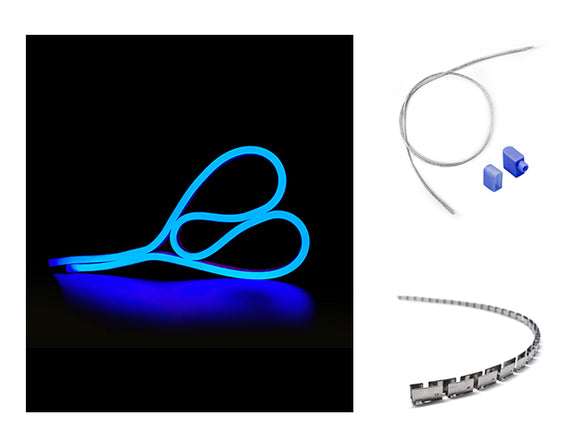

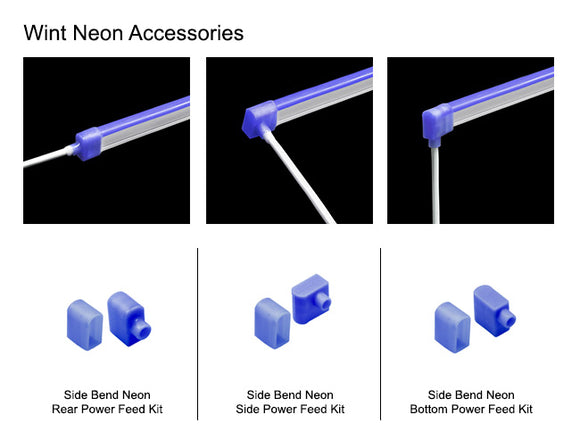

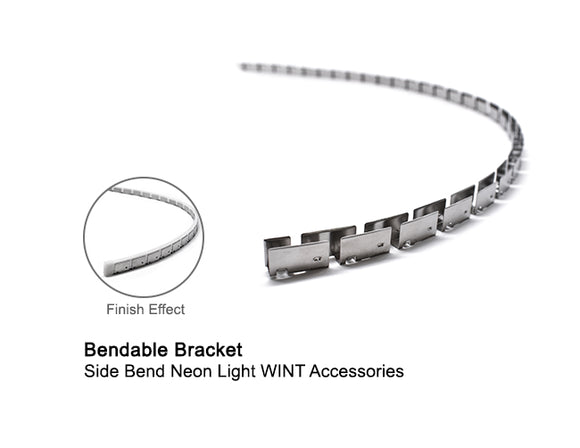

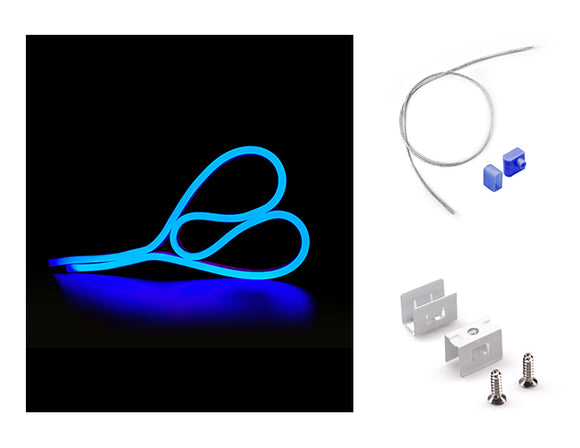

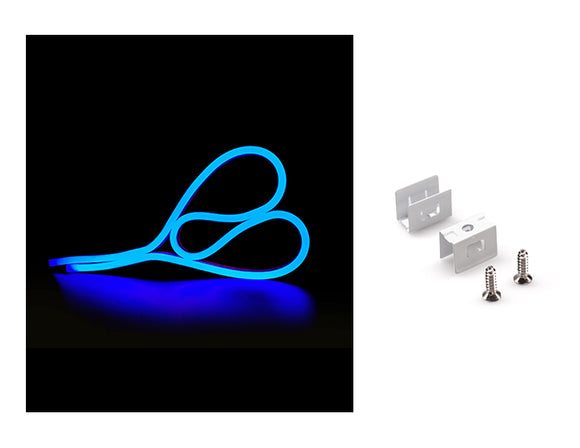

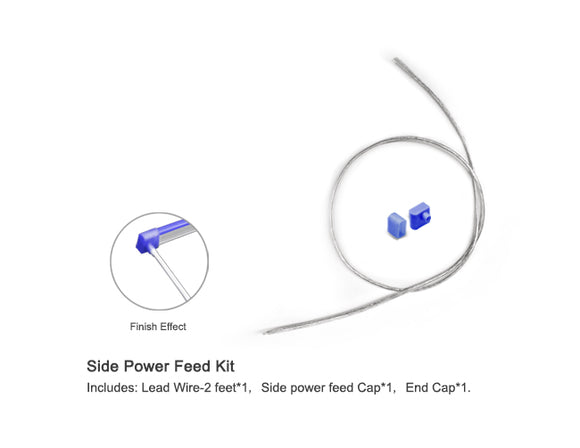

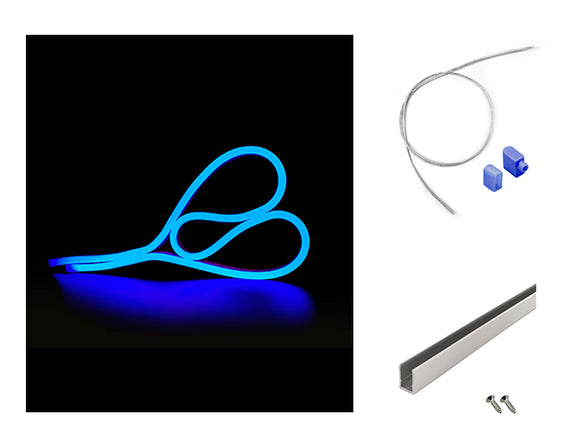

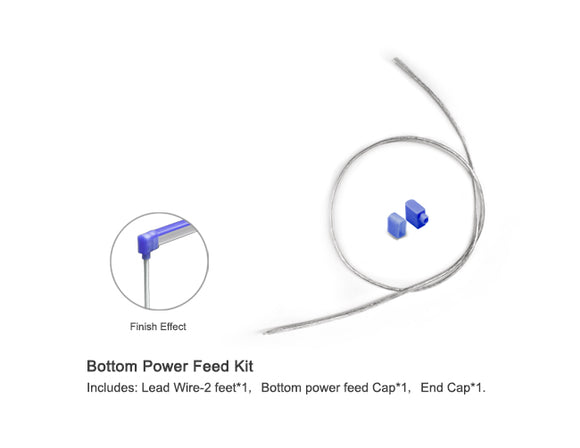

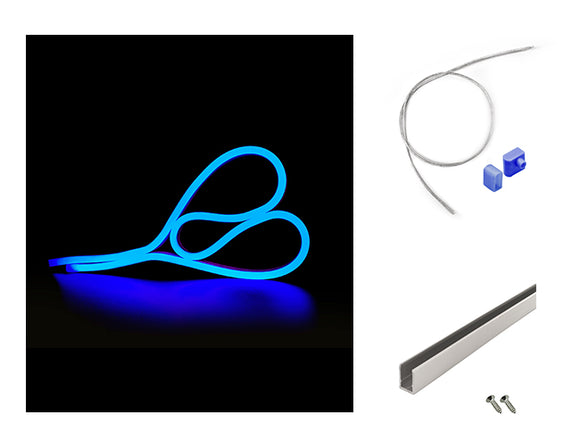

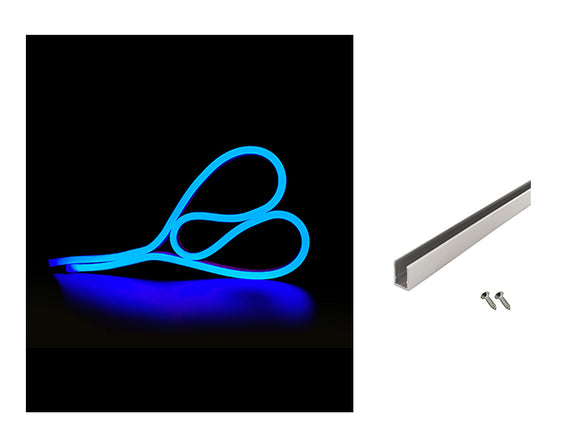

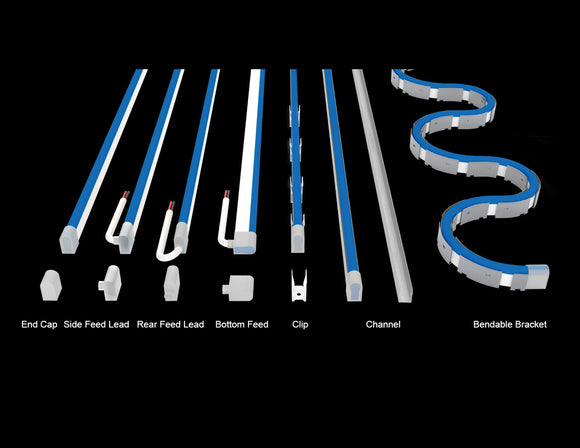

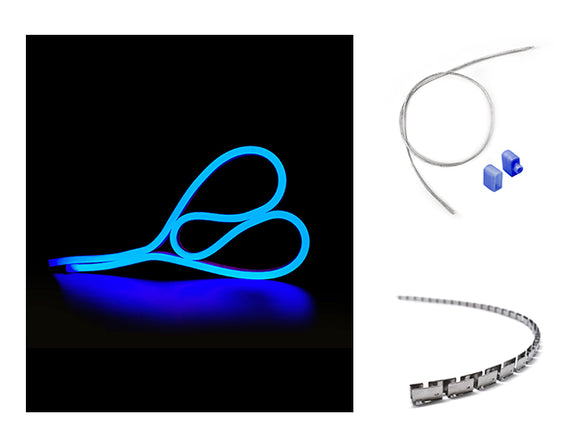

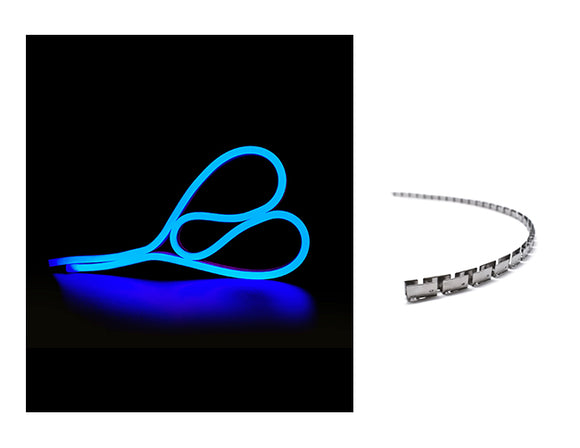

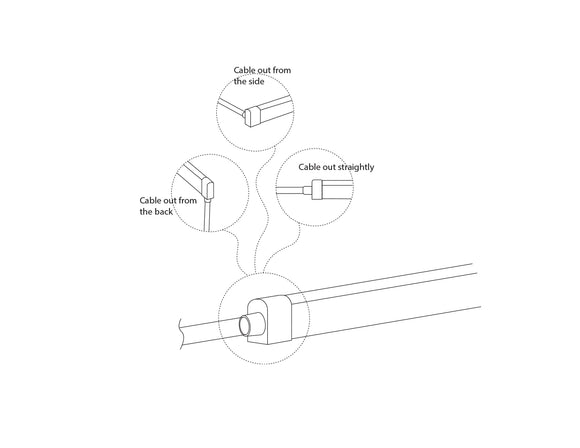

Mounting Bracket Aluminum Channel Bendable Bracket Power Lead Wire Kit Side Bend Neon Glue
