LED Semi-Cutoff Wall Pack Light 120W

SKU: GL-HWP-AC27-120W-50K-DB

Login to view price

GL LED Semi-Cutoff Wall Pack Light series can be widely used in indoor or outdoor lighting(Wet location), like mechanical or electronic processing
workshops, storage warehouses, steel mills, gas stations, toll booths, waiting rooms, the platforms of railway station, indoor stadiums.

  • Operation Voltage: AC120-277V
  • Power: 120W
  • Brightness/Lumens: 15800lm

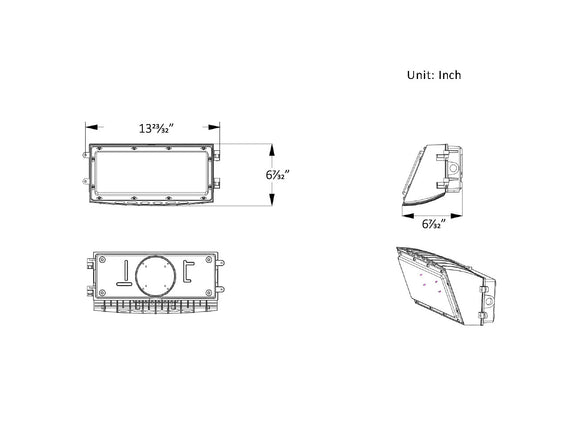

  • Dimension: L 13.7", W 6.2", H 6.15"
  • Carton Size: L 15.94", W 9.25", H 9.25"
  • Optional Dimming Function: 1-10Vdc
  • Work Environment/IP Rating: Wet Location/IP66
  • Color Rendering Index (CRI): Ra>70
  • Color Temperature Options (CCT): 5000K
  • Beam Angle: 83°
  • Finish Options: Dark Bronze/Black/White
  • Installation Options: Surface Mounted, Photocell
  • Net Weight: 9.1lbs
  • Motion Sensor Control Available: Photocell Control Available (Option)
  • Certification: DLC, UL
  • Warranty: 5 Years

LED Semi-Cutoff Wall Pack Light 120W Specification
Installation Guide
LED Semi-Cutoff Wall Pack Light 120W IES File
