XLG-100-24-A Mean Well 100W Constant Voltage Mode LED Driver

SKU: XLG-100W-24V

$43.71

The Mean Well XLG-100-24 is a high-performance, UL Recognized power supply offering 24V output with 100W capacity. Designed with short circuit, overload, and overvoltage protections, it ensures reliable and safe operation. Its IP67-rated enclosure makes it ideal for outdoor and industrial applications, such as LED street lighting, signage, and other harsh environment needs. The XLG-100-24 is energy-efficient, durable, and provides a cost-effective solution for a wide range of projects requiring stable power in challenging conditions.

Note:
All IP67-rated products for wet locations only, cannot be used in water or in places where water might accumulate.

LED Low Voltage Light System

Frequently bought together:

LED Strip Light
LED Controller
LED Power Supply
LED Aluminum Channel
All LED Strip Light All LED Controller All LED Transformer All Aluminum Channel

Instruction Video:

  • Model No: XLG-100W-24V
  • Input Voltage: 100-305VAC
  • Output Voltage: 24VDC, Constant Voltage
  • Wattage: 100W
  • Rated Current: 4A

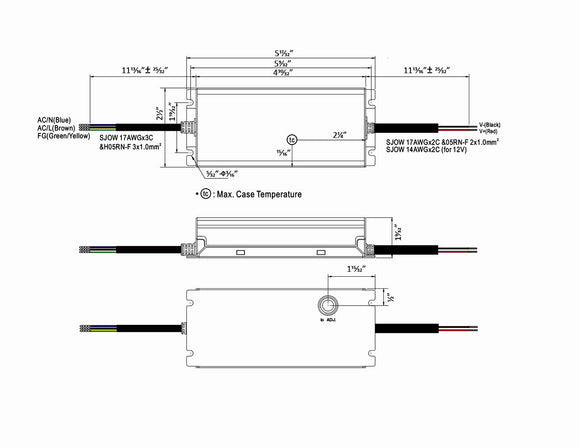

  • Dimension: L5 1/2", W 2 1/2", H 1 1/4"
  • Work Environment / IP Rating : IP67
  • Installation Options: Surface Mounted
  • Certification: RU
  • Warranty: 5 Years
  • Protection Method: Short circuit/OCP/OVP/OTP

Mean Well 100W Constant Power Mode LED Driver Specification

Separate accessories are available

Power Cable

Junction Box

T Grid Mount Bracket
