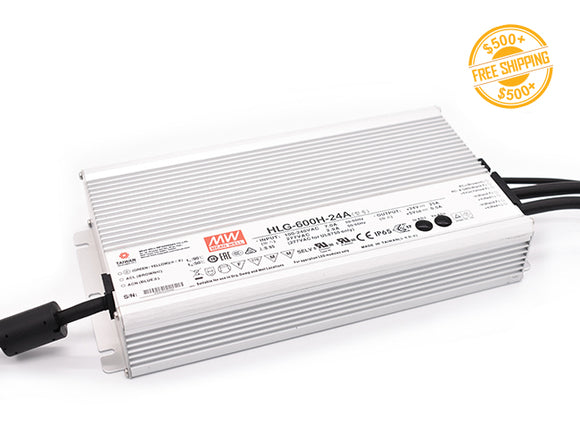

LED Driver HLG-600W-24V

SKU: HLG-600W-24V

Login to view price

This AC/DC LED transformer outputs a constant voltage. The H series product has a great efficiency up to 94% of its rated power, and is able to operate between a temperature range of -40F to 194F assuming free air convection. The design of metal housing and IP65 ingress protection level make the H series suitable for both indoor and outdoor applications. This transformer works great with a wide selection of our LED dimmers/controllers to provide the power and dimming necessary for your LED lighting system.

Note:
All IP65-rated products for wet locations only, cannot be used in water or in places where water might accumulate.

LED Low Voltage Light System

Frequently bought together:

LED Strip Light
LED Controller
LED Power Supply
LED Aluminum Channel
All LED Strip Light All LED Controller All LED Transformer All Aluminum Channel

Instruction Video:

  • Model No: HLG-600W-24V
  • Input Voltage: 90-305VAC
  • Output Voltage: 24VDC, Constant Voltage
  • Wattage: 600W
  • Rated Current: 25A
  • Class: Class I

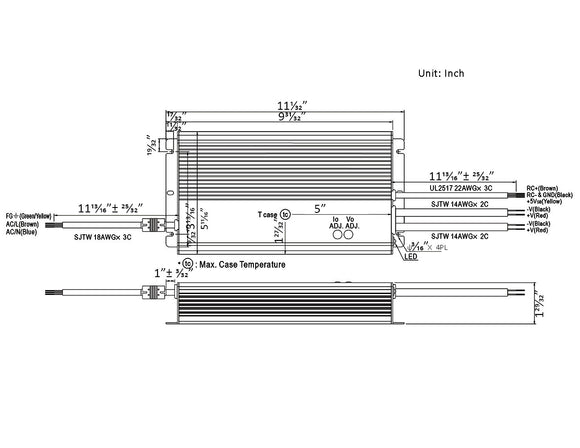

  • Dimension: L 11", W 5.7", H 1.9"
  • Work Environment / IP Rating : IP65
  • Installation Options: Surface Mounted
  • Working Temperature: Tcase= -40 ~ +194℉
  • Certification: RU
  • Warranty: 7 Years
  • Protection Method: Short circuit/Over voltage/Over current/ Over temperature

LED Transformer HLG-600W-24V Specification

Separate accessories are available

Power Cable

T Grid Mount Bracket
