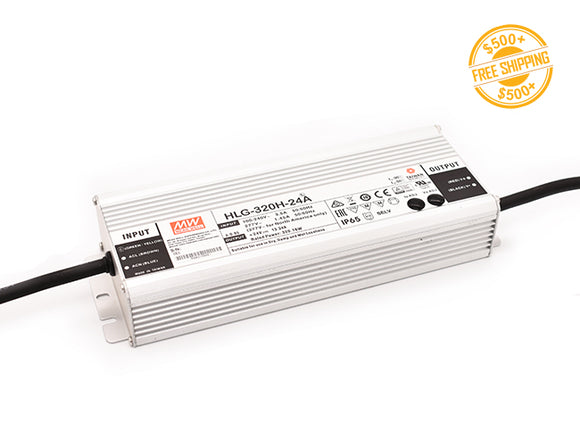

HLG-320H-24A Mean Well 320W Constant Voltage LED Driver

SKU: HLG-320W-24V

$163.37

The Mean Well XHLG-320-24 is a high-quality, UL Recognized constant voltage power supply designed for demanding outdoor and industrial applications, such as LED Cove lighting and LED strip lights. Offering a 24V output with 320W capacity, it provides reliable performance with short circuit, overload, and overvoltage protections. With a 7-year warranty, this durable power supply ensures long-term reliability. Its IP67-rated enclosure offers protection in harsh environments, making it an ideal, energy-efficient, and cost-effective solution for challenging applications.

Note:
All IP65-rated products for wet locations only, cannot be used in water or in places where water might accumulate.

LED Low Voltage Light System

Frequently bought together:

LED Strip Light
LED Controller
LED Power Supply
LED Aluminum Channel
All LED Strip Light All LED Controller All LED Transformer All Aluminum Channel

Instruction Video:

  • Model No: HLG-320W-24V
  • Input Voltage: 90-305 VAC
  • Output Voltage: 24VDC, Constant Voltage
  • Wattage: 320W
  • Rated Current: 13.34A
  • Class: Class I

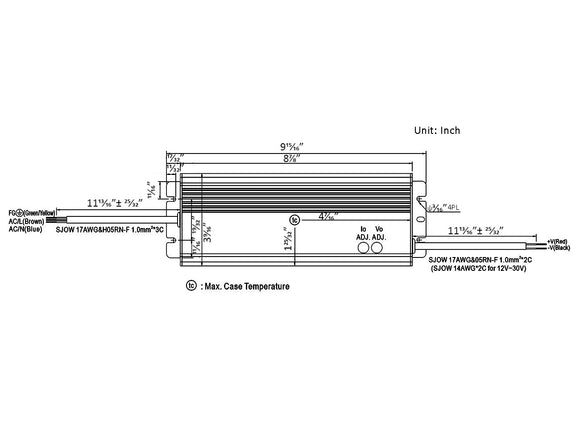

  • Dimension: L 9.9", W 3.5", H 1.7"
  • Work Environment / IP Rating : IP65
  • Installation Options: Surface Mounted
  • Working Temperature: Tcase= -40 ~ +194℉
  • Certification: RU
  • Warranty: 7 Years
  • Protection Method: Short circuit/Over voltage/Over current/ Over temperature

Mean Well 320W Constant Voltage + Constant Current LED Driver Specification

Separate accessories are available

Power Cable

T Grid Mount Bracket
